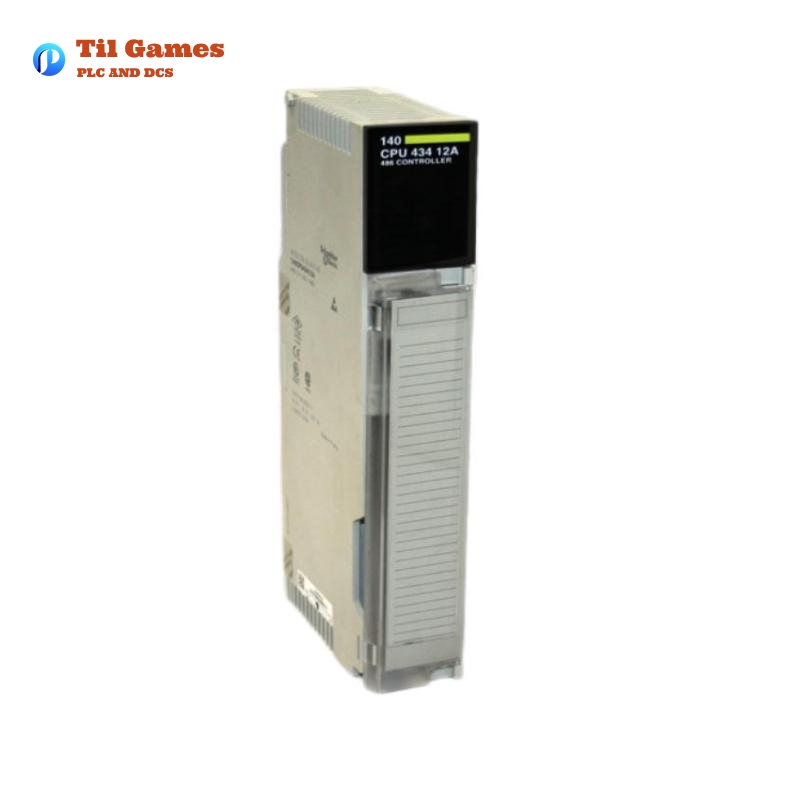

Schneider 140CPU43412A Unity processor

Schneider 140CPU43412A Unity processor

Manufacturer:Schneider

Product Number:140CPU43412A

Product Type:Unity processor

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.85 kg

Views:23

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/Schneider-140CPU43412A-1-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Schneider-140CPU43412A-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Schneider-140CPU43412A-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Schneider-140CPU43412A-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

The following table presents the technical specifications of the Schneider 140CPU43412A Unity Processor:

Attribute Details
Processor Type 80486 with Mathematical Coprocessor
Clock Frequency 66 MHz
Internal RAM 896 kB
Instruction Execution Time 0.1–0.5 ms per 1K instruction (LL984)
Watchdog Timer 250 ms
Clock Drift ±8 s/day (32–140 °F or 0–60 °C)
I/O Capacity (Distributed) 30 I / 32 O
I/O Capacity (Local) 64 I / 64 O
I/O Capacity (Remote) 64 I / 64 O
I/O Capacity per Network 500 I / 500 O (distributed)
Number of Drops (Distributed) 63
Number of Drops (Remote) 31
Number of Networks 2 Remote, 3 Distributed
Battery Type Lithium 7 µA / 210 µA
Battery Capacity 1.2 Ah
Battery Life 10 years
Communication Ports 1 Modbus Plus, 2 Modbus RS232
Communication Module Capacity 6 (NOM, NOE, CR, NMS)
Switch Function Key Switch
Certifications CE, FM Class 1 Division 2, cUL
Standards Compliance UL 508, CSA C22.2 No 142
Electrostatic Discharge Resistance 4 kV (contact, IEC 801-2), 8 kV (air, IEC 801-2)
Electromagnetic Field Resistance 9.1 V/m (10 V/m) at 80–2000 MHz (IEC 801-3)
Operating Temperature 32–140 °F (0–60 °C)
Storage Temperature -40–185 °F (-40–85 °C)
Relative Humidity 95% (non-condensing)
Operating Altitude ≤ 5000 m (16404.2 ft)
Bus Current Requirement 1250 mA
Module Format Standard
Dimensions (HxWxD) 103.9 × 40.3 × 250 mm
Net Weight 0.85 kg (1.87 lb)

Product Introduction

The Schneider 140CPU43412A Unity Processor is a high-performance programmable logic controller (PLC) designed for industrial automation applications. Featuring an 80486 processor with a 66 MHz clock speed and built-in mathematical coprocessor, this processor enables precise and efficient execution of control logic.

Equipped with 896 kB of internal RAM, the 140CPU43412A supports extensive memory for program execution. Its multiple communication interfaces, including Modbus Plus and Modbus RS232, ensure seamless integration with industrial networks.

With robust watchdog timer functions, extensive I/O handling capabilities, and high resistance to environmental conditions, the 140CPU43412A provides a reliable and scalable solution for complex control systems.


Product Applications

The Schneider 140CPU43412A Unity Processor is widely used in industrial automation and control applications, including:

  • Manufacturing Automation: Controls assembly lines, robotic systems, and automated production processes.
  • Process Control: Manages operations in industries like oil & gas, chemicals, and pharmaceuticals.
  • Energy and Utilities: Applied in power generation, distribution networks, and water treatment facilities.
  • Building Automation: Integrates with HVAC systems, lighting controls, and security systems.
  • Transportation and Infrastructure: Utilized in railway signaling, airport systems, and tunnel monitoring.
  • Material Handling: Used in conveyor systems, sorting machines, and automated storage solutions.

Product Advantages

The Schneider 140CPU43412A Unity Processor offers multiple advantages:

High Processing Speed – 66 MHz processor with a mathematical coprocessor enables fast execution of complex operations.

Large Memory Capacity – 896 kB internal RAM ensures efficient storage and program execution.

Multiple Communication Options – Modbus Plus and Modbus RS232 ports support seamless connectivity.

Scalability – Supports up to 500 I/O per network and multiple distributed networks for large-scale automation.

Industrial-Grade Durability – Certified for operation in extreme environments (-40°C to 85°C storage temperature).

Secure and Reliable – Watchdog timer and clock drift correction ensure system stability.

Compliance with Global Standards – Meets CE, UL 508, CSA C22.2 No 142 and FM Class 1 Div 2 certifications.

Long Battery Life – 10-year battery lifespan reduces maintenance requirements.


Latest News Headlines

  1. Schneider Electric Expands Unity PLC Range with Enhanced Features
  2. 140CPU43412A: The Future of Industrial Automation
  3. Industry Leaders Choose Schneider Unity PLCs for Smart Manufacturing
  4. Schneider’s Unity Series Sets New Standards in PLC Performance
  5. Energy Sector Adopts Schneider 140CPU43412A for Grid Automation
  6. Advanced Networking Capabilities in Schneider Unity Processors
  7. Enhancing Cybersecurity in Industrial PLCs – Schneider’s Approach
  8. 140CPU43412A Leads the Way in Next-Gen Factory Automation
  9. Schneider Unity Processors Achieve New Milestone in IoT Integration
  10. Optimizing Industrial Control with Schneider Electric’s Unity PLCs

Recommended Related Models

Here are 10 related models from the same series or category:

Model Description
140CPU31110 Entry-level Unity processor
140CPU53414A Advanced model with higher RAM
140CPU65150 High-speed processor for critical applications
140CPU67861 Redundant-capable Unity processor
140CPU65260 Enhanced processing for large automation networks
140CPU43212 Cost-effective variant with Modbus connectivity
140CPU67861A Advanced cybersecurity-enabled Unity processor
140CPU53414B Optimized for real-time industrial applications
140CPU67260 High-performance unit for extensive I/O handling
140CPU43412B Updated version with improved processing capabilities

Popular Schneider Models

Here are 10 popular Schneider models across various categories:

Model Category
TM241CE24R Compact PLC for small automation
M580-CPU Ethernet-based high-performance PLC
140NOE77101 Ethernet module for industrial networks
ATV930 High-power variable frequency drive (VFD)
Modicon M221 Cost-effective PLC for machine automation
Magelis HMI Touchscreen interface for industrial control
TeSys T Motor Advanced motor control solution
PowerLogic PM8000 Smart power monitoring unit
EcoStruxure Edge IoT-enabled industrial automation platform
Galaxy VX Industrial UPS system
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the primary function of the 140CPU43412A Unity Processor?

A: The 140CPU43412A is a high-performance processor module designed for industrial automation systems, enabling real-time control, data processing, and communication with field devices.

Q2: What programming software is compatible with this processor?

A: The 140CPU43412A can be programmed using ProWORX 32 and Concept software, which provide an intuitive interface for PLC programming and system configuration.

Q3: What types of industrial applications is this processor suitable for?

A: This processor is widely used in manufacturing automation, process control, energy management, building automation, and transportation systems, where high-speed processing and robust communication are required.

Q4: What are the communication capabilities of the 140CPU43412A?

A: It features 1 Modbus Plus port and 2 Modbus RS232 ports, allowing seamless integration with various industrial networks and devices.

Q5: How much memory does the processor have?

A: The internal RAM is 896 kB, providing ample space for program execution and data storage.

Q6: What is the processor’s execution speed for logic instructions?

A: The execution time ranges from 0.1 to 0.5 milliseconds per 1K instruction in LL984 logic.

Q7: How many I/O points can this processor handle?

A: The processor supports:

  • 30 inputs / 32 outputs (distributed)
  • 64 inputs / 64 outputs (local)
  • 64 inputs / 64 outputs (remote)
  • 500 inputs / 500 outputs per network (distributed)

Q8: What certifications and safety standards does the 140CPU43412A meet?

A: It is CE certified and complies with FM Class 1 Division 2, UL 508, and CSA C22.2 No. 142 standards, making it suitable for hazardous industrial environments.

Q9: What is the expected lifespan of the internal battery?

A: The lithium battery has a capacity of 1.2 Ah and an estimated lifespan of 10 years under normal operating conditions.

Q10: What are the environmental conditions for operation and storage?

A:

  • Operating temperature: 32–140 °F (0–60 °C)
  • Storage temperature: -40–185 °F (-40–85 °C)
  • Relative humidity: 95% (non-condensing)
  • Operating altitude: ≤ 5000 m (16,404 ft)
