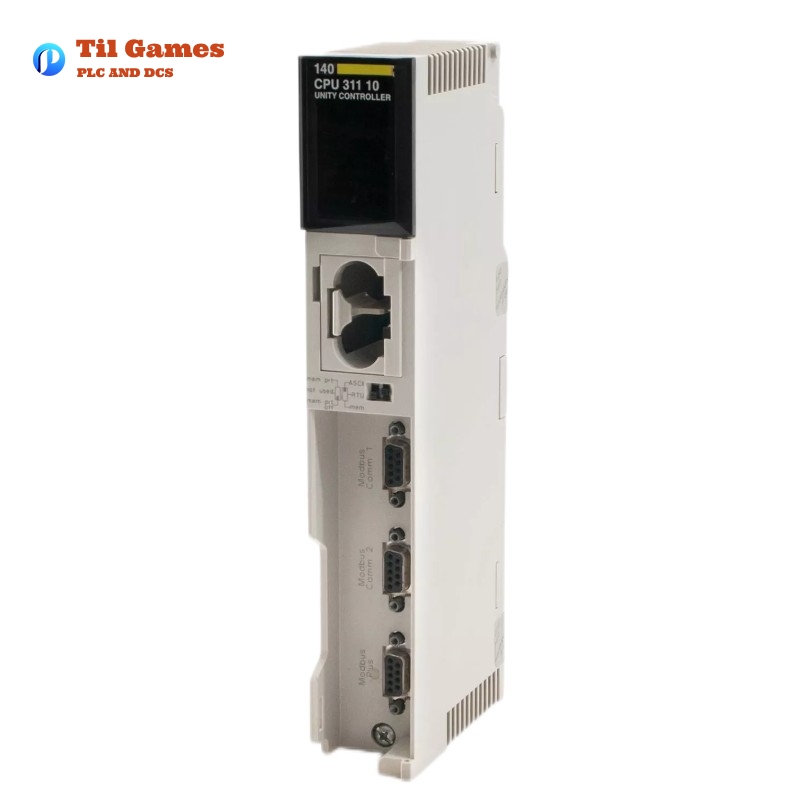

Schneider 140CPU31110 Unity processor

Schneider 140CPU31110 Unity processor

Manufacturer:Schneider

Product Number:140CPU31110

Product Type:Unity processor

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.748 kg

Views:20

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/140CPU31110-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Schneider-140CPU31110-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Schneider-140CPU31110-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Schneider-140CPU31110-3.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Attribute Details
Product Type Unity Processor
Clock Frequency 66 MHz
Number of Slots 2, 4, 6, 10, 16
Number of Racks 2 (local)
Number of Distributed I/O Stations 63 (Modbus Plus), 1, 3
Number of Remote I/O Stations 31 (S908 remote I/O), 0 (Ethernet remote I/O)
Discrete I/O Capacity Unlimited (27 slots max) – Local; 31744 inputs, 31744 outputs – Remote; 8000 inputs, 8000 outputs – Distributed (per Modbus Plus network)
Analog I/O Capacity Unlimited (27 slots max) – Local; 500 inputs, 500 outputs – Distributed (per Modbus Plus network); 1984 inputs, 1984 outputs – S908 remote I/O
Application-Specific I/O High-speed interrupt inputs, Counter, Accurate time stamping, Serial link
Number of Optional Modules 2 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Max Number of Connections 1 USB, 2 AS-Interface (distributed), 2 Ethernet TCP/IP (local), 2 Modbus Plus (local), 2 Modbus RS232/485 (Modbus/ASCII), 2 Profibus DP (local), 4 AS-Interface (remote)
Integrated Connection Type 1 Modbus Plus, 2 Modbus
Memory Internal RAM 548 kB
Execution Time Per Instruction 0.1-0.27 µs (floating points & fixed-point arithmetic), 0.12-0.585 µs (Boolean & word)
Instructions per ms 1.86 Kinst/ms (100% Boolean), 2.49 Kinst/ms (65% Boolean, 35% numerical)
System Overhead 0.2 ms (fast task), 1 ms (master task)
Bus Current Requirement 1800 mA
Local Signaling Modbus Plus communication active (1 green LED), Modbus communication active (1 green LED), CPU running (1 green LED), Power-up diagnostics passed (1 green LED), Write-protected memory (1 orange LED), Battery low (1 red LED), Modbus Plus communication error (1 red LED)
Electrical Connection 1 female SUB-D 9 connector (Modbus Plus), 2 female SUB-D 9 connectors (Modbus)
Dimensions (W x D x H) 103.9 × 40.3 × 250 mm
Weight 0.748 kg

Product Introduction

The Schneider 140CPU31110 Unity Processor is a powerful, high-performance central processing unit designed for use in Modicon Quantum automation systems. Featuring a 66 MHz clock speed, multiple communication ports, and expandability, it provides robust control capabilities for industrial applications. This processor supports both local and distributed I/O configurations, making it versatile for complex control architectures.

With built-in support for Modbus, Modbus Plus, Ethernet TCP/IP, and Profibus DP, the 140CPU31110 ensures seamless communication with other control system components. It offers advanced application handling, including high-speed interrupt processing and real-time data acquisition, making it ideal for demanding industrial automation environments.


Applications

The Schneider 140CPU31110 Unity Processor is widely used in industries that require high-speed, reliable automation control. Common applications include:

  1. Manufacturing & Assembly Lines – Ensures precise machine control and process automation.
  2. Oil & Gas Industry – Manages remote monitoring, process control, and safety systems.
  3. Water & Wastewater Treatment – Controls pump stations, filtration processes, and SCADA systems.
  4. Power Generation & Distribution – Supports energy management and grid control operations.
  5. Food & Beverage Processing – Provides automated control for production lines.
  6. Pharmaceutical Industry – Ensures regulatory compliance and high-precision manufacturing.
  7. Mining & Heavy Industry – Supports equipment automation and monitoring.
  8. Transportation & Logistics – Controls conveyor systems and automated warehouses.

Advantages

The Schneider 140CPU31110 Unity Processor offers several key advantages:

  • High Performance: 66 MHz CPU with fast instruction processing for efficient automation control.
  • Scalability: Supports up to 63 distributed I/O stations and 31 remote I/O stations for flexible system expansion.
  • Extensive Communication Options: Includes Modbus, Modbus Plus, Ethernet TCP/IP, and Profibus DP, ensuring seamless connectivity.
  • Robust I/O Handling: 31744 discrete I/O points and 1984 analog I/O points for large-scale automation systems.
  • Reliable Operation: Built-in error detection and diagnostics, including LED indicators for real-time system status.
  • Real-Time Processing: Supports high-speed interrupts, accurate time stamping, and counter applications.
  • Compact Design: 103.9 × 40.3 × 250 mm, lightweight (0.748 kg) for easy installation in control cabinets.
  • Long-Term Support: Part of Schneider’s Quantum automation product line, ensuring availability and reliability.

Recent News & Updates

  1. “Schneider Electric Expands Unity Processor Line for Enhanced Automation Capabilities”
  2. “Modicon Quantum Series: Future-Ready Processors for Industrial Control”
  3. “How Schneider Electric is Revolutionizing Industrial Automation with the 140CPU31110”
  4. “Advancements in Modicon Quantum Series for Improved Connectivity and Performance”
  5. “Schneider Electric Announces Latest Firmware Update for Unity Processors”

Recommended Related Models

Model Description
140CPU11302 Entry-level Quantum processor with basic functionality.
140CPU53414B Mid-range processor with Ethernet and enhanced memory.
140CPU67861 High-performance processor with redundant capability.
140CPU53414A Supports large-scale automation with multiple communication options.
140CPU67160 Advanced Quantum processor with extensive I/O capacity.
140CPU65150 Optimized for motion control and real-time applications.
140CPU31110A Enhanced version with improved processing power.
140CPU53414C Features additional security and cybersecurity protections.
140CPU67260 Designed for high-speed control applications.
140CPU65260 Offers dual Ethernet ports for enhanced networking.

Popular Schneider Models

Model Description
BMENOC0311 Ethernet communication module for Modicon M580.
TM221CE40T Compact PLC with embedded Ethernet and serial ports.
TSX3722001 Entry-level PLC with basic automation features.
140CPU53414B Popular Modicon Quantum processor.
ATV630D75N4 Altivar 630 series drive for motor control.
BMEXBP0400 Backplane module for Modicon M580.
LMC058LF42 Motion controller for high-precision applications.
XCSPL5930 Safety interlock switch for industrial safety systems.
HMIGXU5512 Touchscreen HMI for intuitive machine operation.
STBNIP2311 Network interface module for distributed I/O.
FAQ

Frequently Asked Questions (FAQ)

Q1: What control systems is the 140CPU31110 processor suitable for?

A1: This processor is designed for Schneider Modicon Quantum automation control systems and is widely used in industries such as manufacturing, energy, petrochemicals, and water treatment.

Q2: Does the 140CPU31110 support Ethernet communication?

A2: The processor itself does not have an Ethernet port, but Ethernet communication can be achieved by using optional Ethernet communication modules (such as the 140NOE771 series).

Q3: What is the storage capacity of this processor?

A3: The 140CPU31110 comes with 548 KB of internal RAM, which is used for storing programs and data.

Q4: How many I/O stations does the 140CPU31110 support?

A4:

  • Local I/O stations: Up to 2 racks
  • Distributed I/O stations (Modbus Plus): Up to 63
  • Remote I/O stations (S908): Up to 31

Q5: Does the 140CPU31110 support redundancy?

A5: This model does not support CPU redundancy. If redundancy is required, consider 140CPU67160 or 140CPU67861.

Q6: What is the execution time of this processor?

A6:

  • Boolean operations: 0.12~0.585 µs
  • Floating-point operations: 0.1~0.27 µs
  • Instruction execution rate: 1.86K ~ 2.49K instructions/ms

Q7: Does the 140CPU31110 require an additional power supply module?

A7: Yes, this processor requires a Quantum series power supply module (such as 140CPS11420) with a total current requirement of 1800mA.

Q8: Does this processor have fault diagnostics?

A8: Yes, the processor is equipped with LED status indicators to monitor communication status, battery levels, operational state, and fault indications, making it easier to diagnose issues.

Q9: What programming software is compatible with the 140CPU31110?

A9: It is compatible with Schneider Unity Pro programming software and supports IEC 61131-3 languages (Ladder Logic, Structured Text, Function Blocks, etc.).

Q10: How can the 140CPU31110 integrate with a SCADA system?

A10: This processor can integrate with a SCADA system via Modbus, Modbus Plus, or Ethernet TCP/IP (requires an expansion module) for remote monitoring and data acquisition.
