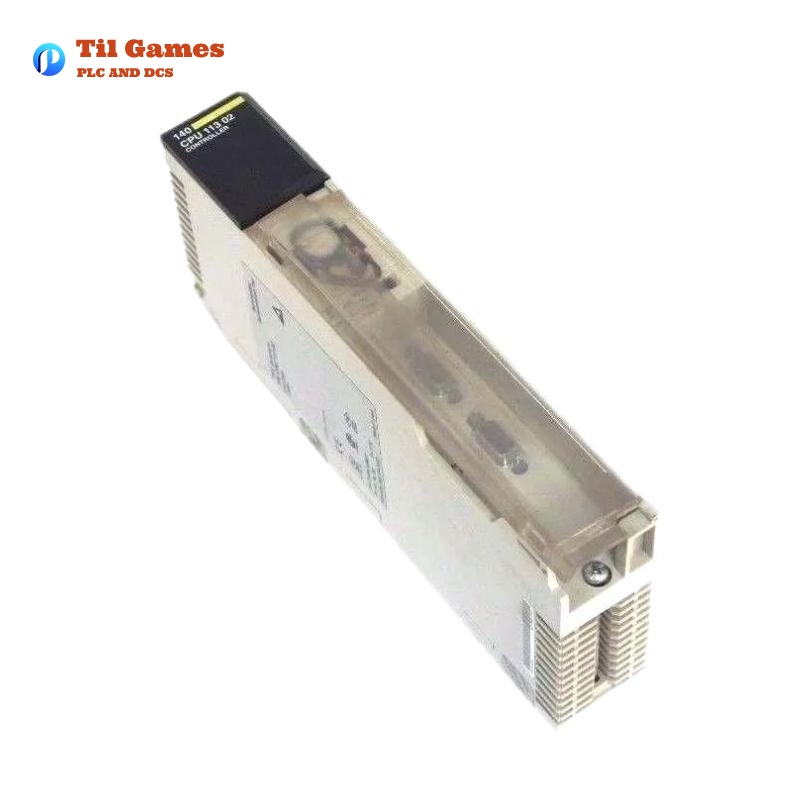

Schneider 140CPU11302 Concept processor

Schneider 140CPU11302 Concept processor

Manufacturer:Schneider

Product Number:140CPU11302

Product Type:Concept processor

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.65 kg

Views:22

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/140CPU11302-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140CPU11302-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140CPU11302-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140CPU11302-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Specification Details
Product Type Processor
Software Name ProWORX 32, Concept
Processor Name 80186
Mathematical Coprocessor Without
Clock Frequency 20 MHz
Memory Description Internal RAM 109 kB
Execution Time 0.3 – 1.4 ms per 1K LL984 instruction
Watchdog Timer 250 ms
Clock Drift ±8 s/day (0…60 °C)
I/O Words (Distributed) 30 Inputs / 32 Outputs
I/O Words (Local Max) 64 Inputs / 64 Outputs
I/O Words (Remote) 64 Inputs / 64 Outputs
I/O Words per Network 500 Inputs / 500 Outputs
Number of Drops (Distributed) 63
Number of Drops (Remote) 31
Number of Networks (Remote) 2
Number of Networks (Distributed) 3
Battery Type Lithium
Battery Consumption 5 µA (standby), 110 µA (operation)
Battery Capacity 1.2 Ah
Battery Life 10 years
Communication Ports 1 x Modbus RS232, 1 x Modbus Plus
Communication Module Capacity 2 NOM, NOE, CR, NMS
Switch Function Without key switch
Certification Marks CE
Bus Current Requirement 780 mA
Module Format Standard
Product Certifications cUL, FM Class 1 Division 2
Standards Compliance UL 508, CSA C22.2 No 142
ESD Resistance 4 kV (contact), 8 kV (air) – IEC 801-2
Electromagnetic Field Resistance 9.1 V/m (10 V/m) 80–2000 MHz – IEC 801-3
Operating Temperature 32…140 °F (0…60 °C)
Storage Temperature -40…185 °F (-40…85 °C)
Relative Humidity 95% (non-condensing)
Operating Altitude ≤ 5000 m (16404.2 ft)
Dimensions 103.9 × 40.3 × 250 mm
Weight 0.65 kg

Product Introduction

The Schneider 140CPU11302 Concept Processor is a high-performance central processing unit designed for industrial automation applications. It is part of the Modicon Quantum series and is engineered to provide efficient and reliable control in complex automation systems.

With a 20 MHz clock frequency, 109 kB of internal RAM, and LL984 execution times ranging from 0.3 to 1.4 ms per 1K instruction, this processor ensures real-time control and high-speed data processing. The device supports distributed, local, and remote I/O configurations, making it highly scalable for various industrial applications.

The 140CPU11302 is certified for hazardous locations (FM Class 1, Division 2) and complies with global standards such as UL 508 and CSA C22.2 No 142. Additionally, it features two communication ports: Modbus RS232 and Modbus Plus, allowing seamless integration into industrial networks.


Applications

The Schneider 140CPU11302 processor is widely used in industrial automation, particularly in the following applications:

  1. Manufacturing Automation – Controls production lines and automated machinery with real-time processing capabilities.
  2. Energy Management Systems – Used in power plants and energy distribution networks for monitoring and control.
  3. Water and Wastewater Treatment – Manages pump stations, filtration systems, and water distribution.
  4. Oil and Gas Industry – Implements process control in refining and petrochemical applications.
  5. Building Automation – Controls HVAC, lighting, and security systems in commercial buildings.
  6. Food and Beverage Processing – Ensures consistent quality control and production efficiency.
  7. Material Handling and Logistics – Manages conveyor belts, robotic arms, and warehouse automation.
  8. Automotive Manufacturing – Used in assembly lines and robotic welding stations.
  9. Mining and Metallurgy – Monitors and controls extraction and processing systems.
  10. Pharmaceutical Industry – Ensures compliance with strict regulatory requirements for production.

Advantages

  • High Processing Speed – 20 MHz clock frequency ensures efficient data processing.
  • Robust Communication Options – Supports Modbus RS232 and Modbus Plus, facilitating network integration.
  • Scalable I/O Capabilities – Supports up to 500 input/output words per network, ideal for large-scale industrial automation.
  • Reliable Battery Backup10-year lithium battery life ensures data retention in case of power failures.
  • Certified for Harsh EnvironmentsFM Class 1 Division 2 certification allows use in hazardous locations.
  • Compact DesignSmall footprint (103.9 × 40.3 × 250 mm, 0.65 kg) makes it easy to install in control panels.
  • Strong EMC ProtectionIEC 801-2 and IEC 801-3 compliance ensures resistance to electrostatic and electromagnetic interference.
  • Extended Operating Conditions – Works efficiently in temperatures ranging from -40 to 85°C during storage.
  • Multiple Network Support – Enables communication over three distributed and two remote networks.
  • Seamless Integration – Fully compatible with ProWORX 32 and Concept programming software.

Latest News Titles About This Product

  1. Schneider Expands Quantum PLC Series with Enhanced Communication Features
  2. Schneider 140CPU11302: A Game-Changer for Industrial Automation
  3. How the 140CPU11302 Processor Boosts Efficiency in Manufacturing
  4. Exploring the Role of Quantum PLCs in Energy Management Systems
  5. Schneider Electric Enhances Modbus Plus Capabilities in Latest Processors
  6. Innovative Solutions for Water Treatment: The Role of 140CPU11302
  7. The Future of Industrial Automation with Schneider Quantum Processors
  8. Reducing Downtime with Schneider’s Advanced PLC Technology
  9. How Schneider’s Quantum PLCs Improve Safety in Hazardous Locations
  10. New Software Updates for ProWORX 32 Improve 140CPU11302 Integration

Recommended Related Models

Model Description
140CPU53414B High-performance Quantum CPU
140CPU65150 Advanced Modicon Quantum processor
140CPU43412 Standard Quantum PLC processor
140CPU67260 High-end Quantum processor with Ethernet
140CPU31110 Entry-level Quantum processor
140CPU65160 Redundant Quantum processor
140CPU67160 High-speed Quantum CPU
140CPU53414A Medium-range Quantum processor
140CPU65260 Advanced model with dual Ethernet
140CPU53414 Legacy Quantum processor

Popular Schneider Models

Model Description
BMXP342020 Mid-range M340 processor
BMXP342030 Advanced M340 processor with Ethernet
TSX3722001 Compact PLC for small applications
TSX572623 High-performance Modicon Premium CPU
TM241CE24T Machine automation controller
TM258LF42DR Modular PLC for complex control applications
STBACO0125 Modicon STB analog output module
ATV320U40N4C Variable speed drive
TSXAEY1600 Analog input module for Modicon Premium
LMC058LF42 Motion controller for machine automation
FAQ

FAQ (Frequently Asked Questions)

Q1: What software is compatible with the Schneider 140CPU11302 processor?

A1: The 140CPU11302 processor is compatible with ProWORX 32 and Concept programming software, both of which provide a user-friendly interface for configuring and managing the processor.

Q2: Does the 140CPU11302 processor have built-in Ethernet connectivity?

A2: No, the 140CPU11302 processor does not have built-in Ethernet support. However, you can use external communication modules, such as NOM or NOE modules, to add Ethernet functionality.

Q3: What is the power consumption of the 140CPU11302 processor?

A3: The bus current requirement of the processor is 780 mA, ensuring stable operation within Modicon Quantum systems.

Q4: What are the communication ports available on the 140CPU11302 processor?

A4: This processor includes one Modbus RS232 port and one Modbus Plus port, enabling seamless integration into Modbus-based automation networks.

Q5: What is the lifespan of the backup battery in the 140CPU11302 processor?

A5: The lithium backup battery has a capacity of 1.2 Ah and an estimated lifespan of 10 years, ensuring data retention in the event of power loss.

Q6: What are the environmental conditions for operating the 140CPU11302 processor?

A6: The processor operates within a temperature range of 32°F to 140°F (0°C to 60°C) and supports 95% relative humidity (non-condensing). It can also be stored in temperatures ranging from -40°F to 185°F (-40°C to 85°C).

Q7: How many I/O words does the 140CPU11302 processor support?

A7: The processor supports a maximum of 64 input/64 output words locally and 500 input/500 output words per network when used in a distributed system.

Q8: Is the 140CPU11302 processor certified for hazardous environments?

A8: Yes, the processor is FM Class 1 Division 2 certified, making it suitable for use in hazardous industrial locations.

Q9: Can this processor be used for redundant control systems?

A9: No, the 140CPU11302 does not support redundancy. For redundant applications, higher-end models such as 140CPU65160 or 140CPU67260 should be considered.

Q10: What is the execution time for instructions on this processor?

A10: The execution time for LL984 instructions ranges between 0.3 ms and 1.4 ms per 1K instructions, making it efficient for industrial automation processes.
