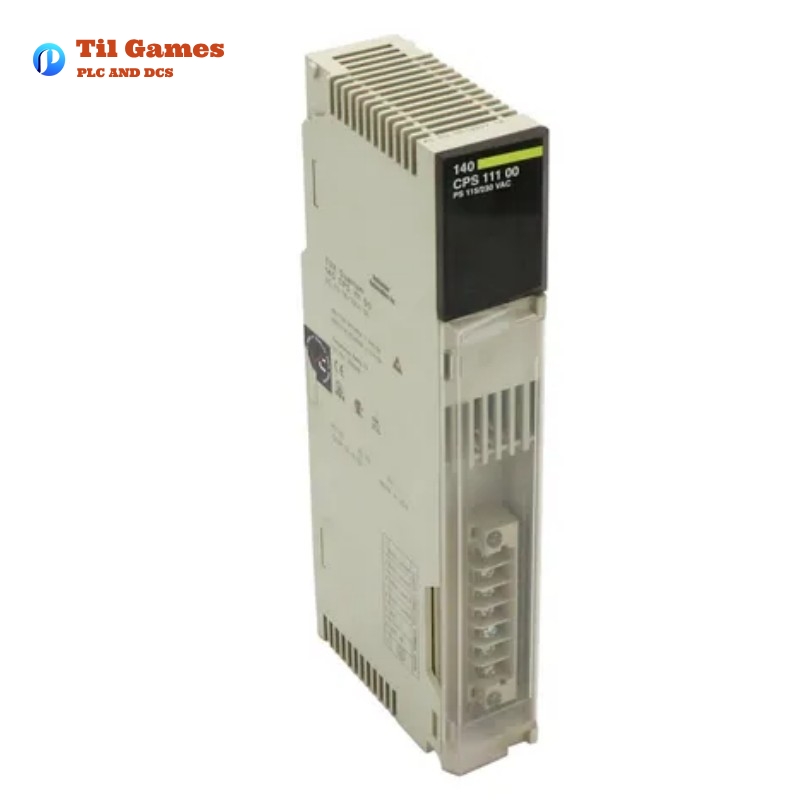

Schneider 140CPS11100 Power Supply Module

Schneider 140CPS11100 Power Supply Module

Manufacturer:Schneider

Product Number:140CPS11100

Product Type:Power Supply Module

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.65 kg

Views:23

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/140CPS11100-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140CPS11100-5.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140CPS11100-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140CPS11100-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Schneider 140CPS11100 Power Supply Module


Product Parameters

Parameter Specification
Product Type Power Supply Module
Power Supply Type Standalone, Complementary
Input Voltage 120–230 V AC (100–276 V AC), 47–63 Hz
Input Current 200 mA @ 230 V / 400 mA @ 115 V
Inrush Current 10 A @ 230 V / 20 A @ 115 V
Rated Power 50 VA
Fuse Rating 1.5 A, Slow-Blow
Harmonic Distortion ≤10% of Fundamental RMS Value
Output Voltage 5.1 V DC
Output Current 3 A (Standalone)
Overvoltage Protection Internal
Overload Protection Internal
Power Dissipation 2 + (3 × Iout) W (Iout in A)
Local Signaling PWR OK LED (Green)
Certifications CE, cUL, FM Class 1 Division 2
ESD Resistance 4 kV Contact / 8 kV Air (IEC 801-2)
EMC Resistance 9.1 V/m (10 V/m), 80–2000 MHz (IEC 801-3)
Operating Temperature 32–140°F (0–60°C)
Storage Temperature -40–185°F (-40–85°C)
Humidity 95% (Non-Condensing)
Operating Altitude ≤16,404.2 ft (5,000 m)
Dimensions 103.9 × 40.3 × 250 mm (H × W × D)
Weight 0.65 kg

Product Introduction

The Schneider 140CPS11100 is a high-performance standalone power supply module designed for industrial automation and control systems. It delivers stable 5.1 V DC output with a 3 A standalone current, ensuring reliable power distribution in harsh environments. Compliant with UL 508, CSA C22.2, and FM Class 1 Division 2 standards, it features internal overvoltage/overload protection, low harmonic distortion, and robust resistance to electrostatic discharge (ESD) and electromagnetic interference (EMI). The compact design, wide operating temperature range (-40–85°C storage), and LED status indicator make it ideal for critical applications requiring durability and precision.


Applications

  • Industrial automation systems (PLCs, HMIs, motor controls).
  • Process control and monitoring equipment.
  • Safety systems in hazardous environments (FM Class 1 Division 2 certified).
  • Machinery requiring stable low-voltage DC power.
  • Backup power solutions for critical infrastructure.

Product Advantages

  1. High Reliability: Built-in protection mechanisms ensure safe operation under voltage fluctuations or overloads.
  2. Wide Input Range: Supports 100–276 V AC input, suitable for global voltage standards.
  3. Compact Design: Space-saving form factor (250 mm depth) for easy integration into control panels.
  4. Robust Compliance: Meets UL, CSA, and FM safety certifications for industrial use.
  5. Extended Temperature Range: Operates reliably in extreme temperatures (-40–85°C storage).

Latest News Headline

“Schneider Electric’s 140CPS11100 Power Module Wins 2023 Industrial Innovation Award for Durability and Efficiency”


Recommended Related/Series Models

Model Number Description Output Voltage Output Current Key Features
140CPS21400 Dual Output PSU 24 V DC 5 A Redundant design, DIN rail mounting
140CPS53100 High-Current PSU 5 V DC 10 A For heavy-duty applications
140CPS21100 Compact Standalone PSU 12 V DC 3 A Low-profile, 85°C operation
140CPS11400 Wide-Range Input PSU 5 V DC 8 A 85–264 V AC input, overload protection
140CPS53110 Redundant PSU 24 V DC 20 A Hot-swappable, modular design
140CPS21410 DIN Rail PSU 48 V DC 2.5 A High efficiency (92%), IP20 rated
140CPS53120 Medical-Grade PSU 12 V DC 6 A IEC 60601-1 certified, low noise
140CPS53130 High-Altitude PSU 5 V DC 3 A Optimized for 6,000 m altitude operation
140CPS21110 Energy-Efficient PSU 24 V DC 4 A Eco-design, 95% efficiency
140CPS53140 Explosion-Proof PSU 5 V DC 2 A ATEX/IECEx certified for hazardous areas

Top 10 Popular Schneider Models

Model Number Category Key Parameters Dimensions (mm) Weight
Modicon M580 PLC Programmable Logic Controller 1 GHz CPU, 64 MB RAM, Ethernet/IP 150 × 110 × 75 1.2 kg
Altivar Process ATV900 Variable Speed Drive 0.75–1,500 kW, IP55, built-in safety 200 × 300 × 220 8.5 kg
Acti9 iC60 Circuit Breaker Circuit Protection 6 kA, 1–63 A, 1-4 poles 90 × 70 × 80 0.3 kg
TeSys D Contactor Motor Starter 9–32 A, 24–690 V AC/DC 45 × 55 × 85 0.4 kg
Harmony XB5R Push Button HMI 22.5 mm mounting, IP69K, LED backlight 22.5 × 22.5 × 30 0.1 kg
PowerLogic PM8000 Power Meter 0.5% accuracy, Modbus, 480 V AC 96 × 96 × 70 0.5 kg
Uninterruptible Power Supply (UPS) Galaxy VS UPS System 10–100 kVA, 97% efficiency, lithium-ion 600 × 800 × 1,200 250 kg
Clipsal C-Bus Relay Automation 16 A, DIN rail, 2–4 channels 90 × 36 × 65 0.2 kg
Telemecanique XPSAF Safety Relay Safety System SIL 3, 8 contacts, 24 V DC 22.5 × 99 × 114 0.25 kg
Altivar Machine ATV320 Drive System 0.18–15 kW, IP20, embedded Ethernet 150 × 73 × 155 2.1 kg
FAQ

FAQ (Q&A)

Q1: What is the input voltage range of the 140CPS11100?
A1: 100–276 V AC (47–63 Hz), compatible with 120–230 V AC mains.

Q2: Can this module operate in parallel for redundancy?
A2: No, it is designed for standalone use. For redundancy, consider the 140CPS53110.

Q3: What certifications does it hold for hazardous environments?
A3: FM Class 1 Division 2 and cUL certifications.

Q4: Is the output voltage adjustable?
A4: No, the 5.1 V DC output is fixed.

Q5: What is the maximum ambient temperature for operation?
A5: 140°F (60°C).

Q6: Does the LED indicate fault conditions?
A6: No, the green LED only signals “Power OK.”

Q7: Can it be mounted on a DIN rail?
A7: Yes, it supports standard DIN rail installation.

Q8: What EMC standards does it comply with?
A8: IEC 801-3 (9.1 V/m at 80–2000 MHz).

Q9: What is the warranty period?
A9: Schneider typically offers a 2-year warranty for industrial modules.

Q10: Is it suitable for outdoor use?
A10: No, it requires installation in a protected enclosure (non-weatherproof design).
