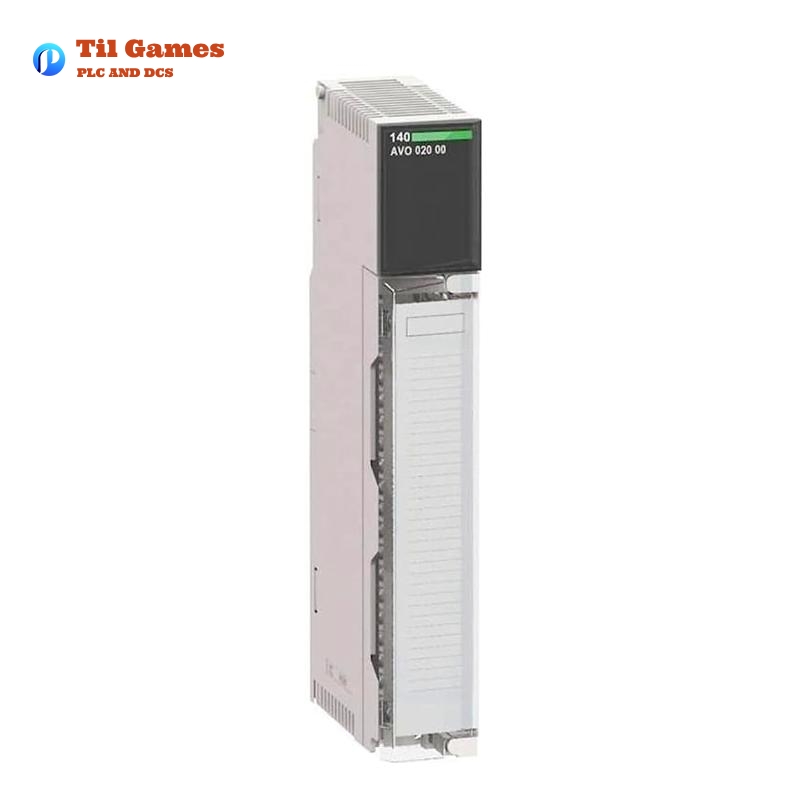

Schneider 140AVO02000 Analog Output Module

Schneider 140AVO02000 Analog Output Module

Manufacturer:Schneider

Product Number:140AVO02000

Product Type:Analog Output Module

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.3 kg

Views:31

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/140AVO02000-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140AVO02000-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140AVO02000-4-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140AVO02000.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Attribute Details
Range of Product Modicon Quantum automation platform
Product or Component Type Analog Output Module
Analog Output Number 4
Addressing Requirement 4 output words
Analog Output Range ±10 V (≥1000 Ohm, bipolar voltage)
±5 V (≥500 Ohm, bipolar voltage)
0…10 V (≥1000 Ohm, unipolar voltage)
0…5 V (≥500 Ohm, unipolar voltage)
Analog Output Resolution 12 bits
Analog Output Current -10 to 10 mA
Source Resistance 0.1 Ohm
Maximum Cable Distance 400 m (1312.3 ft)
Absolute Accuracy Error ±0.15% of full scale at 25°C (77°F)
Linearity ±1 LSB
Accuracy Drift (Temperature) 0.003% of full scale/°C (unipolar)
0.004% of full scale/°C (bipolar)
0.005% of full scale/°C max (unipolar)
0.007% of full scale/°C max (bipolar)
Isolation Between Channels 500 V for 1 min (47-63 Hz AC)
Isolation (Channel & Bus) 780 V for 1 min AC
Update Time 3 ms
Setting Time 700 µs (to ±0.1% of final value max)
Bus Current Requirement 700 mA
Max Power Dissipation 4.5 W
Associated Fuse Rating 0.063 mA, 3 AG fast blow, 250 V
Marking CE
Local Signaling 1 Green LED (Bus Communication Active)
1 Red LED (External Fault)
4 Green LEDs (Channels Active)
4 Red LEDs (Channel Fault)
Module Format Standard
Dimensions (W × H × D) 103.9 × 40.3 × 250 mm
Weight 0.3 kg (0.7 lb)
Certifications FM Class 1 Division 2, cUL
Standards UL 508, CSA C22.2 No 142
Electromagnetic Resistance 9.1 V/m (10 V/m) 80–2000 MHz IEC 801-3
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative Humidity 95% (non-condensing)
Operating Altitude ≤5000 m (16404.2 ft)

Product Introduction

The Schneider 140AVO02000 Analog Output Module is a high-precision, multi-range analog output module designed for the Modicon Quantum automation platform. It features four independent analog outputs, capable of operating in both bipolar and unipolar voltage ranges, ensuring compatibility with a variety of industrial applications.

With a 12-bit resolution, low drift accuracy, and a fast update time of 3 ms, this module provides reliable and stable performance for demanding industrial environments. Its high isolation levels between channels and between the module and the system bus ensure robust operation and protection against electrical disturbances.

The 140AVO02000 is widely used in industries such as manufacturing, energy, water treatment, and process automation, where precise voltage output control is essential.


Product Applications

  • Industrial Automation: Provides accurate voltage signals for process control and machine automation.
  • Energy Sector: Used in power plants and renewable energy systems for voltage regulation.
  • Water and Wastewater Management: Helps in monitoring and controlling water treatment processes.
  • Chemical Processing: Ensures precision in chemical reactions requiring controlled voltage outputs.
  • Pharmaceutical Manufacturing: Used for maintaining critical environmental conditions.
  • Food and Beverage Industry: Regulates automated machinery and quality control systems.
  • Oil and Gas Industry: Ensures proper functioning of instrumentation in hazardous environments.

Product Advantages

  1. High Accuracy and Stability – With a ±0.15% full-scale accuracy at 25°C and minimal temperature drift, this module ensures precise output voltage control.

  2. Multiple Voltage Ranges – Supports both bipolar and unipolar voltage outputs, providing flexibility for different application needs.

  3. Fast Response Time – A 3 ms update time and 700 µs setting time enable quick adjustments in dynamic industrial processes.

  4. Strong Electrical Isolation – Ensures 500V channel-to-channel isolation and 780V channel-to-bus isolation, improving system safety.

  5. Reliable Operation in Harsh Environments – Certified for FM Class 1 Division 2, making it suitable for hazardous locations.

  6. Compact and Lightweight – With a small footprint (103.9 × 40.3 × 250 mm, 0.3 kg), it is easy to integrate into control cabinets.

  7. LED Status Indicators – Provides quick diagnostic insights for bus communication, external faults, channel activity, and faults.


Latest News About Schneider 140AVO02000

  1. “Schneider Expands Quantum Series with Advanced Analog Modules for Industrial Automation”
  2. “Enhanced Performance: Schneider Introduces Upgraded Analog Output Modules”
  3. “How the 140AVO02000 Module is Revolutionizing Process Control”
  4. “Schneider Electric’s Latest Innovations in Modicon Quantum Automation”
  5. “Industrial Automation Experts Praise Schneider’s Analog Output Modules”

Recommended Similar or Related Models

Model Description
140ACO13000 8-Channel Analog Output Module
140ACI03000 16-Channel Analog Input Module
140ACO02000 2-Channel Analog Output Module
140AII33000 Intrinsically Safe Temperature Input Module
140AIO33000 Intrinsically Safe Analog Output Module
140ATI03000 8-Channel Thermocouple Input Module
140XBP00600 6-Slot Quantum Backplane
140CPU65150 Modicon Quantum Processor Module
140CPS12420 Quantum Power Supply Module
140NOC78000 Ethernet Communication Module

Popular Schneider Models

Model Description
140CPU67160 Quantum Hot Standby CPU
140DDI35300 32-Channel Digital Input Module
140DAI55300 32-Channel Digital Input (24V DC)
140NOE77101 Quantum Ethernet Module
140CRA31200 Quantum Remote I/O Adapter
140CPS22400 Redundant Power Supply Module
140CPU53414A Quantum CPU with Ethernet
140XTS00200 Quantum Terminal Strip
140CHS11000 Hot Standby System Module
140DRC83000 Quantum Resolver Module
FAQ

FAQs (Frequently Asked Questions)

Q1: What is the primary function of the 140AVO02000 Analog Output Module?
A1: It provides precise voltage output signals for process control applications.

Q2: What voltage ranges does it support?
A2: It supports ±10V, ±5V (bipolar) and 0-10V, 0-5V (unipolar).

Q3: Is this module compatible with all Modicon Quantum systems?
A3: Yes, it is designed for seamless integration with Modicon Quantum PLCs.

Q4: What is the update time of this module?
A4: The update time is 3 ms.

Q5: Does it have electrical isolation?
A5: Yes, it features 500V isolation between channels and 780V isolation between channels and bus.

Q6: What industries use this module?
A6: It is used in energy, automation, water treatment, oil & gas, and manufacturing.

Q7: What certifications does it have?
A7: It is FM Class 1 Division 2 and cUL certified.

Q8: What is its maximum power dissipation?
A8: It consumes 4.5W of power.

Q9: Can it be used in hazardous locations?
A9: Yes, it meets FM Class 1 Division 2 requirements.

Q10: What is its operating temperature range?
A10: It operates between 0 to 60°C (32 to 140°F).
