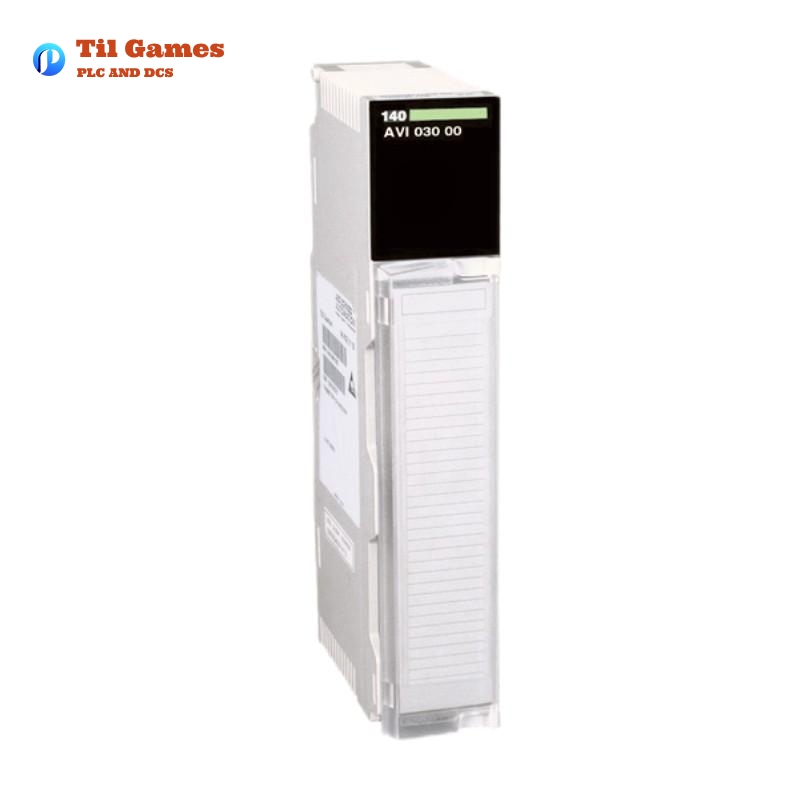

Schneider 140AVI03000 Analog Input Module

Schneider 140AVI03000 Analog Input Module

Manufacturer:Schneider

Product Number:140AVI03000

Product Type:Analog Input Module

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.3 kg

Views:29

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/140AVI03000-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140AVI03000-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140AVI03000-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140AVI03000-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview
The Schneider 140AVI03000 is a high-performance Analog Input Module designed for use in the Modicon Quantum automation platform. This module is engineered to provide a versatile, reliable, and precise interface for various analog input types, ensuring accurate data collection and integration into your control system. It supports both unipolar and bipolar signals across a range of voltage and current inputs, making it ideal for a wide range of industrial applications. Its rugged construction and compliance with multiple international standards ensure durability in harsh environments, making it suitable for both standard and critical operations.


Applications

  • Industrial Automation Systems: The 140AVI03000 is widely used in industrial automation applications where precise analog measurements are essential, such as in process control and monitoring systems.
  • Measurement Systems: It is ideal for applications that require accurate analog data acquisition, such as temperature, pressure, or flow measurement systems.
  • Manufacturing Control: Used in automated production lines for controlling and monitoring machines and systems that require real-time input from sensors.
  • Energy Management: Applicable in systems monitoring voltage, current, and other energy-related variables to ensure optimal energy usage.

Advantages

  • High Precision: With 16-bit resolution and a low error rate, this module provides high accuracy for critical analog measurements.
  • Wide Input Range: Supports multiple input types, including bipolar and unipolar current and voltage signals, making it adaptable to a wide range of devices and sensors.
  • Enhanced Signal Quality: The single-pole low-pass filter ensures optimal signal quality, reducing noise and improving the reliability of the data.
  • Robust Isolation: The module provides robust isolation between channels and the bus (500 Vrms AC, 750 V DC), which improves system stability and protects against electrical noise or surges.
  • Compact and Durable Design: The module’s small form factor (103.9 × 40.3 × 250 mm) and lightweight construction (0.3 kg) make it ideal for tight spaces without compromising on performance.
  • Compliance with International Standards: Meets UL 508, CSA C22.2 No 142 standards and is certified for FM Class 1 Division 2 environments, ensuring it meets rigorous safety and quality standards for industrial use.
  • Environmentally Robust: Can operate in temperatures ranging from 0 to 60 °C and in high altitudes (up to 5000 meters), with resistance to electromagnetic fields and electrostatic discharge.

Technical Specifications

Specification Details
Product Type Analog Input Module
Input Type Differential
Number of Analog Inputs 8
Filter Type Single pole low pass – 3 dB at 847 Hz +/- 20 %
Resolution 16 bits (+/- 10 V, +/- 5 V, 0…10 V, 0…20 mA, 0…5 V)
Linear Measuring Range (input range) x 1.024 mA or V
Input Impedance > 20 Ohm voltage; 250 MOhm +/- 0.03 %
Maximum Input 50 V DC / 25 mA
Accuracy +/- 0.03 % / +/- 0.05 % of full scale
Linearity Error +/- 0.008 %
Accuracy Drift (Temp.) +/- 0.0015 % of full scale/°C
Common Mode Rejection > – 80 dB 60 Hz
Isolation Between Channels 135 Vrms AC / 200 V DC
Isolation Between Channels & Bus 500 Vrms AC 60 s / 750 V DC
Update Time 10 ms
Fault Type Broken wire (4…20 mA), Overtaking scale (1…5 V)
Power Dissipation 2.2 W
Bus Current Requirement 280 mA
Module Format Standard
Net Weight 0.3 kg (0.7 lb)
Dimensions (H x W x D) 103.9 × 40.3 × 250 mm
Environment Resistance 4 kV contact / 8 kV air ESD, 9.1 V/m 80-1000 MHz EMC
Operating Temperature 0…60 °C
Storage Temperature -40…85 °C
Operating Humidity 95 % without condensation
Operating Altitude <= 16404.2 ft (5000 m)

Latest Product News

  • “Schneider’s New 140AVI03000 Module Redefines Analog Input Precision in Automation”
  • “Improved Efficiency with Schneider 140AVI03000: Analog Module for Modern Automation Systems”
  • “Schneider Launches High-Powered Analog Input Solutions for Complex Industrial Systems”

Recommended Models from the Same Series
Here are 10 similar or related models to the Schneider 140AVI03000:

Model Description Key Features
140ACI03000 Analog Input Module 8 analog inputs, high-precision
140DIA03000 Digital Input Module 8 digital inputs, robust isolation
140CPS92400 Power Supply Module Wide voltage input, stable output
140CRP93100 Relay Output Module 16 relay outputs, high load capacity
140SAI94000 Analog Output Module 16-bit precision, wide voltage range
140SVA96000 Voltage Input Module Wide range of voltages, high isolation
140ACO02000 Analog Output Module 16 output channels, easy integration
140AIO93000 Analog Input/Output Module Combined analog I/O, reliable performance
140PID92000 PID Control Module Precise PID algorithms, fast response
140CEI01000 Industrial Ethernet Interface Module High-speed communication, compact design

Popular Schneider Models

Model Description Key Features
140ACI03000 Analog Input Module High precision, 8 inputs
140CPS92400 Power Supply Module Stable voltage output
140SAI94000 Analog Output Module 16-bit resolution
140DIA03000 Digital Input Module Robust, high-speed inputs
140PID92000 PID Control Module Fast response, flexible control
140AIO93000 Combined Analog I/O Module Space-saving, flexible inputs/outputs
140EIA93000 Ethernet I/O Module High-speed data transmission
140CRP93100 Relay Output Module 16 relay outputs
140HEA94100 High-Speed I/O Module High-frequency signal processing
140COA03000 Analog Output Module Low-noise, stable output signals
FAQ

FAQs (Frequently Asked Questions)

Q1: What is the input voltage range of the Schneider 140AVI03000?
A1: The module supports both bipolar and unipolar voltage ranges, including +/- 10 V, +/- 5 V, 0…10 V, and 0…5 V.

Q2: How many analog inputs does the 140AVI03000 module support?
A2: It supports 8 analog input channels.

Q3: What is the module’s accuracy?
A3: The accuracy is +/- 0.03% of full scale for voltage inputs and +/- 0.05% of full scale maximum.

Q4: Does the module support current inputs?
A4: Yes, it supports bipolar and unipolar current inputs including 0…20 mA and 20 mA.

Q5: What is the update time for the 140AVI03000?
A5: The update time is 10 ms.

Q6: What is the operating temperature range?
A6: The module operates between 0°C and 60°C.

Q7: Is the 140AVI03000 module suitable for high-temperature environments?
A7: No, it is not suitable for high temperatures above 60°C. However, it can operate in temperatures as low as -40°C for storage.

Q8: How does the module handle electrical interference?
A8: The module has high electromagnetic resistance and can withstand up to 9.1 V/m at 80-1000 MHz.

Q9: Can the module withstand electrostatic discharge?
A9: Yes, it is resistant to 4 kV contact and 8 kV air electrostatic discharge.

Q10: What is the module’s isolation rating?
A10: It provides 500 Vrms AC isolation between channels and the bus and 135 Vrms AC isolation between channels.
