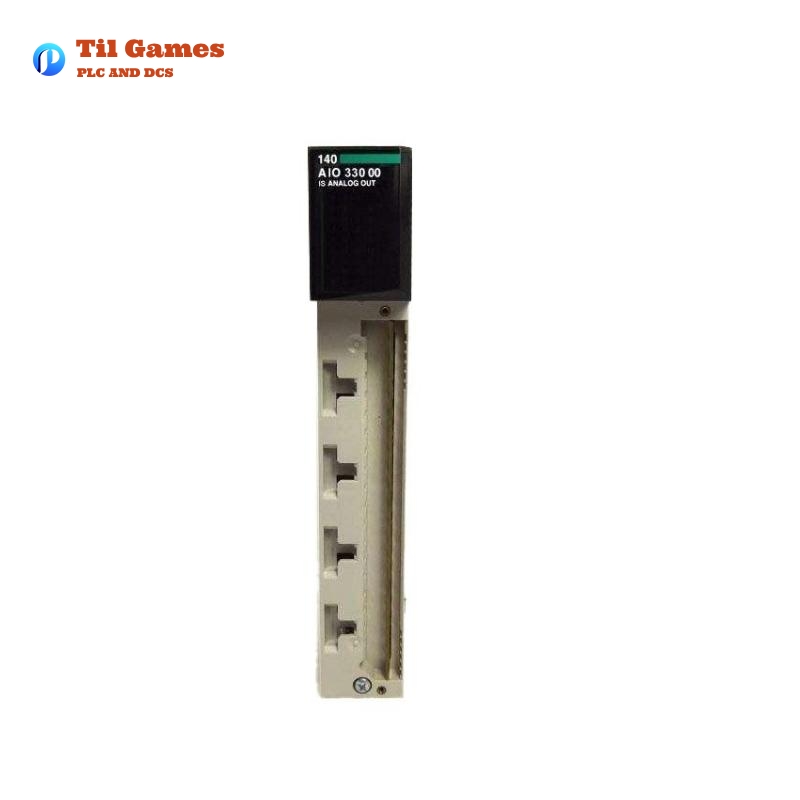

Schneider 140AIO33000 Intrinsically Safe Analog Output Module

Schneider 140AIO33000 Intrinsically Safe Analog Output Module

Manufacturer:Schneider

Product Number:140AIO33000

Product Type:Intrinsically Safe Analog Output Module

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.3 kg

Views:42

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/140AIO33000-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140AIO33000-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140AIO33000-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140AIO33000.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview:

The Schneider 140AIO33000 Intrinsically Safe Analog Output Module is designed for use in hazardous environments where safety and precision are paramount. This module is suitable for use in zone 20, 21, or 22 areas, providing reliable analog output capabilities. It offers high accuracy, durability, and the ability to function in hazardous locations such as explosive atmospheres.

The module features an 8-channel analog output configuration with a range of 0-20 mA, 0-25 mA, and 4-20 mA, offering flexibility for a variety of industrial applications. With excellent precision and minimal drift, the module is ideal for controlling industrial processes that require precise output signals in potentially dangerous environments.

Product Applications:

  • Hazardous Area Applications: Suitable for use in industries that involve explosive gases, dust, or other hazardous conditions.
  • Industrial Automation: Commonly used in automated control systems, such as chemical processing, oil and gas, and petrochemical industries.
  • Remote Monitoring and Control: Enables accurate control and monitoring of critical systems where safety is crucial.
  • Safety-Critical Processes: Ensures compliance with stringent safety regulations and standards in environments prone to explosive risks.

Product Advantages:

  • Intrinsically Safe Design: Complies with international safety standards for use in hazardous zones (e.g., Class 1 Division 1).
  • High Accuracy: Provides a minimal error rate of +/- 0.2% of full scale at 25°C, ensuring precise control over industrial processes.
  • Wide Temperature Range: Operates efficiently in a wide temperature range from 0°C to 60°C, making it suitable for various environmental conditions.
  • Durable: Resistant to electrostatic discharge (up to 4 kV contact and 8 kV in the air) and electromagnetic fields, ensuring long-term reliability.
  • CE and ATEX Certified: Meets the required safety certifications for international use, including CE, CSA, UL, and ATEX standards.

Latest Product News Title: “Schneider Electric’s 140AIO33000 Module Receives ATEX and UL Certification for Safe Operation in Hazardous Areas”


Product Parameters

Parameter Value
Product Type Intrinsically Safe Analog Output Module
Software Compatibility Concept V2.2 and above, ProWORX, Unity Pro
Product Destination Zone 20, 21, or 22
Analog Output Number 8
Analog Output Range 0-20 mA, 0-25 mA, 4-20 mA (15 bits)
Maximum Loop Resistance 500 Ohms
Absolute Accuracy Error +/- 0.2% of full scale at 25°C
Accuracy Drift (Temperature) 40 ppm/°C
Linearity +/- 1 LSB
Update Time 4 ms
Setting Time 1 ms to +/- 0.1% of final value
Isolation Between Channels 1780 Vrms for 60 seconds (AC)
Fault Type Open circuit 4-20 mA
Power Dissipation 12.5 W
Hot Swapping Not allowed per intrinsic safety standards
Protection Type Internal fuse
Marking CE, II1 G/D-EEx ia IIC
Bus Current Requirement 2.5 A
Module Format Standard
Net Weight 0.3 kg
Dimensions 103.9 × 40.3 × 250 mm
Ambient Temperature (Operation) 0…60 °C
Ambient Temperature (Storage) -40…85 °C
Relative Humidity 95% without condensation
Operating Altitude <= 5000 m
Certifications CSA C22.2 No 142, UL 508, EN 50020, EN 50014, ATEX 94/9/EC
Dust Zone Outside zone
Electrostatic Discharge Resistance 4 kV contact, 8 kV in the air (IEC 801-2)
Electromagnetic Field Resistance 10 V/m, 80-2000 MHz (IEC 801-3)

Recommended Models in the Same Series

Model Key Features Parameter Highlights
140AIO33001 8-channel output, higher accuracy +/- 0.1% full scale accuracy
140AIO34000 4-20 mA range, low power consumption 0-20 mA range, 0.2% full scale
140AIO34001 Compact design for smaller installations 15 bits resolution, 500 Ohm max loop
140AIO35000 Dual-channel design for redundant systems Up to 4-20 mA, 12.5 W power dissipation
140AIO35001 Extended temperature range for extreme climates -40…85 °C storage temperature
140AIO36000 Intrinsically safe for Class 1 Div 1 hazardous zones 1780 Vrms isolation
140AIO36001 EMC resistant with better shielding 4 kV electrostatic discharge resistance
140AIO37000 Certified for global safety standards CE, UL, ATEX certification
140AIO37001 Higher resistance to electromagnetic interference 10 V/m resistance
140AIO38000 Enhanced diagnostic capabilities for fault detection 4 ms update time

Schneider Popular Models

Model Parameter Highlights Applications
140CPU11303 8 I/O, 4 Ethernet ports Industrial automation and control
140CRP93100 High power rating, industrial control Used in harsh environments
140DDI35300 Digital input module with high speed processing Alarm systems, monitoring
140DRI20000 16-channel relay output Control systems in process industries
140AIA32000 16 inputs, modular format Suitable for remote control applications
140DOI84000 8 digital outputs, expandable HVAC and energy management systems
140DTR96000 Distributed I/O, fault detection system Safety critical control loops
140AIP32000 4 analog inputs, high resolution Used in measurement and test systems
140ASI84000 AS-Interface gateway for automation Control for factory automation
140ATC94000 Communication module for process control networks Integration of devices in control systems
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the maximum output loop resistance for the Schneider 140AIO33000?
A1: The maximum loop resistance is 500 Ohms.

Q2: Can I hot swap this module?
A2: No, hot swapping is not allowed per intrinsic safety standards.

Q3: What is the absolute accuracy error of the module?
A3: The absolute accuracy error is +/- 0.2% of full scale at 25°C.

Q4: Is this module CE certified?
A4: Yes, the module is CE certified and also complies with ATEX, CSA, and UL certifications.

Q5: What is the power dissipation of the module?
A5: The power dissipation is 12.5 W.

Q6: What temperature range can the module operate in?
A6: The operating temperature range is 0°C to 60°C, and it can be stored between -40°C and 85°C.

Q7: How many analog outputs does the module have?
A7: The module has 8 analog outputs.

Q8: What is the resistance to electrostatic discharge for this module?
A8: The module is resistant to 4 kV contact and 8 kV in the air, according to IEC 801-2.

Q9: What is the linearity of the module?
A9: The linearity is +/- 1 LSB.

Q10: What certifications does this module have?
A10: The module is certified for hazardous locations, including Class 1 Division 1, with certifications like SIRA 02ATEX2345X, C-Tick, and FM Class 1 Division 2.
