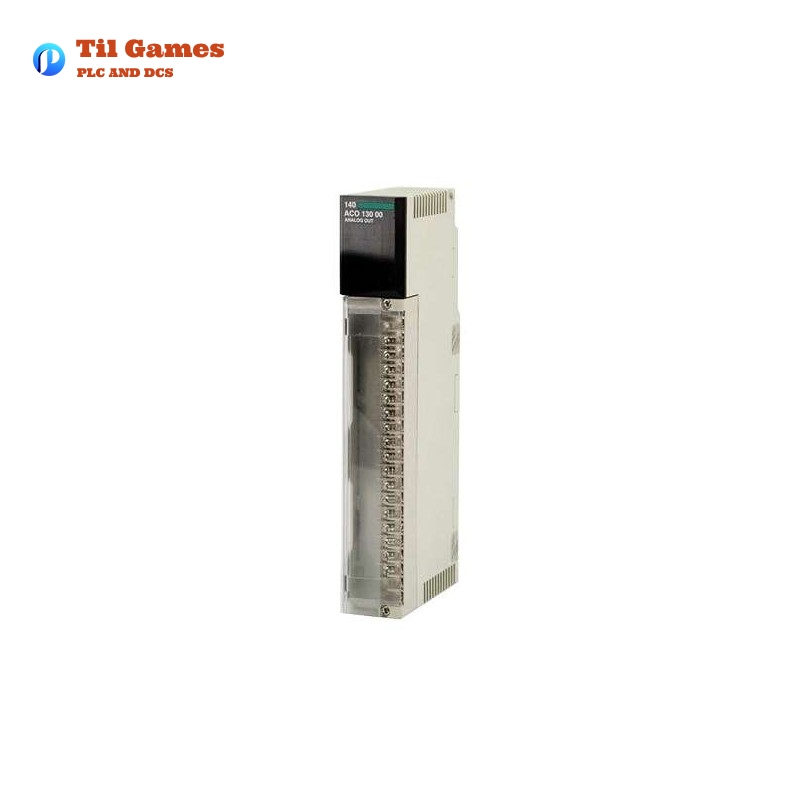

Schneider 140ACO13000 Analog Output Module

Schneider 140ACO13000 Analog Output Module

Manufacturer:Schneider

Product Number:140ACO13000

Product Type:Analog Output Module

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.3 kg

Views:32

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/140ACO13000-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140ACO13000-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140ACO13000.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140ACO13000-4-3.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Parameter Specification
Range of Product Modicon Quantum automation platform
Product Type Analog Output Module
Number of Analog Outputs 8 outputs
Addressing Requirement 8 output words
Loop Voltage 6…30 V DC
Maximum Voltage Drop <30 V at 25 mA
Analog Output Ranges 0…20 mA (0…20000 counts)
0…25 mA (0…25000 counts)
4…20 mA (0…16000 counts)
4…20 mA (0…4095 counts)
Absolute Accuracy Error ±0.2% of full scale at 25°C
Linearity ±12 µA (4…20 mA, 0…4095 counts)
±4 µA (0…20 mA, 0…20000 counts)
±4 µA (0…25 mA, 0…25000 counts)
±4 µA (4…20 mA, 0…16000 counts)
Accuracy Drift (Temperature) 0.004% of full scale/°C (typical)
0.007% of full scale/°C (maximum)
Isolation (Channels to Bus) 1780 V AC for 1 minute
Update Time 5 ms
Setting Time 3.2 ms to ±0.1% of final value
1.6 ms to 5% of final value
Fault Type Open circuit (4…20 mA)
Bus Current Requirement 550 mA
Maximum Power Dissipation 5 W
External Power Requirement 6…30 V
Marking CE
Local Signaling 1 green LED for bus communication (Active)
1 red LED for external fault
8 green LEDs for channel operation
8 red LEDs for channel fault
Module Format Standard
Dimensions (W x D x H) 103.9 × 40.3 × 250 mm
Net Weight 0.3 kg
Certifications cUL, FM Class 1 Division 2
Standards UL 508, CSA C22.2 No 142
Electromagnetic Resistance 10 V/m (80…2000 MHz) (IEC 801-3)
Operating Temperature 0…60°C
Storage Temperature -40…85°C
Relative Humidity 95% (non-condensing)
Operating Altitude ≤5000 m

Product Introduction

The Schneider 140ACO13000 Analog Output Module is an essential component of the Modicon Quantum automation platform. It provides precise analog output signals for various industrial control and automation applications. Designed for flexibility and efficiency, it ensures smooth process control by supporting multiple output ranges with excellent accuracy, linearity, and reliability.

The module features eight independent output channels, allowing users to control various industrial actuators and devices. It offers high isolation protection, low voltage drop, and fast update times, making it ideal for applications requiring real-time responsiveness. With robust environmental resistance, it is suitable for harsh industrial settings.


Applications

  1. Industrial Process Control – Used in manufacturing plants to regulate machinery and industrial processes.
  2. Power Generation Systems – Supports control systems in thermal, hydro, and nuclear power plants.
  3. Water and Wastewater Treatment – Provides precise control of pumps, valves, and dosing systems.
  4. Oil & Gas Industry – Used in offshore and onshore platforms for monitoring and automation.
  5. HVAC Systems – Controls temperature, pressure, and humidity in large commercial facilities.
  6. Food & Beverage Industry – Ensures accuracy in mixing and ingredient dosing systems.
  7. Chemical Processing Plants – Helps in precise control of flow and mixture processes.
  8. Pharmaceutical Industry – Ensures compliance with production standards in controlled environments.
  9. Metallurgy and Mining – Supports automation in refining and material processing.
  10. Renewable Energy Systems – Manages control functions in wind and solar power stations.

Advantages

  • High Accuracy & Stability – ±0.2% full-scale accuracy ensures precise analog signal output.
  • Multiple Output Ranges – Supports a variety of industrial applications with different signal requirements.
  • Fast Response Time – Quick update and setting times ensure real-time process control.
  • Robust Build & Reliability – Conforms to industry standards with strong environmental resistance.
  • Advanced Diagnostic Features – LED indicators for real-time monitoring of module status.
  • Wide Operating Temperature Range – Suitable for harsh environments (0°C to 60°C).
  • Easy Integration – Seamlessly connects with other Modicon Quantum modules.
  • High Isolation Protection – Ensures system stability and protects against electrical noise.
  • Certifications & Compliance – Meets UL, CSA, FM standards for industrial use.
  • Energy-Efficient – Consumes only 5W power for optimal performance.
