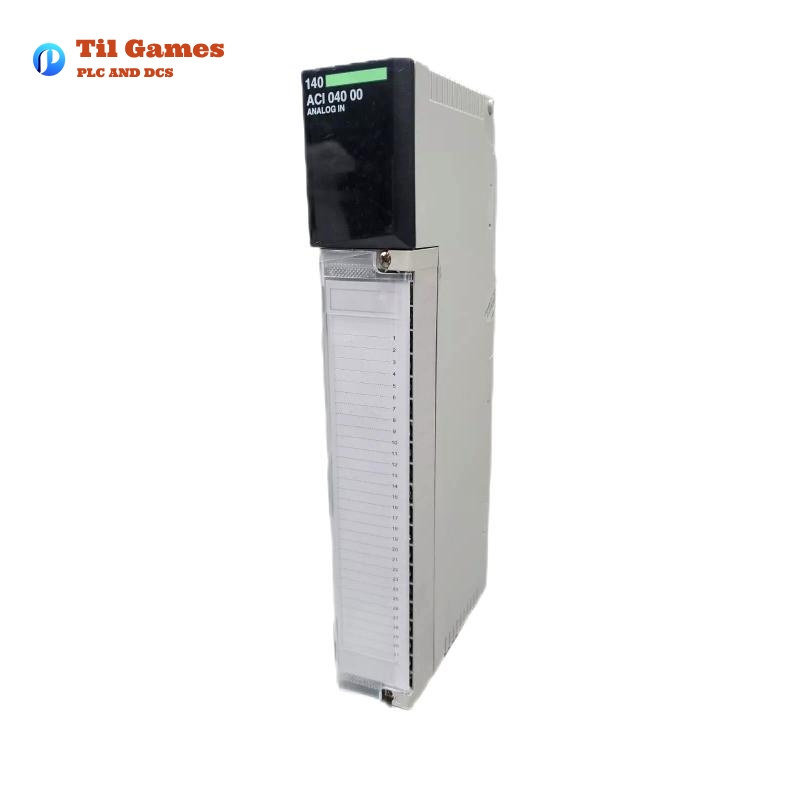

Schneider 140ACI04000 Analog Input Module

Schneider 140ACI04000 Analog Input Module

Manufacturer:Schneider

Product Number:140ACI04000

Product Type:Analog Input Module

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.3 kg

Views:24

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/140ACI04000-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140ACI04000-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140ACI04000-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/140ACI04000-2.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Attribute Details
Range of Product Modicon Quantum automation platform
Product or Component Type Analog Input Module
Number of Analog Inputs 16
Input Type Differential
Addressing Requirement 17 input words
Input Resolution – 0…16000 counts (4…20 mA)
– 0…20000 counts (0…20 mA)
– 0…25000 counts (0…25 mA)
– 0…4095 counts (4…20 mA)
Absolute Maximum Input 30 mA
Input Impedance 250 Ohm
Absolute Accuracy Error ±0.125% of full scale
Linearity Error – ±12 µA max (4…20 mA)
– ±6 µA max (0…20 mA)
– ±6 µA max (0…25 mA)
Accuracy Drift (Temperature) – ±0.0025% of full scale/°C
– ≤0.0050% of full scale/°C
Common Mode Rejection > -90 dB at 60 Hz
Isolation Between Channels & Bus 1780 V AC for 60s
Update Time 15 ms (2-wire/4-wire)
Fault Type Broken wire detection (4…20 mA)
Marking CE
Local Signaling – 1 green LED for bus communication
– 1 red LED for external fault
– 16 green LEDs for active channels
– 16 red LEDs for channel faults
Bus Current Requirement 360 mA
Power Dissipation 5 W
Module Format Standard
Dimensions (W × D × H) 103.9 × 40.3 × 250 mm
Net Weight 0.3 kg
Standards UL 508, CSA C22.2 No 142
Certifications FM Class 1 Division 2, cUL
Electrostatic Discharge Resistance – 4 kV contact (IEC 801-2)
– 8 kV air (IEC 801-2)
Electromagnetic Field Resistance 10 V/m (80–1000 MHz, IEC 801-3)
Operating Temperature 0 to 60°C
Storage Temperature -40 to 85°C
Relative Humidity 95% (non-condensing)
Operating Altitude ≤5000 m

Product Introduction

The Schneider 140ACI04000 is a high-performance analog input module designed for the Modicon Quantum automation platform. It features 16 differential input channels with high resolution and accuracy, making it suitable for precision industrial control applications. The module provides broken wire detection, isolation between channels and the bus, and comprehensive LED status indicators for easy diagnostics.

With robust environmental resistance, including high electrostatic discharge and electromagnetic interference protection, this module is ideal for use in demanding industrial environments.


Product Applications

The Schneider 140ACI04000 is widely used in industrial automation and control systems, including:

  • Process Control Systems – Accurate monitoring of process variables in chemical, pharmaceutical, and food industries.
  • Manufacturing Automation – Used in CNC machines, robotic systems, and automated production lines.
  • Energy and Utilities – Suitable for power plants, oil and gas industries, and water treatment facilities.
  • Building Management Systems – Used for HVAC control and environmental monitoring.
  • Transportation and Infrastructure – Integrated into railway systems, smart grid applications, and traffic control systems.

Product Advantages

  • High Accuracy & Stability – ±0.125% full-scale accuracy ensures precise measurements.
  • Wide Range of Input Signal Handling – Supports 0–20 mA, 4–20 mA, and 0–25 mA input signals.
  • Fast Update Time15 ms update speed ensures quick response for real-time applications.
  • Robust Isolation1780V AC isolation provides enhanced system protection.
  • Comprehensive DiagnosticsLED indicators for channel status and fault detection simplify troubleshooting.
  • High Resistance to Environmental Conditions – Conforms to IEC standards for electrostatic discharge, electromagnetic fields, and temperature variations.
  • Compact & LightweightSlim module design (103.9 × 40.3 × 250 mm, 0.3 kg) for easy integration into control panels.
