Product Overview:

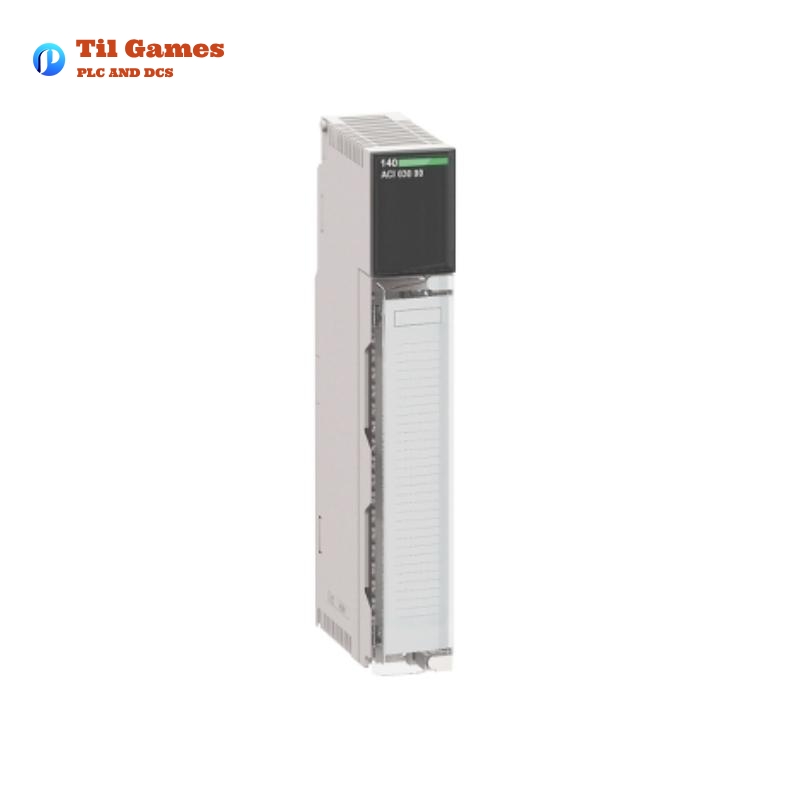

The Schneider Electric 140ACI03000 is a versatile and reliable Analog Input Module designed for the Modicon Quantum automation platform. This module allows for accurate measurement and monitoring of analog signals, making it ideal for industrial applications that require high precision and robust performance. It is capable of handling differential analog inputs and features a single-pole low-pass filter, making it suitable for systems that need noise reduction and smooth data processing.
Key Features and Specifications:
| Parameter | Value |
|---|---|
| Product Type | Analog Input Module |
| Input Channels | 8 |
| Input Type | Differential |
| Addressing Requirement | 9 input words |
| Resolution | 12 bits |
| Measuring Range | 1…5 V, 4…20 mA |
| Absolute Maximum Input | 50 V DC, 25 mA |
| Input Impedance (Current) | 250 Ohm ± 0.01 % |
| Input Impedance (Voltage) | > 20 MOhm |
| Accuracy | ±0.05 % (Full Scale), ±0.1 % Max |
| Linearity Error | ±0.04 % |
| Accuracy Drift (Temperature) | ±0.0025 % of Full Scale/°C |
| Common Mode Rejection | > -72 dB @ 60 Hz |
| Isolation Between Channels | 1000 V DC, 3000 V DC for 60 s |
| Update Time | 5 ms |
| Fault Detection | Broken wire for 4…20 mA |
| Fault Signalling | Undervoltage for 1…5 V |
| Local Signalling | 1 LED (Green) – Bus communication is active |
| Bus Current Requirement | 240 mA |
| Power Dissipation | 2 W |
| Module Format | Standard |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Environment Rating | UL 508, CSA C22.2 No 142 |
| Certifications | FM Class 1 Division 2, cUL |
| Resistance to Electrostatic Discharge | 4 kV contact (IEC 801-2) |
| Resistance to Electromagnetic Fields | 10 V/m (80…1000 MHz) |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 95 % without condensation |
| Operating Altitude | <= 5000 m |
Product Applications:
The Schneider 140ACI03000 Analog Input Module is used in a variety of industrial control systems for applications such as:
- Process Automation: Monitoring of temperature, pressure, and flow in manufacturing plants.
- Energy Management: Measurement and control of analog signals in electrical distribution and energy monitoring.
- Manufacturing Control: Integration into machine control systems that require precise analog data for operational efficiency.
- Building Automation: Facilitating HVAC and other systems that need precise input data for operation.
Product Advantages:
- High Accuracy: The module offers ±0.05% accuracy and a low linearity error of ±0.04%, ensuring that your system receives precise and reliable measurements.
- Wide Input Range: With the capability to measure both voltage (1…5 V) and current (4…20 mA), it offers flexible compatibility with various sensor types.
- Excellent Noise Immunity: With common mode rejection greater than -72 dB at 60 Hz, it ensures stable and noise-free signal processing.
- Thermal Stability: The accuracy drift with temperature is minimal (±0.0025% per °C), making it suitable for a wide range of operating environments.
- Robust Certifications: Certified for use in hazardous locations (FM Class 1 Division 2) and conforms to IEC standards, ensuring durability and safety in industrial settings.
Latest News Headlines:
- “Schneider Electric Announces New Analog Input Module for Enhanced Process Automation”
- “Schneider 140ACI03000 Module Delivers Exceptional Noise Immunity for Critical Applications”
- “Quantum Platform’s New Analog Input Module Offers Unmatched Accuracy for Energy Management Systems”
Recommended Similar Models:
| Model Number | Product Type | Key Features | Application Area |
|---|---|---|---|
| 140ACI04000 | Analog Input Module | 16 Inputs, 12-bit resolution | Large-scale process control |
| 140CPS11400 | Power Supply Module | 24V DC output, 2 A | Power management systems |
| 140DAI16000 | Digital Input Module | 16 Inputs, 24 V DC, 32 mA | Automation, security |
| 140CPS11401 | Power Supply Module | 48V DC, 4 A | Advanced automation systems |
| 140ACO13000 | Analog Output Module | 16 Channels, 12-bit resolution | Process control systems |
| 140DRA21200 | Digital Output Module | 8 Channels, 24 V DC, 10 A | Actuator control |
| 140AVI03000 | Analog Input Module | 4 Channels, 24-bit resolution | High-precision measurement |
| 140CRI01000 | Communication Interface | Modbus, Ethernet compatibility | Networking and data exchange |
| 140MMS50000 | Motion Control Module | For motor speed control | Industrial motion control |
| 140NTA62000 | Terminal Block | For Quantum automation platform | Wiring and connections |
Top 10 Schneider Popular Models:
| Model Number | Product Type | Key Features | Application Area |
|---|---|---|---|
| 140CRA21200 | Communication Module | Ethernet, Modbus, Serial | Factory automation |
| 140ACI03000 | Analog Input Module | 8 Channels, 12-bit, Differential | Process automation |
| 140DTI16000 | Digital Input Module | 16 Inputs, 24 V DC | Control systems |
| 140ATS12000 | Analog Output Module | 12 Outputs, 12-bit resolution | Precision control |
| 140AMM03200 | Motion Control Module | High-speed feedback control | Robotics, conveyors |
| 140CPS12000 | Power Supply Module | 24 V DC, 2.5 A | Automation systems |
| 140IDE21100 | I/O Extension Module | Expandable to 64 I/O | Large control systems |
| 140PCD11000 | CPU Module | High performance, modular | Industrial computing |
| 140TCX61000 | Temperature Controller | For industrial heating systems | HVAC control |
| 140NCP50300 | Control Processor Module | High-speed processing | Data acquisition |
FAQ
FAQ for Schneider 140ACI03000 Analog Input Module:
Q1: What is the input voltage range for the Schneider 140ACI03000?
- A1: The module can handle 1…5 V DC input voltage.
Q2: What is the maximum allowable input current?
- A2: The maximum allowable input current is 25 mA.
Q3: Can this module handle both voltage and current inputs?
- A3: Yes, it supports both 1…5 V DC and 4…20 mA signals.
Q4: What is the resolution of the module?
- A4: The module has a 12-bit resolution.
Q5: What is the update time of this module?
- A5: The update time is 5 ms.
Q6: Is this module isolated from the bus?
- A6: Yes, it provides isolation between channels and the bus, rated at 1000 V DC.
Q7: What certifications does this module have?
- A7: It is FM Class 1 Division 2, cUL certified and complies with UL 508 and CSA C22.2 No 142.
Q8: Can I use this module in a high-temperature environment?
- A8: The operating temperature range is 0…60 °C, and the storage temperature range is -40…85 °C.
Q9: How do I troubleshoot faults in this module?
- A9: The module provides fault signaling via LEDs, including red LEDs for channel faults and broken wires.
Q10: What is the power consumption of this module?
- A10: The module requires 240 mA bus current and dissipates 2 W of power.
