Product Overview

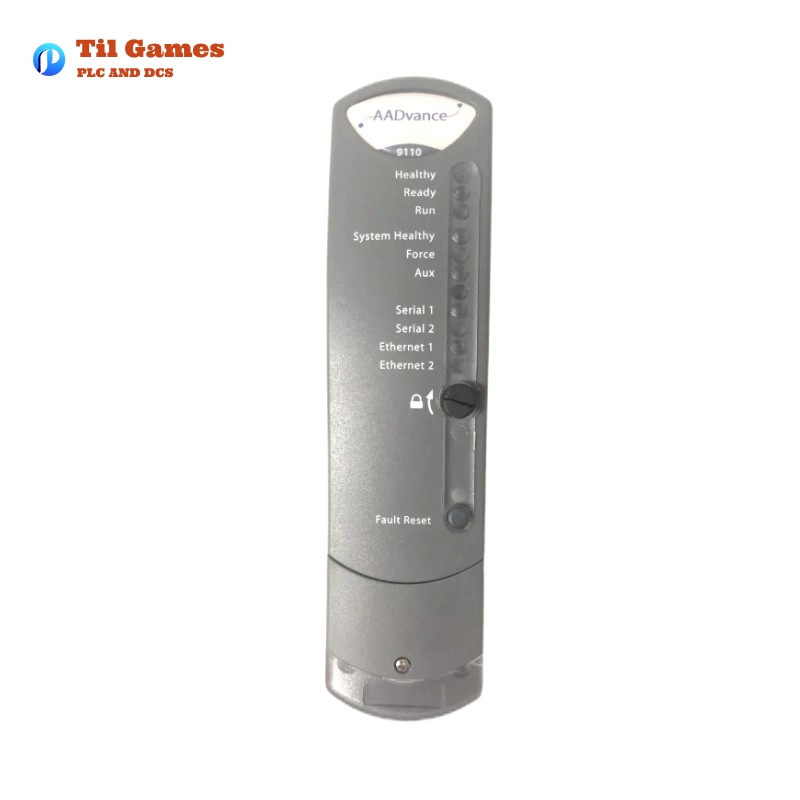

The ICS Triplex T9110 Processor Module is a key component of the AADvance® safety controller system, providing robust processing power and communication capabilities for safety-critical applications. It is designed for integration in complex systems requiring high availability and reliability, supporting dual and triple processor configurations for redundancy and fault tolerance.
Key Features
-
Redundant Processor Support: The T9110 can be installed as part of a redundant processor system, providing high availability for mission-critical applications.
-
Flexible Communication: It supports Ethernet and serial communications, ensuring compatibility with various industrial networks and protocols.
-
Hot Swap Capability: Allows for the replacement of I/O modules without system downtime, ensuring continuous operation in critical applications.
-
Firmware Upgrades: Supports firmware updates via the ControlFLASH™ utility, facilitating system maintenance and updates without the need for physical module replacement.
-
Diagnostics and Fault Logging: The T9110 provides advanced diagnostics and logging features, helping users to track system performance and identify issues proactively.
Product Specifications
| Parameter | Description |
|---|---|
| Dimensions | 166 x 42 x 118 mm |
| Weight | 0.43 kg |
| Power Supply | 18-32 Vdc |
| Processor Type | Dual/Triple redundancy |
| Ethernet Ports | 2 (Ethernet 1, Ethernet 2) |
| Serial Ports | 2 (Serial 1, Serial 2) |
| Indicator LEDs | Healthy, Ready, Run, etc. |
| Environmental Range | -30°C to +80°C |
| Mounting | DIN rail mounting |
Product Advantages
-
High Availability: The T9110 processor module ensures uninterrupted operation through its redundant processor support, making it ideal for critical safety applications.
-
Flexible Configuration: It supports multiple I/O configurations and redundancy schemes to suit various system architectures.
-
Ease of Maintenance: With hot-swapping capability and support for remote firmware upgrades, the T9110 reduces downtime during maintenance or upgrades.
Applications
The T9110 Processor Module is primarily used in:
-
Safety Instrumented Systems (SIS) for industrial processes.
-
Critical Control Systems in sectors such as oil & gas, power generation, and chemical manufacturing.
-
Redundant Processor Systems requiring high reliability and minimal downtime.
Latest News Headlines
-
“ICS Triplex T9110 Processor Module Revolutionizes Safety Control in Critical Systems”
-
“New Firmware Enhancements for the ICS Triplex T9110 Improve Performance and Security”
Related Products (from the AADvance System)
| Model | Description | Key Features |
|---|---|---|
| T9100 | Processor Base Unit | Supports up to 3 processor modules |
| T9300 | I/O Base Unit | Holds up to 3 I/O modules |
| T9401 | Digital Input Module, 8-channel, isolated | 24 Vdc input, isolated channels |
| T9402 | Digital Input Module, 16-channel, isolated | 24 Vdc input, isolated channels |
| T9451 | Digital Output Module, 8-channel, isolated | 24 Vdc output, isolated channels |
| T9431 | Analog Input Module, 8-channel, isolated | 24 Vdc analog input |
Popular ICS Triplex Models
| Model | Description | Key Features |
|---|---|---|
| T9110 | Processor Module | Dual/triple redundancy support |
| T9401 | Digital Input Module | 8-channel, isolated |
| T9451 | Digital Output Module | 8-channel, isolated |
| T9481 | Analog Output Module | 3-channel, isolated |
| T9300 | I/O Base Unit | Holds up to 3 I/O modules |
| T9305 | Digital Input Module, 32-channel | 32-channel, isolated |
FAQ
FAQs (Frequently Asked Questions)
Q1: What power supply does the T9110 require?
-
A1: The T9110 processor module requires a power supply of 18-32 Vdc.
Q2: Can the T9110 be used in non-redundant configurations?
-
A2: Yes, the T9110 can operate as a single processor or in a redundant configuration, depending on the system requirements.
Q3: How do I perform a firmware upgrade on the T9110?
-
A3: Firmware upgrades can be performed using the ControlFLASH™ utility. Ensure you have the correct firmware file before starting the upgrade process.
Q4: What are the dimensions of the T9110 module?
-
A4: The dimensions are 166 x 42 x 118 mm.
Q5: Does the T9110 support hot swapping of I/O modules?
-
A5: Yes, the T9110 supports hot swapping of I/O modules, allowing for replacement without interrupting system operation.
Q6: What is the weight of the T9110 module?
-
A6: The T9110 module weighs 0.43 kg.
Q7: What is the temperature range for the T9110?
-
A7: The T9110 can operate in temperatures ranging from -30°C to +80°C.
Q8: Can the T9110 be used in hazardous locations?
-
A8: The T9110 is suitable for use in hazardous locations, but proper safety protocols and power isolation must be followed when performing maintenance.
