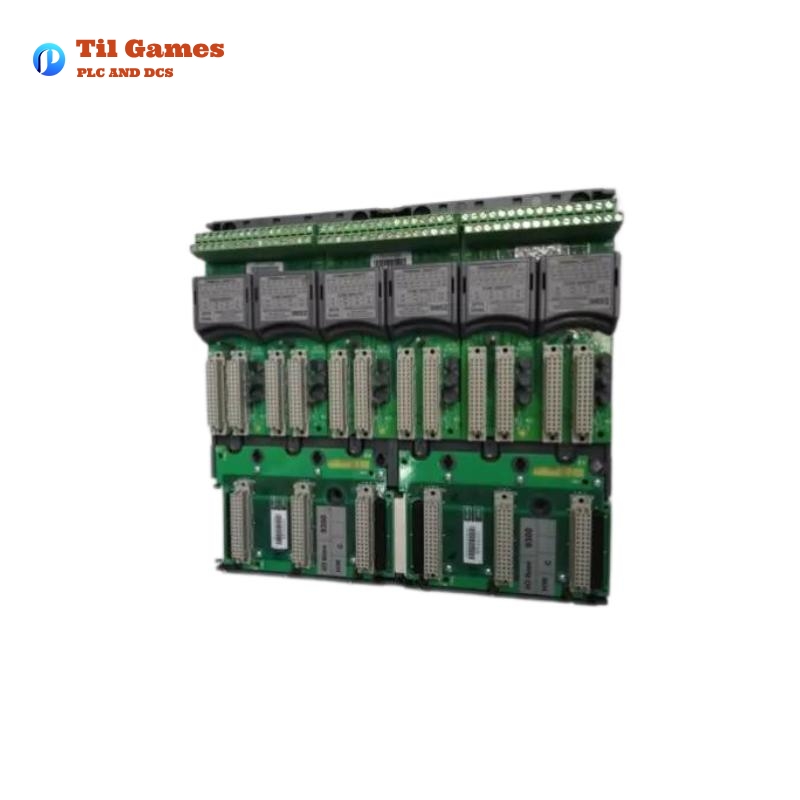

The ICS Triplex T8891 Trusted Speed Monitor Output Field Termination Assembly (SOFTA) is a DIN rail-mounted device designed to function as an output field interface for one rotating machine group when integrated into a Trusted T8442 Triple Modular Redundant (TMR) Speed Monitor system.
This unit provides normally open and normally closed volt-free contact outputs, allowing for use in energized-to-trip and de-energized-to-trip configurations. The quad-redundant, fault-tolerant relay output channels ensure that failure of any single relay or contact does not affect the load or its control.
Key features include:
- Dual fault-tolerant volt-free contact output channels
- Configurable as normally open or normally closed contacts
- Quad-redundant relay structure for maximum reliability
- Load current feedback for enhanced monitoring
- Contact status feedback to detect welded or stuck contacts
- Force-guided contact safety relays for improved diagnostics
- Standard DIN rail mounting
- Replaceable relays, fuses, and current sensors
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 24V DC |
| Relay Coil Current | 29.2 mA |
| Nominal Coil Power | 700 mW |
| Relay Contact Rating (AC) | 5V – 120V AC, max 3A |
| Relay Contact Rating (DC) | 5V – 30V DC, max 2A |
| Breaking Capacity (AC) | 432 VA |
| Breaking Capacity (DC) | 2A @ 30V DC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Relative Humidity | 10% – 95% (non-condensing) |
| Mounting | Standard DIN Rail |
| Dimensions (H x W x D) | 102 mm x 180 mm x 127 mm |
| Weight | 0.55 kg |
Applications
The ICS Triplex T8891 SOFTA is widely used in critical safety and process control applications, including:
- Industrial automation
- Oil & gas safety systems
- Rotating machinery speed monitoring
- Power generation control systems
- Chemical processing plants
- Emergency shutdown (ESD) systems
Key Advantages
- Highly Reliable – Quad-redundant relay structure minimizes risk of failure.
- Safety-Compliant – Uses force-guided safety relays to detect stuck contacts.
- Real-Time Diagnostics – Monitors contact status and load feedback.
- Flexible Configuration – Supports energized-to-trip and de-energized-to-trip.
- Easy Maintenance – All relays, fuses, and current sensors are replaceable.
- Seamless Integration – Compatible with ICS Triplex T8442 Speed Monitor.
- Industrial Standard Mounting – DIN rail design allows simple installation.
Recent News & Updates
- “Rockwell Automation Enhances ICS Triplex Speed Monitoring Solutions for High-Reliability Industrial Applications.”
- “New Safety Features in Trusted T8891 SOFTA Ensure Higher System Integrity.”
- “ICS Triplex T8891 Now Certified for Expanded Industrial Safety Standards.”
Related Models in the Same Series
| Model | Description |
|---|---|
| T8442 | Trusted TMR Speed Monitor Module |
| T8846 | Speed Input FTA for use with T8442 |
| TC-801 | I/O Companion Slot for T8442 |
| T8403 | TMR Digital Output Module |
| T8461 | TMR Digital Input Module |
| T8480 | TMR Power Supply Module |
| T8850 | Analog Input FTA |
| T8860 | Analog Output FTA |
| T8871 | High Integrity Power Supply Unit |
| T8901 | Redundant Communication Module |
Top 10 ICS Triplex Popular Models
| Model | Description |
|---|---|
| T8403 | TMR Digital Output Module |
| T8461 | TMR Digital Input Module |
| T8442 | Trusted TMR Speed Monitor |
| T8480 | TMR Power Supply Module |
| T8850 | Analog Input Field Termination Assembly |
| T8860 | Analog Output Field Termination Assembly |
| T8891 | Trusted Speed Monitor Output FTA |
| T8901 | Redundant Communication Module |
| T8871 | High Integrity Power Supply Unit |
| T8846 | Speed Input Field Termination Assembly |
FAQ
FAQ (Frequently Asked Questions)
Q1: What is the purpose of the ICS Triplex T8891?
A1: It serves as a field termination assembly for the Trusted T8442 TMR Speed Monitor, providing relay switching for safety-critical applications.
Q2: What are the key safety features of the T8891?
A2: It has quad-redundant relays, contact status feedback, and force-guided safety relays to detect welded or stuck contacts.
Q3: Can the T8891 be used in hazardous environments?
A3: Yes, but it must be used within the specified operating temperature and voltage limits, and external over-current protection is required.
Q4: What is the weight of the T8891 module?
A4: It weighs 0.55 kg (1.2 lbs).
Q5: What mounting method is used for the T8891?
A5: It is designed for DIN rail mounting.
Q6: How many relay output channels does the T8891 have?
A6: It has two fault-tolerant volt-free contact output channels.
Q7: What is the maximum rated voltage for the relay contacts?
A7: The relay contacts support up to 120V AC or 30V DC.
Q8: Is the T8891 compatible with other ICS Triplex modules?
A8: Yes, it is designed to work seamlessly with the T8442 Speed Monitor and other Trusted series components.
Q9: Can relays and fuses in the T8891 be replaced?
A9: Yes, all relays, fuses, and current sensors are replaceable in situ.
Q10: Does the T8891 provide real-time diagnostics?
A10: Yes, it features contact status and load current feedback for continuous monitoring.
