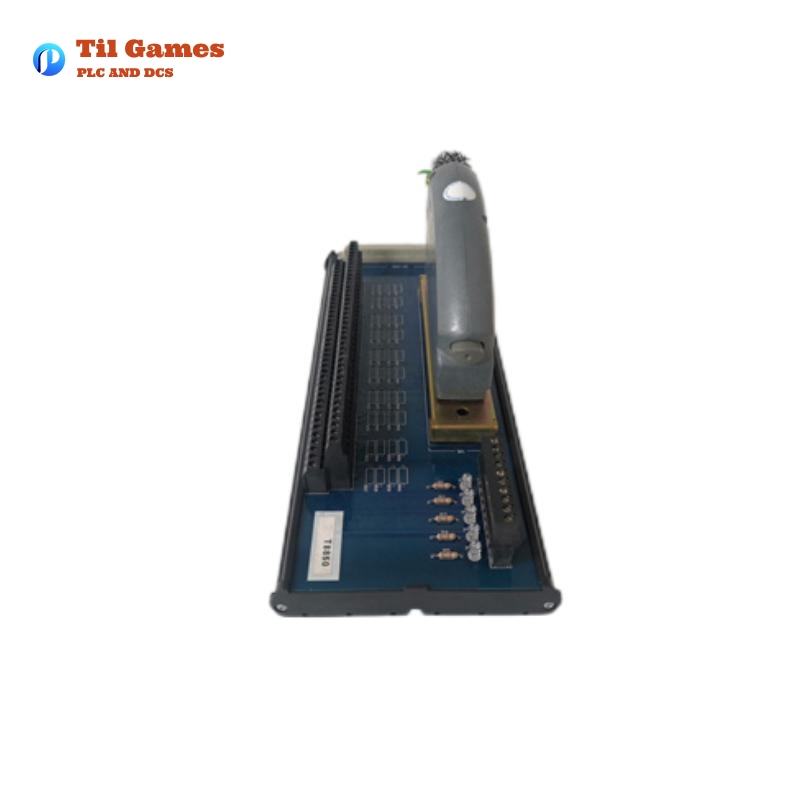

ICS Triplex T8850 Trusted AO/DO Field Termination Assembly (FTA)

ICS Triplex T8850 Trusted AO/DO Field Termination Assembly (FTA)

Manufacturer:ICS Triplex

Product Number:T8850

Product Type:Trusted AO/DO FTA

Origin:USA

Dimensions:110 x 360 x 68 mm

Weight:0.95 kg

Views:19

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8850-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8850-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8850-3-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8850-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

The ICS Triplex T8850 Trusted AO/DO Field Termination Assembly (FTA) is a high-performance 40-channel field termination interface designed for Trusted Triple Modular Redundant (TMR) output modules. It provides a robust and reliable connection between field devices and control systems. The T8850 supports both analog and digital outputs, ensuring flexible compatibility with various industrial applications.

Key Features:

  • Supports 40 output channels per FTA.
  • Compatible with Trusted TMR Digital and Analog Output Modules (T8451, T8461, T8480).
  • DIN rail mountable (TS32/TS35).
  • Screw clamp terminals for secure connections.
  • SmartSlot feature allows easy hot-swap of modules.
  • LED field power supply indication for quick diagnostics.
  • Supports 2-wire standard field device connections.
  • Five isolated groups of eight channels each for better safety.
  • 24V DC operation, ensuring energy efficiency.

Technical Specifications

Parameter Value
Model Number ICS Triplex T8850
Function 40-Channel Analog/Digital Output FTA
Voltage Rating 24V DC
Power Dissipation 0.5W per power group
Isolation 50V Reinforced (continuous)
Fusing None
Operating Temperature 0°C to +60°C
Storage Temperature -25°C to +70°C
Humidity 10% – 95%, non-condensing
Field Terminal Wire Size 12 AWG to 28 AWG
Mounting DIN Rail TS32 / TS35
Dimensions 110 x 360 x 68 mm
Weight 0.95 kg

Applications

The ICS Triplex T8850 is widely used in mission-critical applications where high reliability and fault tolerance are required. Common applications include:

  1. Oil and Gas Industry – Used in safety instrumented systems (SIS) for pipeline control, gas detection, and shutdown systems.
  2. Power Generation – Applied in turbine control systems to ensure safe operation.
  3. Pharmaceutical Industry – Used for batch control, sterilization processes, and quality control.
  4. Water Treatment Plants – Helps in automated flow control and chemical dosing.
  5. Manufacturing and Industrial Automation – Enhances process control in chemical plants and automated assembly lines.

Advantages

The ICS Triplex T8850 offers several competitive advantages, making it a preferred choice in high-reliability environments:

  • Triple Modular Redundant (TMR) Compatibility: Works seamlessly with Trusted TMR output modules, ensuring high availability.
  • Easy Installation: DIN rail mounting and screw terminal connections make integration straightforward.
  • Enhanced Safety: Five isolated groups of channels provide improved electrical protection.
  • Hot-Swap Capability: The SmartSlot connection allows quick replacement of output modules without system downtime.
  • Robust Build: Designed for harsh environments, including industrial automation and hazardous areas.
  • Clear Diagnostics: LED indicators provide quick visual feedback on field power status.
  • Flexible Connectivity: Supports analog and digital outputs, reducing the need for separate FTAs.

Latest News Headlines About T8850

  1. “Rockwell Automation Enhances Safety with ICS Triplex T8850 Release”
  2. “ICS Triplex T8850: The Future of High-Reliability Output Interfaces”
  3. “New Innovations in Trusted TMR Systems: ICS Triplex T8850”
  4. “How ICS Triplex T8850 Improves System Redundancy and Fault Tolerance”
  5. “ICS Triplex Expands Its Product Line with Advanced Output FTA Solutions”

10 Related Models in the Same Series

Model Number Function
T8451 Trusted TMR 24V DC Digital Output Module
T8461 Trusted TMR 24/48V DC Digital Output Module
T8480 Trusted TMR Analog Output Module
T8290 Output Power Distribution Unit (OPDU)
T8891 Trusted 40-Channel Digital Input FTA
T8892 Trusted 40-Channel Analog Input FTA
T8311 Trusted TMR 24V Digital Input Module
T8331 Trusted TMR 48V Digital Input Module
T8851 Trusted 40-Channel Isolated Digital Output FTA
T8861 Trusted 40-Channel High-Density Digital Output FTA

10 Popular ICS Triplex Models

Model Number Function
TMR8000 Trusted Triple Modular Redundant System
T8461 Trusted 24/48V DC Digital Output Module
T8403 Trusted 120V AC Digital Input Module
T8891 Trusted 40-Channel Digital Input FTA
T8480 Trusted Analog Output Module
T8892 Trusted Analog Input FTA
T8311 Trusted 24V Digital Input Module
T8451 Trusted 24V DC Digital Output Module
T8290 Output Power Distribution Unit
T8850 Trusted 40-Channel Analog/Digital Output FTA
FAQ

FAQs (Frequently Asked Questions)

Q1: What is the primary function of the ICS Triplex T8850?

A1: The T8850 serves as a 40-channel field termination assembly, allowing safe and efficient connection between field devices and Trusted TMR output modules.

Q2: Is the T8850 compatible with both analog and digital outputs?

A2: Yes, the T8850 supports both analog and digital outputs, making it versatile for various applications.

Q3: Can the T8850 be mounted on a DIN rail?

A3: Yes, the unit is DIN rail mountable (TS32 or TS35), allowing easy installation.

Q4: What type of terminals does the T8850 use?

A4: The unit features screw clamp terminals for secure and reliable wiring.

Q5: Does the T8850 support hot-swapping of modules?

A5: Yes, it features a SmartSlot connection, which allows hot-swap replacement of output modules without system downtime.

Q6: What is the operating voltage of the T8850?

A6: The unit operates at 24V DC.

Q7: What is the physical size and weight of the T8850?

A7: Dimensions are 110 x 360 x 68 mm, and it weighs 0.95 kg.

Q8: What environmental conditions can the T8850 withstand?

A8: The T8850 operates within a temperature range of 0°C to +60°C and can be stored at -25°C to +70°C with 10%-95% humidity.
