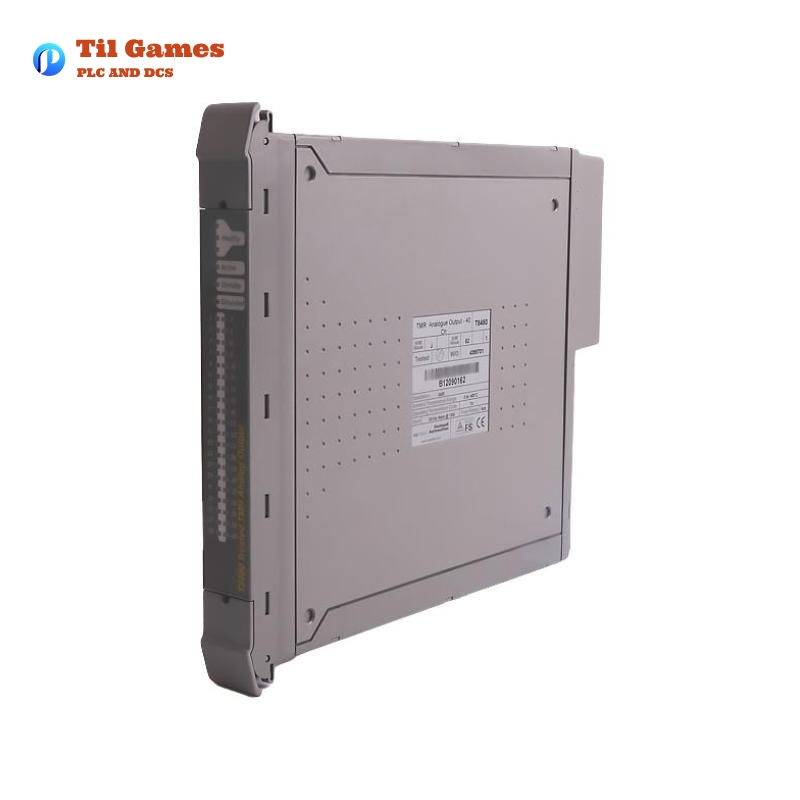

ICS Triplex T8480 Trusted TMR Analog Output Module

ICS Triplex T8480 Trusted TMR Analog Output Module

Manufacturer:ICS Triplex

Product Number:T8480

Product Type:Trusted TMR Analog Output Module

Origin:USA

Dimensions:266 x 31 x 303 mm

Weight:1.3 kg

Views:18

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8480-1-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8480-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8480-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8480-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

The ICS Triplex T8480 Trusted TMR Analog Output Module is a high-integrity, fault-tolerant analog output module designed for critical industrial applications. It features a Triple Modular Redundant (TMR) architecture, ensuring high reliability and continuous operation even in the event of a fault. The module is part of the Trusted® range of I/O modules, which are widely used in safety-critical systems such as oil and gas, power generation, and chemical processing.


Key Parameters

Parameter Specification
Number of Channels 40
Output Type 4-20 mA Analog Output
Power Supply 20V DC to 32V DC
Field Supply Voltage 18V DC to 32V DC
Maximum Current 0.9 A
Power Dissipation 28 W (Field Supply at max channel current), 22 W (System Supply)
Isolation 50V Reinforced (Power Group to Power Group), 250V Basic (Field Common)
Output Current Range 1 mA to 22 mA
Calibration Accuracy ±0.1% of Full Scale @ +25 °C
Overall Accuracy ±0.25% of Full Scale (0 °C to +60 °C)
Field Voltage Range 18V DC to 32V DC
Output Short Circuit Protection 22 mA into 0 Ω
Sequence of Events (SOE) 1 ms resolution, ±10 ms time stamp accuracy
Operating Temperature 0 °C to +60 °C (+32 °F to +140 °F)
Storage Temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative Humidity 10% – 95%, non-condensing
Dimensions 286 mm (Height) x 31 mm (Width) x 303 mm (Depth)
Weight 1.3 kg

Product Description

The T8480 Trusted TMR Analog Output Module is designed to provide reliable and precise analog output signals in safety-critical environments. It features 40 output channels, each capable of delivering a 4-20 mA current signal. The module is equipped with advanced diagnostics and self-testing capabilities, ensuring continuous monitoring of field wiring and load conditions. It can detect open circuits, short circuits, and other field wiring faults, providing real-time feedback to the control system.

The module’s TMR architecture ensures that it can tolerate a single fault without compromising system performance. Each channel is independently monitored, and the module can automatically switch to a standby module in the event of a fault, ensuring uninterrupted operation.


Applications

The T8480 Trusted TMR Analog Output Module is ideal for use in industries where safety and reliability are paramount. Key applications include:

  • Oil and Gas: Control of critical valves, pumps, and other equipment in upstream, midstream, and downstream operations.
  • Power Generation: Monitoring and control of turbines, generators, and other power plant equipment.
  • Chemical Processing: Precise control of chemical dosing, mixing, and other processes.
  • Nuclear Power: Safety systems and control of reactor components.
  • Marine and Offshore: Control of propulsion systems, ballast systems, and other critical equipment.

Product Advantages

  1. Triple Modular Redundancy (TMR): Ensures high fault tolerance and continuous operation even in the event of a single fault.
  2. Advanced Diagnostics: Real-time monitoring of field wiring and load conditions, with automatic detection of open circuits, short circuits, and other faults.
  3. Hot-Swap Capability: The module can be replaced online without shutting down the system, minimizing downtime.
  4. High Accuracy: Calibration accuracy of ±0.1% and overall accuracy of ±0.25% ensure precise control.
  5. Sequence of Events (SOE): 1 ms resolution for accurate event logging and fault analysis.
  6. Isolation: Reinforced isolation between power groups and field common ensures safe operation in harsh environments.
  7. Compact Design: The module’s compact dimensions (286 x 31 x 303 mm) and lightweight (1.3 kg) make it easy to install in tight spaces.
  8. Compliance: Certified for use in safety-critical applications, with TÜV certification for non-interfering applications.

Latest News Headline

“Rockwell Automation Enhances Trusted TMR Analog Output Module with Improved Diagnostics and TÜV Certification”

Rockwell Automation has announced the latest update to the ICS Triplex T8480 Trusted TMR Analog Output Module, featuring enhanced diagnostics, improved calibration accuracy, and TÜV certification for use in safety-critical applications. The update ensures even greater reliability and performance in demanding industrial environments.


Recommended Related Models

Model Description Key Parameters
T8431 Trusted TMR Analog Input Module 40 channels, 4-20 mA input, ±0.1% accuracy, 286 x 31 x 303 mm, 1.3 kg
T8460 Trusted TMR Digital Input Module 40 channels, 24V DC input, 286 x 31 x 303 mm, 1.3 kg
T8461 Trusted TMR Digital Output Module 40 channels, 24V DC output, 286 x 31 x 303 mm, 1.3 kg
T8470 Trusted TMR Relay Output Module 16 channels, 250V AC/DC, 286 x 31 x 303 mm, 1.3 kg
T8450 Trusted TMR Pulse Input Module 8 channels, 24V DC input, 286 x 31 x 303 mm, 1.3 kg
T8440 Trusted TMR Thermocouple Input Module 16 channels, Type J/K/T/E, 286 x 31 x 303 mm, 1.3 kg
T8420 Trusted TMR RTD Input Module 16 channels, PT100/PT1000, 286 x 31 x 303 mm, 1.3 kg
T8410 Trusted TMR HART Analog Input Module 16 channels, 4-20 mA with HART, 286 x 31 x 303 mm, 1.3 kg
T8400 Trusted TMR HART Analog Output Module 16 channels, 4-20 mA with HART, 286 x 31 x 303 mm, 1.3 kg
T8490 Trusted TMR Frequency Input Module 8 channels, 0-10 kHz, 286 x 31 x 303 mm, 1.3 kg

Top 10 Popular ICS Triplex Models

Model Description Key Parameters
T8431 Trusted TMR Analog Input Module 40 channels, 4-20 mA input, ±0.1% accuracy, 286 x 31 x 303 mm, 1.3 kg
T8460 Trusted TMR Digital Input Module 40 channels, 24V DC input, 286 x 31 x 303 mm, 1.3 kg
T8461 Trusted TMR Digital Output Module 40 channels, 24V DC output, 286 x 31 x 303 mm, 1.3 kg
T8470 Trusted TMR Relay Output Module 16 channels, 250V AC/DC, 286 x 31 x 303 mm, 1.3 kg
T8450 Trusted TMR Pulse Input Module 8 channels, 24V DC input, 286 x 31 x 303 mm, 1.3 kg
T8440 Trusted TMR Thermocouple Input Module 16 channels, Type J/K/T/E, 286 x 31 x 303 mm, 1.3 kg
T8420 Trusted TMR RTD Input Module 16 channels, PT100/PT1000, 286 x 31 x 303 mm, 1.3 kg
T8410 Trusted TMR HART Analog Input Module 16 channels, 4-20 mA with HART, 286 x 31 x 303 mm, 1.3 kg
T8400 Trusted TMR HART Analog Output Module 16 channels, 4-20 mA with HART, 286 x 31 x 303 mm, 1.3 kg
T8490 Trusted TMR Frequency Input Module 8 channels, 0-10 kHz, 286 x 31 x 303 mm, 1.3 kg
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the maximum number of channels supported by the T8480 module?
A1: The T8480 module supports 40 analog output channels.

Q2: Can the T8480 module be hot-swapped?
A2: Yes, the T8480 module supports hot-swapping, allowing it to be replaced without shutting down the system.

Q3: What is the output current range of the T8480 module?
A3: The output current range is 1 mA to 22 mA, with a recommended range of 4 mA to 20 mA.

Q4: What is the calibration accuracy of the T8480 module?
A4: The calibration accuracy is ±0.1% of full scale at +25 °C.

Q5: What types of faults can the T8480 module detect?
A5: The module can detect open circuits, short circuits, and field supply voltage faults.

Q6: What is the operating temperature range of the T8480 module?
A6: The operating temperature range is 0 °C to +60 °C.

Q7: Is the T8480 module certified for safety-critical applications?
A7: Yes, the module is TÜV certified for non-interfering applications.

Q8: What is the resolution of the Sequence of Events (SOE) feature?
A8: The SOE feature has a resolution of 1 ms.

Q9: Can the T8480 module be used in hazardous areas?
A9: The module is not approved for direct connection to hazardous areas and should be used with Intrinsic Safety Barrier devices.

Q10: What is the weight of the T8480 module?
A10: The module weighs 1.3 kg.
