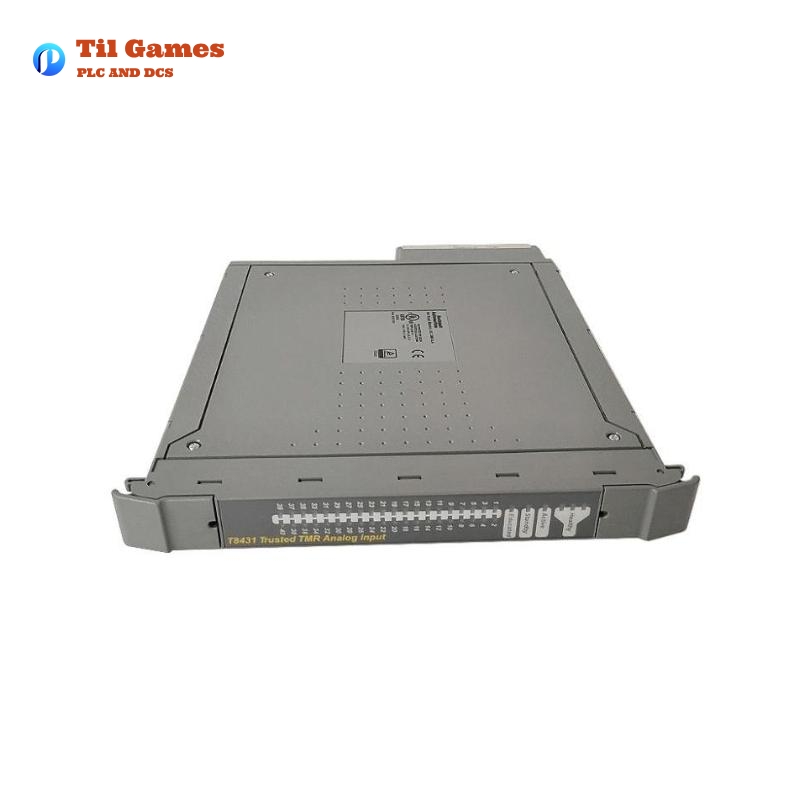

ICS Triplex T8431 Trusted TMR Analog Output Module

ICS Triplex T8431 Trusted TMR Analog Output Module

Manufacturer:ICS Triplex

Product Number:T8431

Product Type:Analog Output Module

Origin:USA

Dimensions:266 x 31 x 303 mm

Weight:1.149 kg

Views:14

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8431-1-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8431-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8431-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/T8431-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The ICS Triplex T8431 Trusted TMR Analog Output Module is designed for high-integrity control applications, providing a Triple Modular Redundant (TMR) architecture. It features 40 analog output channels, each offering fault-tolerant operation with built-in diagnostics.

Key Features

  • 40 Triple Modular Redundant (TMR) output channels per module.
  • Comprehensive diagnostics and self-test capabilities.
  • Automatic line monitoring for detecting open-circuit and short-circuit conditions.
  • 2500V impulse withstand isolation barrier for enhanced safety.
  • Automatic overcurrent protection per channel, eliminating the need for external fuses.
  • Onboard Sequence of Events (SOE) reporting with 1 ms resolution.
  • Hot-swappable module—supports live replacement using a Companion Slot or SmartSlot.
  • Front Panel LED indicators for each channel and overall module status.
  • TÜV certified for safety applications.

Technical Specifications

Parameter Details
Dimensions 266 mm × 31 mm × 303 mm
Weight 1.149 kg
Backplane Supply Voltage 20V DC to 32V DC
Power Consumption 22W
Field Supply Voltage 18V DC to 32V DC
Max Current Draw 0.9 A
Output Channels 40
Output Current Range 4 mA to 20 mA
Calibration Accuracy ±0.1% of Full Scale
Overall Accuracy ±0.25% of Full Scale
Isolation Voltage 2500V impulse withstand
Operating Temperature 0°C to +60°C
Storage Temperature -25°C to +70°C
Humidity Range 10% – 95% (non-condensing)
Short Circuit Protection 22mA into 0Ω
Event Resolution 1 ms

Applications

The T8431 Trusted TMR Analog Output Module is used in industries where safety and reliability are critical, including:

  • Oil and Gas Industry – Monitoring and controlling flow rates, pressures, and safety shutdowns.
  • Power Plants – Precision control of turbines, valves, and other equipment.
  • Chemical and Petrochemical Plants – Ensuring fail-safe operation of critical processes.
  • Pharmaceutical Manufacturing – Precision process control for product quality.
  • Aerospace and Defense – High-reliability control systems for mission-critical operations.

Product Advantages

  • High Reliability: Triple Modular Redundant (TMR) design provides fault tolerance.
  • Enhanced Safety: TÜV certified with automatic line monitoring.
  • Minimal Downtime: Hot-swappable capability allows for live replacement.
  • Advanced Diagnostics: Built-in SOE recording with 1 ms resolution.
  • Scalability: Works within the Trusted TMR system architecture for expanded I/O.
