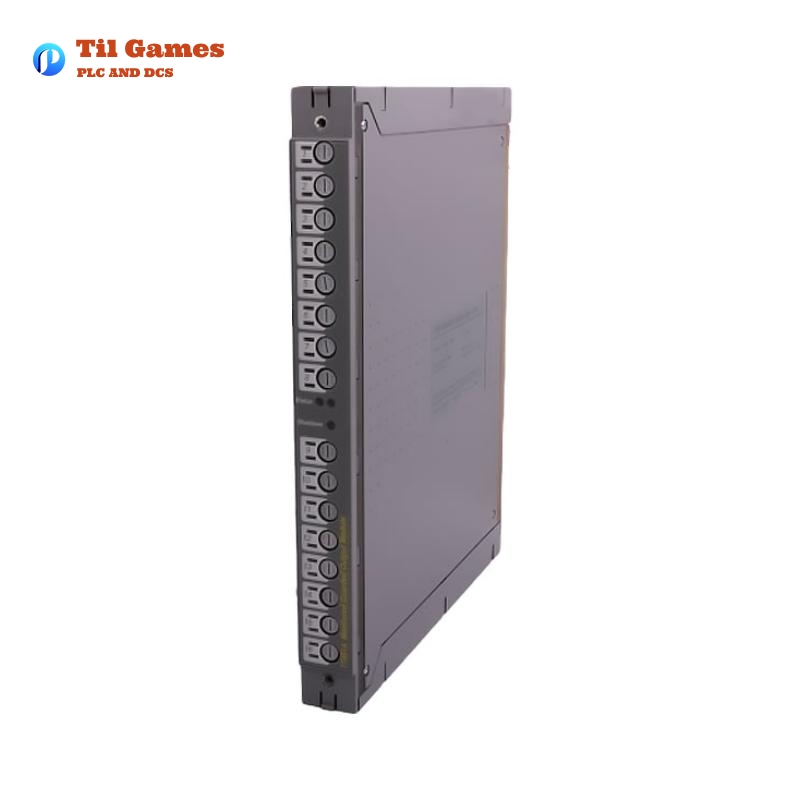

ICS Triplex T8403 Trusted TMR Digital Input Module

ICS Triplex T8403 Trusted TMR Digital Input Module

Manufacturer:ICS Triplex

Product Number:T8403

Product Type:Digital Input Module

Origin:USA

Dimensions:266 × 31 × 303 mm

Weight:1.18 kg

Views:25

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8403-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8403-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ICS-T8403-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/T8403-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The ICS Triplex T8403 is a Trusted Triple Modular Redundant (TMR) 24 Vdc Digital Input Module designed to interface with 40 field input devices. It features fault tolerance through TMR architecture, ensuring high availability and reliability. The module utilizes sigma-delta input circuits to measure input voltage and compare it against configurable threshold voltages. It also supports line monitoring to detect open and short circuits.

Key Features

  • 40 TMR input channels per module
  • Comprehensive automatic diagnostics and self-testing
  • Selectable line monitoring per channel to detect open circuit and short circuit field wiring faults
  • 2500V impulse withstand opto/galvanic isolation barrier
  • Onboard Sequence of Events (SOE) recording with 1 ms resolution
  • Hot-replaceable online using dedicated Companion Slot or SmartSlot configurations
  • Front panel input status LEDs for each channel indicate input status and field wiring faults
  • Certified to IEC 61508 SIL 3 by TÜV

Technical Specifications

Parameter Details
Input Voltage Range -6V to +36V DC
Input Impedance 5 kΩ
Number of Input Channels 40
Maximum Withstanding Voltage ±50 Vdc
Thresholds Configurable
Sequence of Events (SOE) Resolution 1 ms
Operating Temperature 0°C to +60°C
Storage Temperature -25°C to +70°C
Humidity 10% – 95%, non-condensing
Dimensions 266 mm × 31 mm × 303 mm
Weight 1.18 kg
Power Consumption 20W (Backplane Supply), Max Dissipation 29W
Isolation (Field Common) 50V Reinforced (Continuous), 250V Basic (Fault)
Certifications IEC 61508 SIL 3 Certified

Product Applications

The ICS Triplex T8403 Digital Input Module is widely used in safety-critical industrial applications, including:

  • Oil & Gas Industry: Safety Instrumented Systems (SIS) for controlling emergency shutdowns (ESD).
  • Power Generation: Monitoring and controlling digital signals in power plants.
  • Chemical Processing Plants: Ensuring reliable operation of hazardous processes.
  • Railway Signaling Systems: Used in train automation and railway safety control.
  • Pharmaceutical Manufacturing: Reliable control in automated production lines.
  • Aerospace & Defense: Critical infrastructure monitoring and command control systems.

Product Advantages

  • High Fault Tolerance: Uses a Triple Modular Redundant (TMR) system to ensure continued operation even in case of component failure.
  • Configurable Line Monitoring: Can detect open circuit and short circuit faults at the field wiring level.
  • High-Speed Fault Detection: Sigma-delta input circuits enable fast fault diagnosis.
  • Hot-Swap Capability: SmartSlot and Companion Slot configurations allow for online replacement without system shutdown.
  • Robust Isolation: 2500V impulse withstand barrier ensures protection from voltage surges.
  • IEC 61508 SIL 3 Certified: Meets the highest safety integrity level requirements.

Latest News & Reports on ICS Triplex T8403

Here are some recent reports and news headlines about the ICS Triplex T8403 Digital Input Module:

  1. “Rockwell Automation Enhances Trusted ICS Triplex Series for Increased Safety”
  2. “ICS Triplex T8403: Leading the Way in Industrial Fault Tolerant Systems”
  3. “New Upgrades in T8403 Digital Input Module for Enhanced Field Fault Monitoring”
  4. “Trusted TMR System Expands Capabilities for Critical Industrial Automation”
  5. “ICS Triplex Safety Systems: A Benchmark in Industrial Reliability”

Recommended Related Models

Here are 10 other models related to the ICS Triplex T8403:

Model Description
T8461 Trusted TMR 24V Digital Output Module
T8451 Trusted TMR 120V Digital Input Module
T8423 Trusted TMR 24V Analog Input Module
T8431 Trusted TMR 24Vdc Relay Output Module
T8471 Trusted TMR Pulse Input Module
T8442 Trusted TMR RTD Input Module
T8480 Trusted TMR Frequency Input Module
T8411 Trusted TMR 120Vdc Digital Output Module
T8491 Trusted TMR Thermocouple Input Module
T8800 Trusted TMR Process Historian Module

Top 10 Popular ICS Triplex Models

These are the most commonly used ICS Triplex models across industries:

Model Description
T8403 Trusted TMR 24Vdc Digital Input Module
T8461 Trusted TMR 24V Digital Output Module
T8431 Trusted TMR Relay Output Module
T8442 Trusted TMR RTD Input Module
T8471 Trusted TMR Pulse Input Module
T8451 Trusted TMR 120V Digital Input Module
T8423 Trusted TMR 24V Analog Input Module
T8480 Trusted TMR Frequency Input Module
T8411 Trusted TMR 120Vdc Digital Output Module
T8491 Trusted TMR Thermocouple Input Module
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the main purpose of the ICS Triplex T8403 module?
A1: It is a high-reliability digital input module used in critical industrial control and safety applications.

Q2: What is the advantage of Triple Modular Redundancy (TMR)?
A2: TMR ensures high fault tolerance by using three independent input channels per field input, allowing the system to continue operating even if one fails.

Q3: Can the T8403 module be replaced without shutting down the system?
A3: Yes, it supports hot swapping using SmartSlot and Companion Slot configurations.

Q4: What safety standards does the T8403 module comply with?
A4: It is IEC 61508 SIL 3 certified, making it suitable for safety-critical environments.

Q5: How does the module detect wiring faults?
A5: It uses line monitoring features to detect open circuits and short circuits in field wiring.

Q6: What industries commonly use the ICS Triplex T8403?
A6: Oil & Gas, Power Generation, Chemical Processing, Railways, Aerospace, and Pharmaceuticals.

Q7: What is the power consumption of the T8403 module?
A7: It consumes 20W from the backplane and has a maximum dissipation of 29W.

Q8: What is the input voltage range for field devices?
A8: The module operates between -6V to +36V DC.

Q9: What is the resolution of the Sequence of Events (SOE) recording?
A9: It records events with a 1 millisecond (ms) resolution.

Q10: How does the module indicate its status?
A10: The front panel has LEDs that show the status of each input channel and the overall module health.
