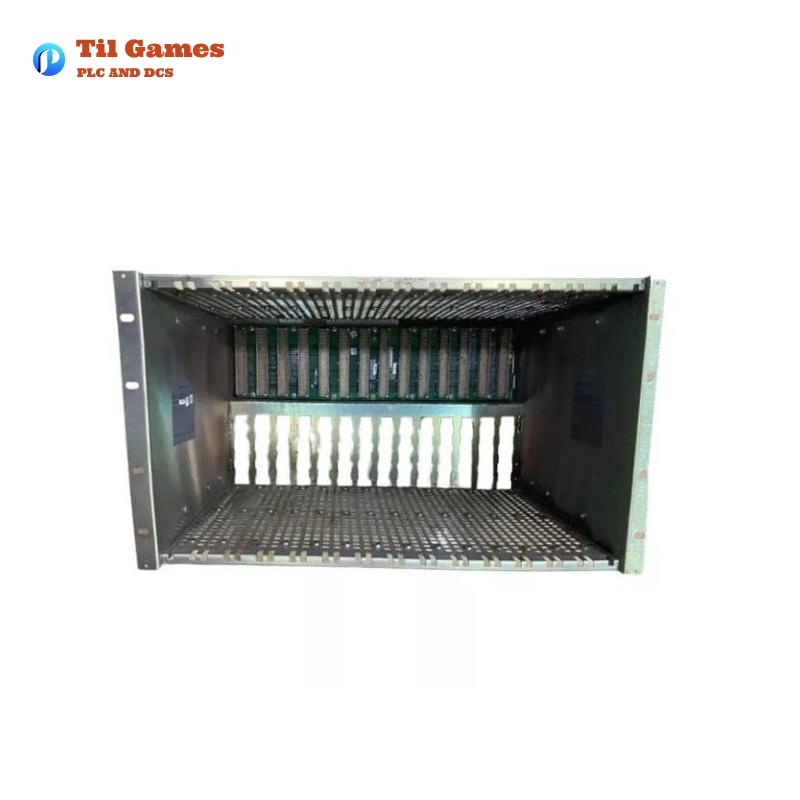

Product Overview: ICS Triplex T8300 Trusted Expander Chassis
The ICS Triplex T8300 Trusted Expander Chassis is a modular platform designed to house the Trusted® Expander Processors and Trusted Input/Output (I/O) Modules. This flexible and scalable system can be either swing frame or fixed frame mounted, making it adaptable to various industrial control applications. The chassis also features an Inter-Module Bus backplane, which provides essential electrical interconnections and services for the modules.
The chassis can be mounted using a rear panel by adding the Panel Mounting Kit T8380, which includes a pair of brackets with rear-facing ears. This feature enhances the versatility of the chassis, allowing it to fit into different operational environments.
Key features include multiple Trusted Expander Processor and I/O module slots, cable entry options, and convection cooling for efficient thermal management. The T8300 chassis provides an easy-to-install solution for industrial automation and process control applications.
Key Features:
- Processor Slots: 2 x 30 mm (1.2 in) Trusted Expander Processor Slots.
- I/O Module Slots: 12 x 30 mm (1.2 in) single-width Trusted I/O Module Slots.
- Cooling: Convection cooling of modules through the chassis.
- Mounting Options: Can be swing frame or fixed frame mounted; optional rear panel mounting with T8380 kit.
- Electrical Connectivity: The Inter-Module Bus backplane ensures seamless communication between modules.
- Connector Capability: 32, 48, 64, and 96-way DIN 41612 I/O port connector capability.
- Assembly: Fast assembly with minimal tooling and parts required.
- No User-Serviceable Parts: Designed for industrial use with no internal user-serviceable components.
Product Applications
The ICS Triplex T8300 Trusted Expander Chassis is ideal for a variety of industrial control systems, particularly in process automation, safety-critical applications, and data acquisition systems. It provides a reliable and scalable platform for integrating Trusted® Expander Processors and I/O Modules. Some typical applications include:
- Industrial Automation: Enhancing control systems in manufacturing, oil & gas, power, and water industries.
- Process Control Systems: Used in environments requiring real-time, reliable control and data processing.
- Safety Systems: Enabling advanced safety measures with integrated I/O modules for monitoring and control.
- Energy Management: Managing energy systems with high reliability and robust modular design.
Product Advantages
- Scalability: The Trusted Expander Chassis offers scalability by providing multiple processor and I/O module slots, making it suitable for both small and large systems.
- Reliability: Built for industrial environments, the chassis is designed with robust features and is ideal for critical control applications.
- Ease of Installation: The chassis supports easy and fast assembly, reducing installation time and cost.
- Convection Cooling: Provides efficient cooling through convection, eliminating the need for complex cooling systems.
- Customization: The modular design allows for flexibility in expanding or modifying the system as per the application needs.
- Enhanced Connectivity: The I/O ports support a variety of configurations, ensuring compatibility with various industrial equipment.
Latest Product Reports
- “ICS T8300 Trusted Expander Chassis: A Game Changer in Process Control Automation”
- “Efficiency Boost in Industrial Applications with the ICS T8300 Expander Chassis”
- “ICS T8300: Optimized for Safety and Reliability in Critical Infrastructure”
- “Expanding Possibilities: ICS T8300 Trusted Expander Chassis for Modular Control Systems”
- “Industrial Process Control Revolutionized by ICS T8300 Trusted Expander Chassis”
Recommended Models from ICS Triplex Series
| Model Number | Description | Processor Slots | I/O Slots | Weight | Dimensions (mm) | Connector Type |
|---|---|---|---|---|---|---|
| T8300 | Trusted Expander Chassis | 2 | 12 | 5 kg | 268 x 483 x 312 | 32, 48, 64, 96-way |
| T8340 | Trusted I/O Module | 2 | 16 | 6 kg | 300 x 500 x 350 | 32, 48, 64, 96-way |
| T8380 | Panel Mounting Kit | – | – | 1 kg | – | – |
| T8320 | Trusted Expander Processor | 2 | 8 | 4.5 kg | 250 x 450 x 310 | 32, 48-way |
| T8310 | Trusted I/O Interface Module | 4 | 10 | 4.8 kg | 270 x 480 x 320 | 32, 64-way |
| T8350 | Trusted Processor Expansion Module | 2 | 12 | 5.2 kg | 280 x 490 x 315 | 64, 96-way |
| T8360 | Trusted Safety I/O Module | 2 | 12 | 5 kg | 280 x 480 x 315 | 32, 48-way |
| T8305 | Trusted Processor and I/O Combo | 2 | 16 | 5.5 kg | 290 x 500 x 325 | 32, 48-way |
| T8370 | Trusted Extended I/O Module | 4 | 12 | 6 kg | 310 x 510 x 330 | 32, 48, 96-way |
| T8390 | Trusted Expander Expansion Chassis | 2 | 12 | 5.5 kg | 275 x 485 x 320 | 48, 64, 96-way |
ICS Triplex Popular Models
| Model Number | Description | Processor Slots | I/O Slots | Weight | Dimensions (mm) | Connector Type |
|---|---|---|---|---|---|---|
| T8340 | Trusted I/O Module | 2 | 16 | 6 kg | 300 x 500 x 350 | 32, 48, 64, 96-way |
| T8310 | Trusted I/O Interface Module | 4 | 10 | 4.8 kg | 270 x 480 x 320 | 32, 64-way |
| T8320 | Trusted Expander Processor | 2 | 8 | 4.5 kg | 250 x 450 x 310 | 32, 48-way |
| T8360 | Trusted Safety I/O Module | 2 | 12 | 5 kg | 280 x 480 x 315 | 32, 48-way |
| T8380 | Panel Mounting Kit | – | – | 1 kg | – | – |
| T8305 | Trusted Processor and I/O Combo | 2 | 16 | 5.5 kg | 290 x 500 x 325 | 32, 48-way |
| T8350 | Trusted Processor Expansion Module | 2 | 12 | 5.2 kg | 280 x 490 x 315 | 64, 96-way |
| T8370 | Trusted Extended I/O Module | 4 | 12 | 6 kg | 310 x 510 x 330 | 32, 48, 96-way |
| T8390 | Trusted Expander Expansion Chassis | 2 | 12 | 5.5 kg | 275 x 485 x 320 | 48, 64, 96-way |
| T8300 | Trusted Expander Chassis | 2 | 12 | 5 kg | 268 x 483 x 312 | 32, 48, 64, 96-way |
FAQ
FAQ (Frequently Asked Questions)
Q1: What is the weight of the ICS T8300 Trusted Expander Chassis?
A1: The weight of the ICS T8300 Trusted Expander Chassis is 5 kg.
Q2: What is the chassis size?
A2: The dimensions of the ICS T8300 Trusted Expander Chassis are 268 x 483 x 312 mm.
Q3: Can the ICS T8300 chassis be used in hazardous environments?
A3: Yes, the ICS T8300 chassis is designed for industrial environments, including hazardous locations when installed properly with suitable protection.
Q4: How many I/O modules can the ICS T8300 chassis accommodate?
A4: The ICS T8300 chassis can accommodate 12 x 30 mm (1.2 in) single-width Trusted I/O Modules.
Q5: What type of cooling does the ICS T8300 chassis use?
A5: The ICS T8300 chassis uses convection cooling for efficient thermal management of the modules.
Q6: Can the chassis be rear-mounted?
A6: Yes, the ICS T8300 chassis can be rear-mounted with the addition of the Panel Mounting Kit T8380.
Q7: What is the I/O port connector type?
A7: The ICS T8300 chassis supports 32, 48, 64, and 96-way DIN 41612 I/O port connectors.
Q8: Is the ICS T8300 chassis easy to assemble?
A8: Yes, the ICS T8300 chassis features fast assembly with minimal tooling and parts required.
Q9: Does the ICS T8300 chassis include any user-serviceable parts?
A9: No, the ICS T8300 chassis does not have any user-serviceable parts inside.
Q10: What industries is the ICS T8300 chassis best suited for?
A10: The ICS T8300 chassis is ideal for industrial automation, process control systems, safety systems, and energy management.
