Product Overview

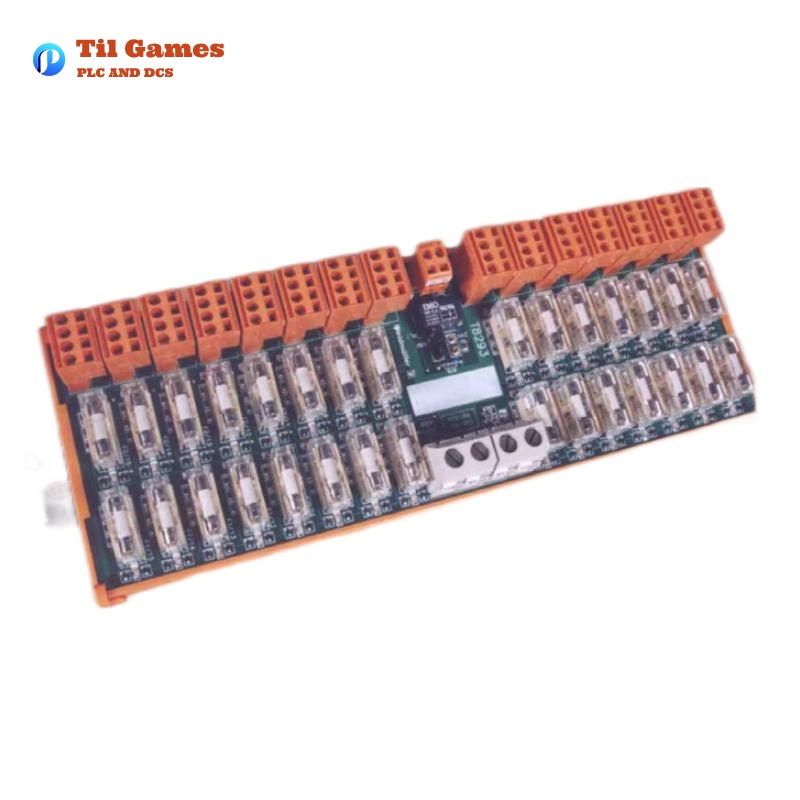

ICS Triplex T8293 Trusted Power Distribution Unit is a high-quality, reliable, and efficient power distribution system designed to provide dual redundant fused power outputs. It is ideal for use in industrial automation applications where continuous and safe operation is crucial. The device is designed to be mounted on a DIN rail and operates from dual redundant 24 Vdc or 48 Vdc incoming power feeders.
The T8293 Trusted® Power Distribution Unit offers 15 dual redundant fuse-protected outputs, ensuring stable power distribution to critical field equipment. On-board monitoring circuits give real-time visual indications of fuse statuses, and the unit features a relay contact output for alarm notifications in case of fuse failures.
Key Features
- Fifteen 24 Vdc or 48 Vdc, 3.15 A fuse-protected outputs – Suitable for connecting to Trusted Field Termination Assemblies (FTAs) or other equipment.
- Visual status indications for both input power supply and individual fuse failure.
- Relay contact output for a common fuse failure alarm.
- Link-selectable supply voltage options for greater flexibility in configuration.
- DIN rail mounting for easy installation and space-saving in industrial environments.
Product Parameters
| Feature | Description |
|---|---|
| Number of Outputs | 15 dual redundant fuse-protected outputs |
| Fuse Rating | 3.15 A each |
| Input Voltage Options | 24 Vdc or 48 Vdc |
| Mounting Type | DIN rail mounting |
| Fuse Status Indication | Red LED for individual fuse failure |
| Common Alarm | Volt-free relay contact output |
| Supply Voltage Options | Link-selectable 24 Vdc or 48 Vdc |
| Dimensions | 79 x 285 x 109 mm |
| Weight | 0.576 kg |
Applications
- Industrial Automation: Provides power distribution to field termination assemblies (FTAs) in industrial automation systems.
- Critical Equipment Power Supply: Suitable for power supply needs in mission-critical applications where uptime is essential.
- Control Systems: Perfect for providing reliable power to control panels and other sensitive field devices in automated environments.
- Telecommunications: Can be used in telecom applications for reliable power distribution to remote equipment and systems.
- Energy Management Systems: Can power sensors and devices in energy monitoring and management systems.
Product Advantages
- Redundancy: Dual redundant power inputs ensure system reliability even in the event of a power failure.
- Fuse Protection: Protects sensitive equipment by ensuring fuse protection on every output.
- Easy Monitoring: Real-time LED indicators and common fuse alarm outputs allow for quick troubleshooting and maintenance.
- Compact and Space-Efficient: The compact design and DIN rail mounting make it easy to install in confined spaces.
- Flexible Voltage Options: Link-selectable 24 Vdc or 48 Vdc input voltage ensures compatibility with a wide range of systems.
Latest Product Report Headlines
- “ICS T8293 Power Distribution Unit: The Backbone of Reliable Industrial Power”
- “Maximizing Equipment Uptime with the Trusted® Power Distribution Unit”
- “ICS Launches Trusted® Power Distribution Unit for Secure and Redundant Power Delivery”
- “The Future of Industrial Automation: ICS T8293 Power Distribution Unit”
- “ICS Introduces Reliable Power Distribution for Critical Field Equipment”
- “ICS Power Distribution Solutions Ensure Industrial Automation Reliability”
- “Powering the Future: Trusted® Power Distribution Unit Now Available”
- “ICS T8293: The Ultimate Solution for Power Distribution in Harsh Environments”
- “Smart Power Management with ICS Trusted® Power Distribution Systems”
- “Trusted® Power Distribution Unit: Protecting Equipment from Power Failures”
Related Models (ICS T8293 Series)
| Model Number | Description | Power Inputs | Number of Outputs | Fuse Rating | Mounting Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| ICS T8291 | Power Distribution Unit for Field Devices | 24 Vdc / 48 Vdc | 12 outputs | 3.15 A | DIN rail mounting | 79 x 285 x 109 | 0.58 |
| ICS T8294 | Enhanced Power Distribution Unit for Redundant Systems | 24 Vdc / 48 Vdc | 16 outputs | 3.15 A | DIN rail mounting | 79 x 285 x 109 | 0.60 |
| ICS T8301 | Power Unit for Automation Control Systems | 24 Vdc / 48 Vdc | 8 outputs | 3.15 A | DIN rail mounting | 79 x 250 x 100 | 0.55 |
| ICS T8302 | Compact Power Distribution for Remote Equipment | 24 Vdc / 48 Vdc | 6 outputs | 3.15 A | DIN rail mounting | 70 x 220 x 90 | 0.45 |
| ICS T8303 | Modular Power Distribution for Field Devices | 24 Vdc / 48 Vdc | 20 outputs | 3.15 A | DIN rail mounting | 100 x 320 x 120 | 0.75 |
| ICS T8304 | Power Distribution with Integrated Monitoring | 24 Vdc / 48 Vdc | 10 outputs | 3.15 A | DIN rail mounting | 79 x 275 x 105 | 0.57 |
| ICS T8305 | Industrial Power Distribution with Alarm System | 24 Vdc / 48 Vdc | 14 outputs | 3.15 A | DIN rail mounting | 90 x 290 x 110 | 0.62 |
| ICS T8310 | High-Performance Power Distribution Unit for Harsh Environments | 24 Vdc / 48 Vdc | 18 outputs | 3.15 A | DIN rail mounting | 95 x 305 x 115 | 0.68 |
| ICS T8320 | Redundant Power Supply for Critical Control Systems | 24 Vdc / 48 Vdc | 12 outputs | 3.15 A | DIN rail mounting | 85 x 280 x 105 | 0.60 |
| ICS T8321 | Advanced Power Distribution for High-Demand Systems | 24 Vdc / 48 Vdc | 16 outputs | 3.15 A | DIN rail mounting | 92 x 295 x 110 | 0.66 |
ICS Brand Popular Models
| Model Number | Description | Power Inputs | Number of Outputs | Fuse Rating | Mounting Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| ICS PDU-101 | High-Efficiency Power Distribution Unit | 24 Vdc / 48 Vdc | 8 outputs | 5 A | Rack mount | 100 x 300 x 120 | 1.20 |
| ICS PDU-102 | Reliable Power Distribution for Telecommunications | 24 Vdc / 48 Vdc | 12 outputs | 5 A | Rack mount | 110 x 320 x 130 | 1.25 |
| ICS PDU-103 | Compact Power Distribution for Remote Systems | 24 Vdc / 48 Vdc | 10 outputs | 4 A | DIN rail mounting | 85 x 275 x 105 | 0.58 |
| ICS PDU-104 | Dual Redundant Power Distribution for Automation | 24 Vdc / 48 Vdc | 16 outputs | 5 A | DIN rail mounting | 90 x 290 x 110 | 0.65 |
| ICS PDU-105 | Power Distribution with Monitoring Features | 24 Vdc / 48 Vdc | 14 outputs | 5 A | Rack mount | 95 x 310 x 120 | 1.35 |
| ICS PDU-106 | Advanced Power Distribution for Control Systems | 24 Vdc / 48 Vdc | 12 outputs | 4 A | Rack mount | 80 x 260 x 110 | 1.10 |
| ICS PDU-107 | Industrial Power Distribution Unit with Alarm | 24 Vdc / 48 Vdc | 16 outputs | 3 A | DIN rail mounting | 75 x 285 x 105 | 0.55 |
| ICS PDU-108 | Redundant Power Supply for Critical Systems | 24 Vdc / 48 Vdc | 8 outputs | 3 A | DIN rail mounting | 70 x 250 x 100 | 0.50 |
| ICS PDU-109 | Reliable Power for Industrial Applications | 24 Vdc / 48 Vdc | 20 outputs | 5 A | DIN rail mounting | 100 x 320 x 120 | 1.10 |
| ICS PDU-110 | High-Performance Power Distribution for Automation | 24 Vdc / 48 Vdc | 12 outputs | 4 A | Rack mount | 95 x 310 x 115 | 1.30 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range for the ICS T8293 Power Distribution Unit?
A1: The ICS T8293 supports dual input voltage options of 24 Vdc or 48 Vdc.
Q2: How many outputs does the ICS T8293 provide?
A2: The unit provides 15 dual redundant fuse-protected outputs.
Q3: How can I mount the ICS T8293 Power Distribution Unit?
A3: The ICS T8293 is designed for DIN rail mounting, making installation easy and space-efficient.
Q4: Does the ICS T8293 offer any monitoring or alarm features?
A4: Yes, it includes visual LED indications for fuse failures and a common alarm signal via a volt-free relay contact.
Q5: What is the fuse rating for each output on the ICS T8293?
A5: Each output is protected by a 3.15 A fuse.
Q6: Can I select different voltage options for the ICS T8293?
A6: Yes, the unit has link-selectable supply voltage options between 24 Vdc and 48 Vdc.
Q7: What is the dimension of the ICS T8293 unit?
A7: The dimensions are 79 x 285 x 109 mm.
Q8: How much does the ICS T8293 weigh?
A8: The weight of the ICS T8293 is 0.576 kg.
Q9: What type of equipment can be powered using the ICS T8293?
A9: It is suitable for powering field termination assemblies (FTAs) and other critical industrial equipment.
Q10: Is the ICS T8293 suitable for use in harsh environments?
A10: Yes, the ICS T8293 is designed to operate reliably in industrial and automation environments.
