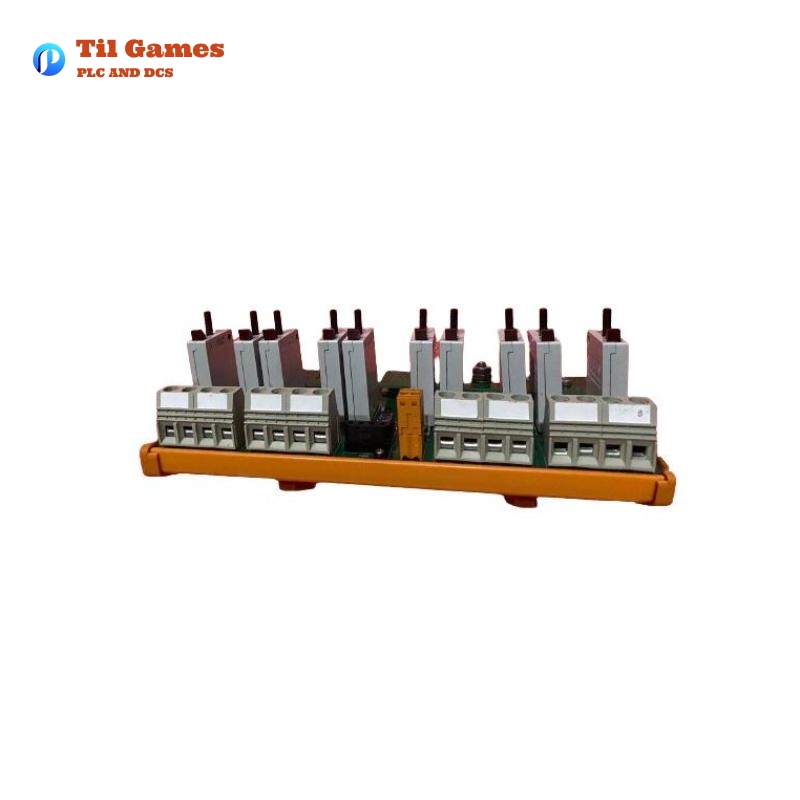

ICS Triplex T8292 Trusted Power Distribution Unit (PDU) Overview

The ICS Triplex T8292 Trusted Power Distribution Unit (PDU) is a high-performance solution for managing 24 Vdc power distribution in critical applications. Designed with redundancy and safety in mind, the T8292 PDU offers N+1 or 100% redundant power distribution to ensure continuous system operation even in the event of a failure. This unit is ideally suited for industrial environments where reliability and uptime are crucial, particularly when used in control systems, instrumentation, or fan trays.

Product Features

  • Dual 5-Channel MCB Design: The PDU features four dual 24 Vdc, 20 A MCB-protected outputs, ideal for direct connection to a Trusted Controller/Expander Chassis or for upstream protection of the Trusted 15-way Fused Distribution Unit (T8293). Additionally, it has one dual 24 Vdc, 3 A MCB-protected output for connecting to low-power devices like Trusted Fan Trays.

  • Local Monitoring: The PDU includes monitoring circuits that provide local visual indication of individual MCB trip status through LEDs. This enables quick identification of faults.

  • Alarm System: A volt-free contact provides a common alarm output for MCB status, facilitating centralized monitoring and control.

  • Flexible Redundancy Options: The unit can be configured for N+1 or 100% redundant power distribution, ensuring uninterrupted power even during maintenance or failure events.

  • DIN Rail Mountable: The unit is designed to be mounted on a standard DIN rail, making installation easy and convenient in industrial control panels.

Applications

The ICS T8292 PDU is used in a wide variety of critical applications where power distribution needs to be reliable and redundant. Some of the most common uses include:

  • Trusted Control Systems: For powering controllers, expanders, and field devices that require stable 24 Vdc power.
  • Industrial Automation: For connecting power to equipment that requires a dependable and redundant power supply, such as sensors, actuators, and control systems.
  • Fan Trays and Cooling Systems: For low-power devices that need a stable power supply.
  • Uninterruptible Power Supply Systems: To ensure continued operation of essential systems when part of a larger, redundant power solution.

Advantages

  • Redundancy and Reliability: Ensures continued power distribution even during component failures, enhancing system uptime.
  • Versatile Power Output: Suitable for both high-power devices (up to 20 A) and low-power equipment (3 A), offering flexible solutions for diverse industrial applications.
  • Easy Monitoring: Visual and relay contact indicators provide clear status feedback for operational awareness.
  • Compact Design: Mounts easily on a DIN rail for integration into control systems without taking up excessive space.
  • Safety: MCB-protected outputs safeguard devices from power surges and faults.

Product Specifications

Specification Details
Model Number ICS T8292 Trusted Power Distribution Unit
Input Voltage 24 Vdc
Output Channels 5 channels
MCB Output Four 24 Vdc, 20 A dual MCB outputs, One 24 Vdc, 3 A dual MCB output
Alarm Output Volt-free common alarm contact
Dimensions (W x H x D) 108 x 240 x 109 mm
Weight 0.823 kg
Mounting Type Standard DIN rail
Redundancy Options N+1 or 100% redundant distribution
MCB Trip Indicators LED status indicators for individual MCBs
Temperature Range 0 to 55°C
Certifications CE, UL

Top 10 Similar Products (Trusted Series)

Model Description MCB Output Redundancy Dimensions (W x H x D) Weight
T8293 Trusted 15-Way Fused Distribution Unit 15-way fused outputs N+1 redundancy 108 x 240 x 120 mm 1.2 kg
T8294 Trusted Power Distribution Unit 24V (10 A) 10 A MCB-protected outputs N+1 redundancy 120 x 250 x 110 mm 0.9 kg
T8295 Trusted Power Distribution Unit 48V 48 Vdc MCB-protected outputs N+1 redundancy 130 x 270 x 130 mm 1.4 kg
T8296 Trusted Dual Power Distribution Unit 24V Dual 20 A MCB-protected 100% redundancy 140 x 260 x 110 mm 1.1 kg
T8297 Trusted Single Phase Power Distribution Unit Single phase 24 Vdc output N+1 redundancy 100 x 240 x 100 mm 0.75 kg
T8298 Trusted PDU with Overload Protection 20 A MCB-protected outputs N+1 redundancy 108 x 250 x 120 mm 0.85 kg
T8299 Trusted High-Power Distribution Unit 48V 48 Vdc outputs 100% redundancy 130 x 280 x 140 mm 1.5 kg
T8300 Trusted Power Distribution Unit for Critical Loads Multiple 20 A MCB outputs N+1 redundancy 150 x 260 x 120 mm 1.3 kg
T8301 Trusted Multi-Channel Power Distribution Unit Up to 24 outputs N+1 redundancy 160 x 270 x 130 mm 1.6 kg
T8302 Trusted Redundant Power Unit for Fan Trays Dual 3 A MCB outputs 100% redundancy 120 x 240 x 110 mm 0.8 kg

ICS Brand Popular Models

Model Description MCB Output Redundancy Dimensions (W x H x D) Weight
T8290 Trusted Power Distribution Module Single 20 A output N+1 redundancy 120 x 250 x 100 mm 0.95 kg
T8289 Trusted Power Supply and Distribution Unit Dual 10 A MCB-protected N+1 redundancy 130 x 270 x 120 mm 1.1 kg
T8288 Trusted Backup Power Distribution Unit 15 A outputs 100% redundancy 100 x 240 x 110 mm 0.9 kg
T8287 Trusted Modular Power Supply for Industrial Use 5-20 A MCB outputs N+1 redundancy 140 x 250 x 130 mm 1.3 kg
T8286 Trusted High-Power Distribution Unit 48 Vdc MCB outputs 100% redundancy 150 x 270 x 140 mm 1.4 kg
T8285 Trusted Industrial Power Distribution Unit Multiple 24 Vdc outputs N+1 redundancy 130 x 240 x 120 mm 1.2 kg
T8284 Trusted Power Supply for Control Panels 10 A outputs N+1 redundancy 110 x 230 x 100 mm 0.8 kg
T8283 Trusted Power Distribution for Critical Infrastructure 20 A outputs 100% redundancy 140 x 270 x 110 mm 1.5 kg
T8282 Trusted Industrial Control PDU Dual 20 A outputs N+1 redundancy 100 x 240 x 100 mm 0.9 kg
T8281 Trusted Safety Power Distribution Unit 24 Vdc outputs 100% redundancy 120 x 260 x 120 mm 1.0 kg
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the maximum current output of each channel in the ICS T8292 PDU?

A1: Each channel can provide up to 20 A of power, with one dedicated channel capable of delivering 3 A for low-power devices.

Q2: How is the redundancy configured in the ICS T8292 PDU?

A2: The PDU supports both N+1 and 100% redundant configurations, ensuring continuous operation during maintenance or failure.

Q3: Can the ICS T8292 be used in outdoor applications?

A3: The T8292 is designed for indoor use in industrial environments. Ensure the temperature and humidity levels remain within the specified operating range.

Q4: Does the ICS T8292 support monitoring of individual MCBs?

A4: Yes, the unit has LED indicators for each MCB that show the trip status, along with a common alarm contact for remote monitoring.

Q5: What kind of mounting system does the ICS T8292 PDU use?

A5: The ICS T8292 is designed for easy mounting on a standard DIN rail.

Q6: What protection mechanisms are included in the ICS T8292?

A6: The unit includes MCBs for overcurrent protection, safeguarding connected equipment from power surges and faults.

Q7: How does the ICS T8292 indicate a fault in the system?

A7: The PDU features local LED indicators and a common alarm output via a volt-free contact to signal any issues.

Q8: Is there an option for linking multiple ICS T8292 units together?

A8: Yes, the ICS T8292 can be linked for larger power distribution setups, allowing for flexible scalability.

Q9: What is the operating temperature range for the ICS T8292?

A9: The ICS T8292 operates within a temperature range of 0 to 55°C.

Q10: How is the ICS T8292 maintained or serviced?

A10: Regular maintenance involves checking MCB status, ensuring proper ventilation, and confirming the correct output connections.
