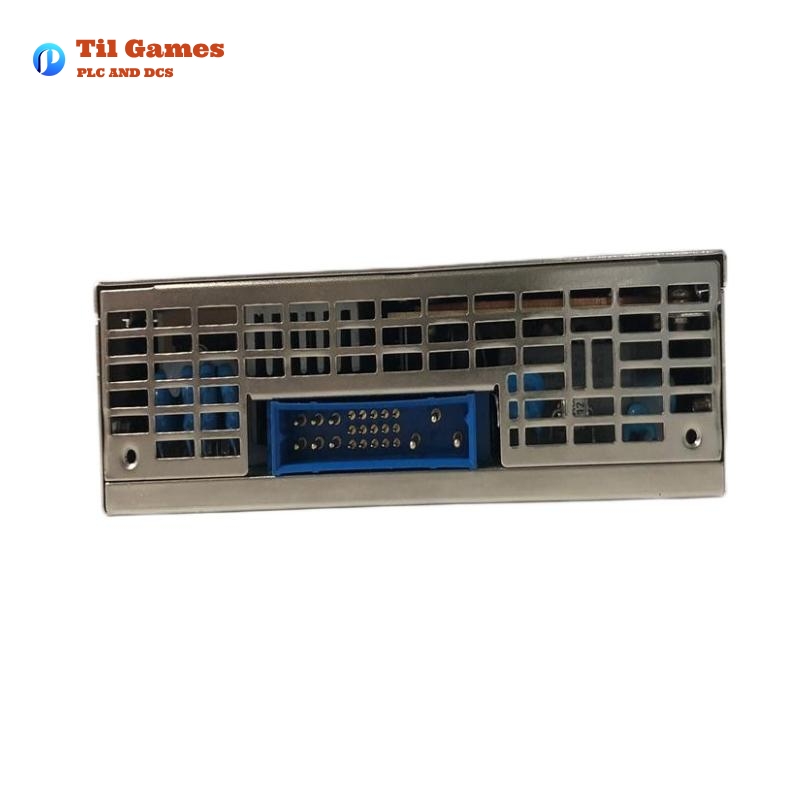

ICS Triplex T8231 Power Pack

ICS Triplex T8231 Power Pack

Manufacturer:ICS Triplex

Product Number: T8231

Product Type:Power Pack

Origin:USA

Dimensions:276 x 114.8 x 40.8 mm

Weight:2.7 kg

Views:19

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/T8231-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/T8231-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/T8231-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/T8231.jpg
Company Information
E-mail sales@xmjzjsgs.com
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

ICS Triplex T8231 Power Pack Overview

The ICS Triplex T8231 Power Pack is part of a distributed power system designed for high-reliability applications, providing a versatile power solution in industrial settings. The power pack operates efficiently, converting mains voltages (either 110 Vac or 240 Vac) into stable 24 Vdc output, with a maximum power of 750 W. It is ideal for applications requiring consistent and redundant power.

Product Features

  • Universal Input Voltage: The T8231 can handle an input voltage range from 90 Vac to 264 Vac, providing compatibility with a wide range of power sources.

  • Output Voltage: It delivers a 24 Vdc output, suitable for powering Trusted systems and other industrial applications.

  • Hot-Swappable: The power pack is designed for hot swap, meaning it can be replaced without powering down the system.

  • N+1 Redundancy: The system can be configured for redundancy, ensuring uninterrupted power supply.

  • Current Sharing: The power packs share the load efficiently, enhancing system reliability.

  • Power Factor Correction: Ensures efficient power usage by minimizing the power factor deviation.

  • Diagnostic Contacts: Built-in diagnostics alert users to potential faults like over-temperature or fan failures.

  • Compact Design: It fits into a 1U power shelf configuration, making it easy to integrate into racks with limited space.

Product Parameters

Parameter Value
Input Voltage 90-264 Vac
Input Frequency 47-63 Hz
Output Voltage 24 Vdc
Output Current 31.25 A
Max Power Output 750 W
Efficiency 80-84%
Power Factor 0.95-0.99
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 85°C
Weight 2.7 kg
Dimensions 276 x 114.8 x 40.8 mm
Ripple (20 MHz bandwidth) 150 mVp-p
Noise (20 MHz bandwidth) 300 mVp-p
MTBF 4 x 10^5 hours

Advantages of ICS Triplex T8231

  • Redundancy and Reliability: Offers N+1 redundancy, ensuring that if one power pack fails, the system can continue to operate without disruption.

  • Hot-Swappable: No downtime is required for replacement or maintenance, a critical feature in continuous operations.

  • Efficient Power Delivery: Provides high efficiency, reducing energy costs and system heat generation.

  • Flexible Configuration: Multiple power packs can be combined to meet the specific power needs of the system, whether for redundancy or increased power capacity.

  • Comprehensive Diagnostics: Built-in diagnostic features for both input and output, alerting users to potential issues, thus preventing system failures.

Applications

  • Industrial Control Systems: Ideal for use in high-availability industrial control environments where system uptime is critical.

  • Process Automation: Used in applications where continuous, reliable power is needed to maintain system operations and safety.

  • Energy Management: Powers critical infrastructure like sensors, controllers, and actuators in distributed control systems.

  • Safety Systems: Can be deployed in systems that require fault-tolerant and reliable power delivery to maintain safe operations.

Recommended Related Products

Model Description Power Output Input Voltage Dimensions Weight
T8232 28 Vdc 750 W Power Pack 750 W 90-264 Vac 276 x 114.8 x 40.8 mm 2.7 kg
T8230 Power Shelf (1U, 3 slots) 2250 W 90-264 Vac 483 x 340 x 43 mm 4.4 kg
T8233 Power Port N/A 90-264 Vac 110 x 100 x 40 mm 0.6 kg
T8234 Power Controller (1U) N/A 90-264 Vac 483 x 340 x 43 mm 1.0 kg
T8235 Power Shield N/A N/A 43 x 64 x 40 mm 0.1 kg
TC-323 Power Shelf Interconnect N/A N/A 1.0 m length 0.5 kg

Popular ICS Triplex Models

Model Description Power Output Input Voltage Dimensions Weight
T8151 Trusted Controller 24 Vdc 750 W 90-264 Vac 276 x 114.8 x 40.8 mm 2.5 kg
T8431 Trusted Input/Output Module 750 W 90-264 Vac 200 x 100 x 40 mm 1.2 kg
T8403 Trusted Analog Module 750 W 90-264 Vac 176 x 100 x 40 mm 1.0 kg
T8201 Trusted Power Supply 24 Vdc 750 W 90-264 Vac 276 x 114.8 x 40.8 mm 2.7 kg
T8831 Trusted Output Module 750 W 90-264 Vac 200 x 150 x 40 mm 1.5 kg
T8203 Trusted Power System 24 Vdc 1000 W 90-264 Vac 276 x 114.8 x 40.8 mm 2.8 kg
FAQ

FAQs

  • Q1: What is the maximum output current of the T8231 Power Pack?

    • A1: The maximum output current is 31.25 A at 24 Vdc.

  • Q2: Can the T8231 be used with both 110 Vac and 240 Vac inputs?

    • A2: Yes, the T8231 supports input voltages between 90 Vac and 264 Vac.

  • Q3: What happens if the T8231 power pack overheats?

    • A3: If the temperature exceeds safe limits, the T8231 will shut down, and the over-temperature fault is reported.

  • Q4: Is the T8231 hot-swappable?

    • A4: Yes, it can be swapped while the system is running without causing downtime.

  • Q5: How do I monitor the status of the power pack?

    • A5: The T8231 provides LED indicators and diagnostic contacts to monitor the power pack’s status.

  • Q6: Does the T8231 support redundancy?

    • A6: Yes, the system can be configured for N+1 redundancy.

  • Q7: What is the typical efficiency of the T8231 at full load?

    • A7: The typical efficiency is around 80-84% depending on the input voltage.

  • Q8: Can I use the T8231 for industrial control systems?

    • A8: Yes, the T8231 is designed for industrial applications and process control systems that require reliable, continuous power.
