Technical Specifications
| Parameter | Specification |
|---|---|

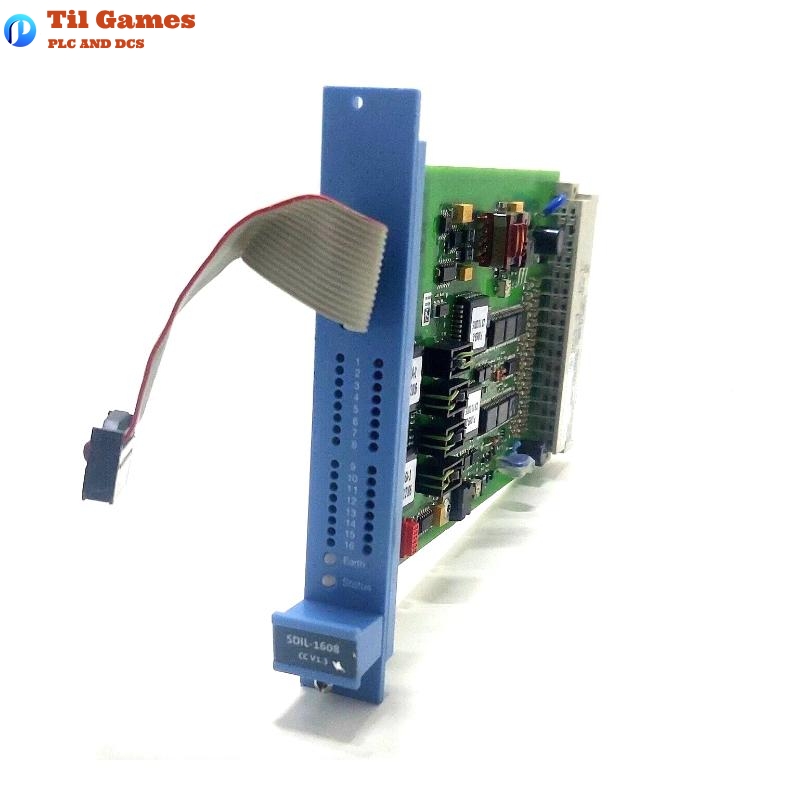

| Model | FS-SDIL-1608 |
| Input Channels | 16 |
| Input Type | NAMUR (according to DIN) |
| Switch Level | 1.4-1.9 mA |
| Hysteresis | 0.2 mA ± 0.05 mA |
| Input Filter | First order, low pass 100 Hz |
| Field Wire Resistance | Max. 50 Ω |
| Loop Supply Voltage | 7.9-8.7 V |
| Loop Supply Current | 170 mA (short-circuit proof) |
| Maximum Load Capacitance | 100 nF |
| Earth Fault Monitoring | Yes |
| Input Resistance | 0.5 MW (–40V < U < 40V) |
| Test Current | 0.5 mA |
| Output Voltage | 0.5 V DC |
| Field Fault Voltage | Max. 250 V AC |
| Dimensions | 22 x 124 x 126 mm |
| Weight | 0.1 kg |
FAQ
FAQ
Q1: What is the number of input channels for the FS-SDIL-1608?
A1: The FS-SDIL-1608 has 16 input channels.
Q2: What is the input type for this module?
A2: The input type for the FS-SDIL-1608 is NAMUR, according to DIN standards.
Q3: What is the switch level of the FS-SDIL-1608?
A3: The switch level is between 1.4 and 1.9 mA.
Q4: Does the FS-SDIL-1608 support earth fault monitoring?
A4: Yes, the FS-SDIL-1608 supports earth fault monitoring.
Q5: What is the output voltage of the FS-SDIL-1608?
A5: The output voltage is 0.5 V DC.
Q6: What is the maximum load capacitance that the FS-SDIL-1608 can handle?
A6: The maximum load capacitance is 100 nF.
Q7: What is the power supply voltage for the FS-SDIL-1608?
A7: The module requires 5 V DC and 24 V DC power supply.
Q8: What are the dimensions of the FS-SDIL-1608?
A8: The dimensions of the module are 22 x 124 x 126 mm, and it weighs 0.1 kg.
