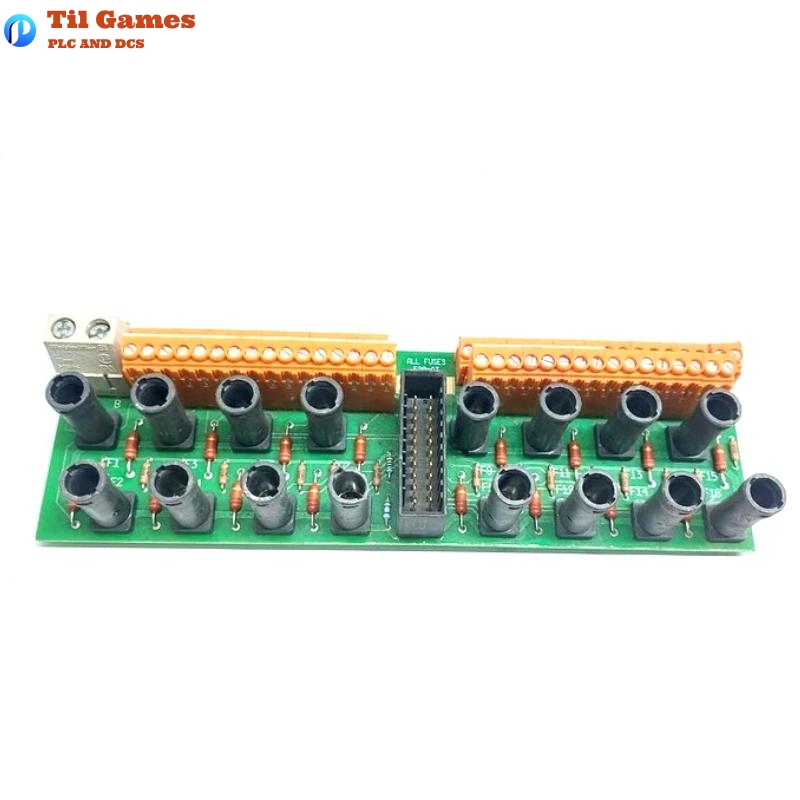

Technical Specifications – Honeywell FC-TSGAS-1624
| Parameter | Details |
|---|---|
| Model Number | FC-TSGAS-1624 |
| Type | Field Termination Assembly Module |
| Input Channels | 16 (with common 0 V) |
| Power Requirements | 24 V DC external, 3 mA (no field loads) |
| Input Current | 0–25 mA |
| Input Resistance | 500 Ω ±5% |
| Output (to SAI-1620m Module) | 0–4 V DC, Accuracy: 0.1% |
| Fuse Rating | 500 mA |
| Fuse Dimensions | 5 × 20 mm |
| Fuse Manufacturer | Schurter |
| Fuse Part Number | 0001.2501 |
| Voltage Rating (AC/DC) | 250 V AC / 300 V DC |
| Derating Curve | Linear from 0.5 A @ 25°C to 0.35 A @ 70°C |
| Termination (Signal) | Screw terminals (max. wire 2.5 mm² / AWG 14) |
| Termination Strip Length | 7 mm |
| Termination Torque | 0.5 Nm (0.37 ft-lb) |
| Power Terminals (A, B) | Max. wire 16 mm² / AWG 8 |
| Power Terminal Torque | 1.2 Nm (0.88 ft-lb) |
| DIN Rail Mounting | TS32 / TS35 × 7.5 |
| Used Rail Length | 226 mm |
| Dimensions (L × W × H) | 225 × 70 × 60 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog input channels does the FC-TSGAS-1624 support?
A1: The module supports 16 analog input channels, each referenced to a common 0 V.
Q2: What is the required external power supply for the FC-TSGAS-1624?
A2: The module operates with an external 24 V DC power supply, drawing approximately 3 mA without field loads.
Q3: What is the output signal range provided to the connected SAI-1620m module?
A3: The module provides an output voltage range of 0 to 4 V DC with an accuracy of 0.1%.
Q4: Are the input signals isolated or referenced to a common ground?
A4: All input channels are referenced to a common 0 V, and the 0 V of the external power is internally connected to this common point.
Q5: What type of fuse is integrated in the FC-TSGAS-1624 module?
A5: It uses a 500 mA fuse with dimensions 5×20 mm, manufactured by Schurter (Part Number: 0001.2501).
Q6: What are the wiring specifications for signal and power connections?
A6: Signal terminals support up to 2.5 mm² (AWG 14) wire with a tightening torque of 0.5 Nm. Power terminals accept up to 16 mm² (AWG 8) wire with 1.2 Nm torque.
Q7: What is the physical size and mounting requirement of this module?
A7: The module dimensions are 225 × 70 × 60 mm. It mounts on TS32 or TS35 × 7.5 DIN rails, using a rail length of 226 mm.
Q8: Can the module be used in safety-related applications?
A8: Yes, the module is suitable for both safety-related and non-safety-related analog input applications, commonly interfacing with gas or flame detectors in critical systems.
