Technical Specifications
| Parameter | Value |
|---|---|
| Module Dimensions | 60 × 70 × 58 mm (L × W × H) |
| Weight | 0.5 kg |
| Number of Channels | 8 |
| Maximum Voltage | 36 Vdc |
| Maximum Continuous Current per Channel | 1.5 A |
| Wire Diameter | Max. 2.5 mm² (AWG 14) |
| Strip Length | 7 mm (0.28 in) |
| Tightening Torque | 0.5 Nm (0.37 ft-lb) |
| DIN EN Rails | TS32 / TS35 × 7.5 |
FAQ
Frequently Asked Questions (FAQ)
-

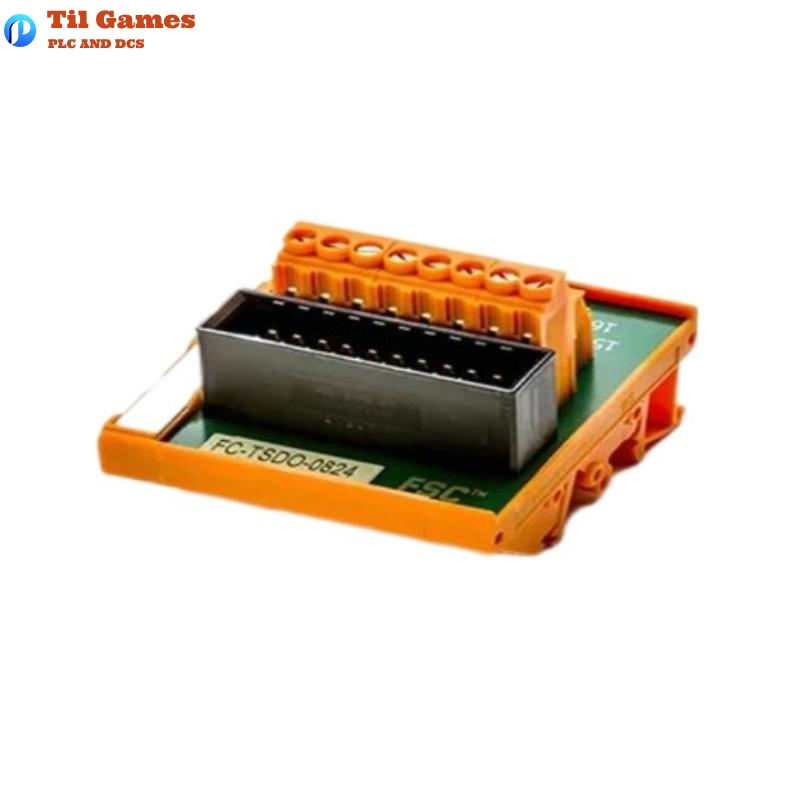

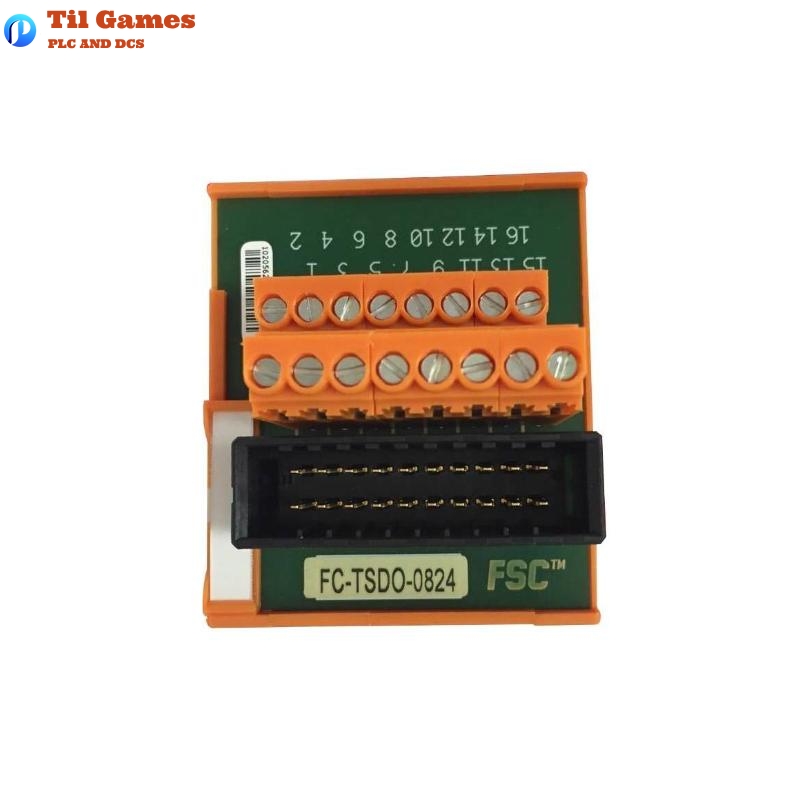

Q: What is the function of the Honeywell FC-TSDO-0824 module?
A: The Honeywell FC-TSDO-0824 module is a field termination assembly (FTA) that interfaces between the system interconnection cable and the external field wiring, providing safe digital outputs. -
Q: How many output channels does the FC-TSDO-0824 module provide?
A: The module provides 8 output channels. -
Q: What is the maximum continuous current per channel for the FC-TSDO-0824 module?
A: The maximum continuous current per channel is 1.5 A. -
Q: What is the voltage range supported by the FC-TSDO-0824 module?
A: The module supports a maximum voltage of 36 Vdc. -
Q: What is the dimension of the FC-TSDO-0824 module?
A: The dimensions of the module are 60 × 70 × 58 mm (L × W × H). -
Q: What is the maximum wire diameter supported by the screw terminals of the FC-TSDO-0824 module?
A: The maximum wire diameter is 2.5 mm² (AWG 14). -
Q: How should the wiring be installed in the FC-TSDO-0824 module?
A: The wiring should be installed using the screw terminals, with a stripping length of 7 mm (0.28 in) and a tightening torque of 0.5 Nm (0.37 ft-lb). -
Q: What safety certifications does the FC-TSDO-0824 module have?
A: The module is certified with CE, TUV, UL, CSA, and FM approvals.
