Technical Specifications
| Parameter | Description |
|---|---|

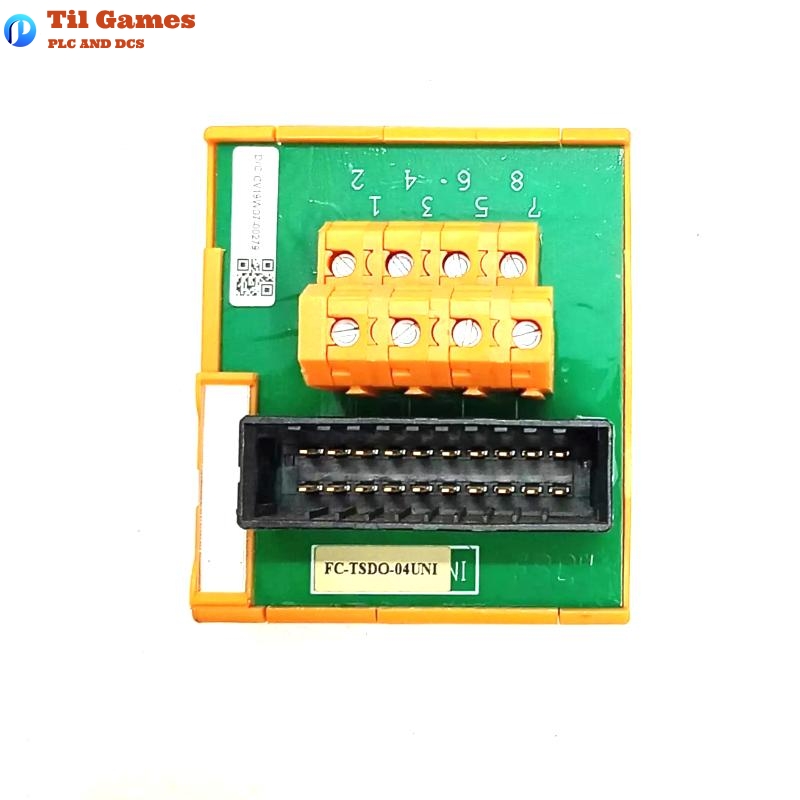

| Product Type | Field Termination Assembly (FTA) Module |
| Model Number | FC-TSDO-04UNI |
| Channels | 4 Digital Output Channels |
| Maximum Operating Voltage | 50 VDC (IEC 1010 Overvoltage Category 3) |
| Secondary Voltage Compliance | 150 VDC (IEC 1010 Overvoltage Category 2) |
| Max Continuous Current per Channel | 2 A (Actual max depends on connected output module) |
| Approvals | CE, TUV, UL, CSA, FM |
| Mounting Type | Universal snap-in DIN EN rail (TS32 / TS35 × 7.5) |
| Used Rail Length | 61 mm (2.40 in) |
| Termination Type | Screw Terminals |
| Max Wire Diameter | 2.5 mm² (AWG 14) |
| Wire Strip Length | 7 mm (0.28 in) |
| Terminal Tightening Torque | 0.5 Nm (0.37 ft-lb) |
| Dimensions (L × W × H) | 60 × 70 × 54 mm (2.36 × 2.76 × 2.13 in) |
| Weight | 0.23 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels are available on the FC-TSDO-04UNI module?
A1: The FC-TSDO-04UNI module provides 4 digital output channels.
Q2: What is the maximum voltage rating for this module?
A2: The module supports up to 50 VDC under IEC 1010 overvoltage category 3 and up to 150 VDC under category 2.
Q3: What is the continuous current capacity for each channel?
A3: Each channel can carry up to 2 A continuously. The actual maximum current is determined by the output module connected.
Q4: What type of rail mounting is supported?
A4: The module is designed for DIN EN rail mounting, compatible with TS32 and TS35 × 7.5 profiles.
Q5: What is the standard wire size and termination specification for field wiring?
A5: The screw terminals accept wires up to 2.5 mm² (AWG 14), with a required strip length of 7 mm and tightening torque of 0.5 Nm.
Q6: Is the FC-TSDO-04UNI module certified for safety standards?
A6: Yes, it carries certifications from CE, TUV, UL, CSA, and FM.
Q7: What are the physical dimensions and weight of the module?
A7: The dimensions are 60 mm (L) × 70 mm (W) × 54 mm (H), and the module weighs approximately 0.23 kg.
Q8: Can this module interface directly with Safety Manager output modules?
A8: Yes, it connects via system interconnection cable SICC-0001/Lx to output modules like SDO-04x or SDOL-04x.
