Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Channels | 16 (2 groups of 8) |
| Maximum Voltage | 50 Vdc (IEC 61010-1, Overvoltage category 3) |
| 150 Vdc (IEC 61010-1, Overvoltage category 2) | |
| Module Dimensions | 90 × 70 × 60 mm (L × W × H) |
| 3.54 × 2.76 × 2.36 in (L × W × H) | |
| DIN Rail | TS32 / TS35 × 7.5 |
| Fuse Rating | 250 mAT (slow-acting) |
| Termination | Screw terminals |
| Max. Wire Diameter | 2.5 mm² (AWG 14) |
| Strip Length | 7 mm (0.28 in) |
| Tightening Torque | 0.5 Nm (0.37 ft-lb) |
| Weight | 0.36 kg |
FAQ
FAQ

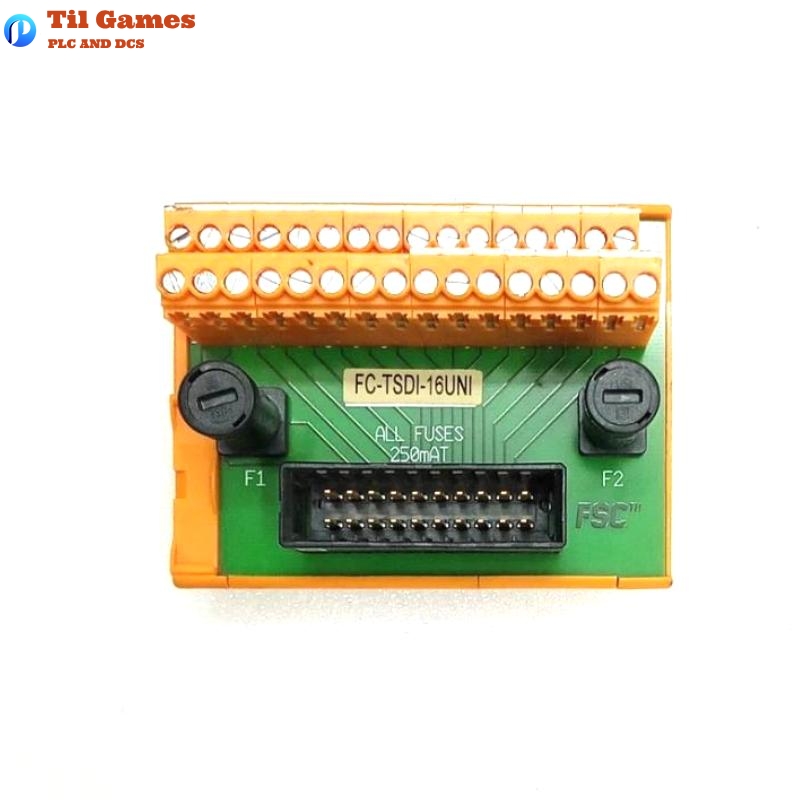

Q1: What is the maximum voltage for the Honeywell FC-TSDI-16UNI module?
A1: The maximum voltage is 50 Vdc according to IEC 61010-1 for Overvoltage Category 3, and 150 Vdc for Overvoltage Category 2.
Q2: How many input channels does the module support?
A2: The module supports 16 input channels, divided into two groups of 8.
Q3: What are the dimensions of the Honeywell FC-TSDI-16UNI module?
A3: The module dimensions are 90 × 70 × 60 mm (L × W × H) or 3.54 × 2.76 × 2.36 in.
Q4: What type of termination does the module use?
A4: The module uses screw terminals for termination.
Q5: What is the maximum wire diameter for the module’s terminals?
A5: The maximum wire diameter that can be used with the module’s terminals is 2.5 mm² (AWG 14).
Q6: What is the fuse rating for the module?
A6: The module has a fuse rating of 250 mAT (slow-acting).
Q7: What is the weight of the Honeywell FC-TSDI-16UNI module?
A7: The weight of the module is 0.36 kg.
Q8: What DIN rails are compatible with the module?
A8: The module is compatible with TS32 / TS35 × 7.5 DIN rails.
