Honeywell FC-TSDI-1624 Digital Input Field Termination Assembly

Introduction

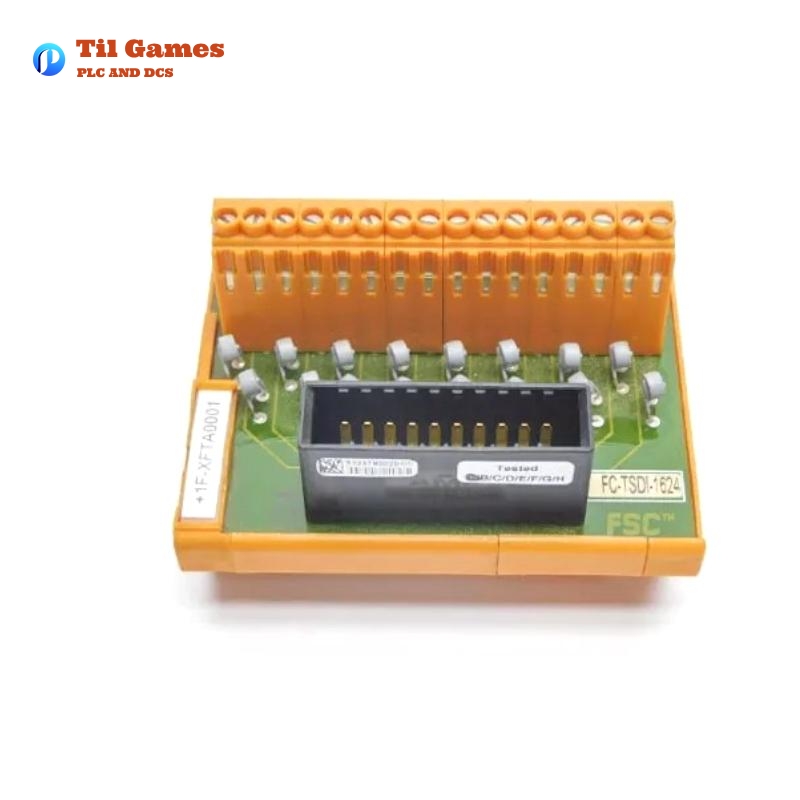

The Honeywell FC-TSDI-1624 Digital Input Field Termination Assembly (FTA) is designed to interface between system interconnection cables and external field wiring in a safe, reliable manner. This module supports up to 16 digital input channels and is ideal for use in environments that require safety integration, such as hazardous locations or industrial automation applications. It allows for seamless connection and termination of field-wired digital signals, ensuring the continuity and safety of the overall system.

Product Features

  • 16 Digital Input Channels: Supports 16 digital input channels with a 24 V DC input voltage, capable of handling a wide range of industrial applications.

  • Short-Circuit Protection: Features Positive Temperature Coefficient (PTC) resistors to limit the current in the event of a short circuit, preventing a loss of all input channels.

  • SIL 3 Compliance: The FC-TSDI-1624 meets SIL 3 safety standards as per IEC 61508, ensuring its suitability for safety-critical applications.

  • Field Wiring Termination: Equipped with screw terminals for easy field wiring connections, allowing for a secure and reliable connection.

  • DIN Rail Mounting: The module has a snap-in provision for DIN EN rails, providing flexibility in installation and easy integration with existing systems.

  • Universal Compatibility: Designed to be used with the Honeywell SDI-1624 Safe Digital Input Modules, ensuring compatibility with Honeywell’s industrial control systems.

Technical Specifications

Parameter Value
Model Number FC-TSDI-1624
Number of Input Channels 16
Input Voltage 24 V DC
Input Current ≤ 15 mA
PTC Resistance 260Ω ±25% at 25°C
PTC Steady Current Typ. 45 mA ±35% at 24 V DC
Dimensions 90 × 70 × 58 mm (L × W × H)
Weight 0.36 kg
DIN Rail Size TS32 / TS35 × 7.5
Max. Wire Diameter 2.5 mm (AWG 14)
Wire Strip Length 7 mm (0.28 in)
Tightening Torque 0.5 Nm (0.37 ft-lb)

Product Advantages

  • High Safety Integrity: With its SIL 3 compliance, the FC-TSDI-1624 ensures high safety standards are met, making it ideal for critical industrial and safety applications.

  • Enhanced Protection: The PTC resistance and short-circuit protection features provide added security against electrical faults, minimizing system downtime.

  • Efficient Field Wiring: The use of screw terminals allows for fast and reliable field wiring connections, reducing installation time and potential errors.

  • Compact Design: The compact size of the module (90 × 70 × 58 mm) ensures that it can be easily integrated into existing control systems without taking up much space.

  • Easy Mounting: The snap-in DIN rail mounting option provides easy installation and flexibility in system design.

  • Durability: Designed for harsh industrial environments, the FC-TSDI-1624 offers long-term reliability, reducing the need for maintenance or replacements.

Applications

  • Industrial Automation: The module is widely used in industrial automation systems for controlling digital inputs, such as sensors, switches, and safety devices.

  • Hazardous Locations: It is suitable for use in hazardous areas where safety and reliability are paramount, offering protection against electrical faults and system failures.

  • Safety Instrumented Systems (SIS): Ideal for applications requiring a high level of safety integrity, such as emergency shutdown systems, fire alarm systems, and gas detection systems.

  • Field Wiring Termination: Used in control panels or automation systems to interface between the system interconnection cables and field wiring, ensuring proper signal termination.
