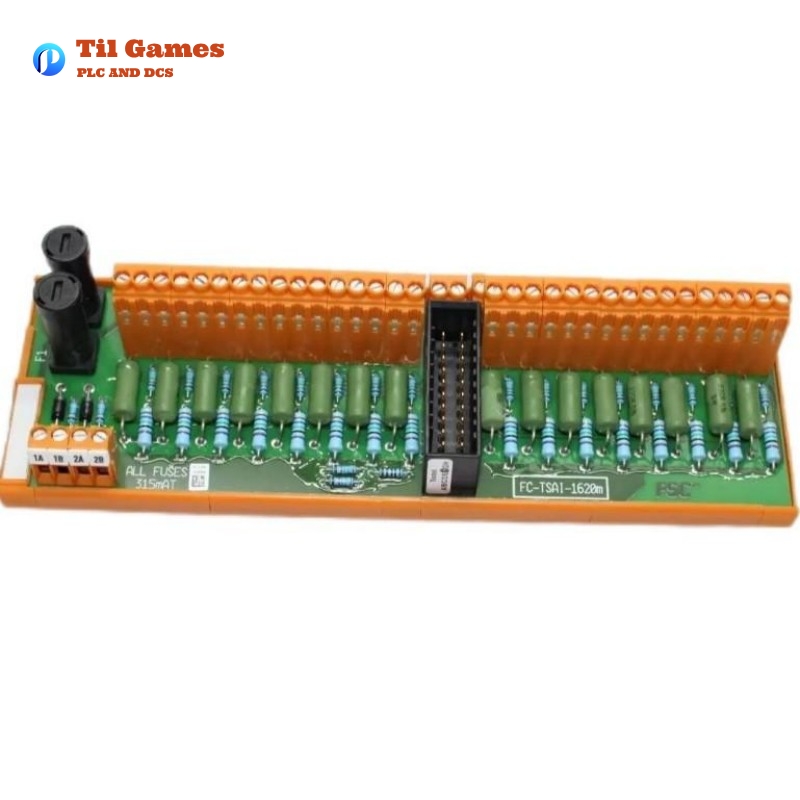

Honeywell FC-TSAI-1620M Analog Input Module

Honeywell FC-TSAI-1620M Analog Input Module

Manufacturer:Honeywell

Product Number:FC-TSAI-1620M

Product Type:Analog Input Module

Origin:USA

Dimensions:210 × 70 × 60 mm

Weight:0.5 kg

Views:15

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/FC-TSAI-1620M-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/FC-TSAI-1620M-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/FC-TSAI-1620M-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/FC-TSAI-1620M-1.jpg
Company Information
E-mail sales@xmjzjsgs.com
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction:

The Honeywell FC-TSAI-1620M Analog Input Module is designed to provide high-density, safe analog input for process control systems. This module supports 16 channels, which can accept current signals from 0-20 mA and 4-20 mA sensors. It is particularly suited for industrial and hazardous locations, providing reliable analog signal conversion and protection. The module integrates easily into Honeywell’s Safety Manager systems and is suitable for both safety and non-safety-related applications in complex automation environments.


Product Features:

  • Input Channels: The module offers 16 input channels, configured into two groups of 8 with a common 0V, for ease of integration.

  • Signal Types: It supports 0-20 mA and 4-20 mA analog signals, commonly used for industrial process measurements.

  • High Accuracy: The module offers an output voltage accuracy of ±0.1% for high-precision applications.

  • Redundant Power: The module supports redundant external power supplies, ensuring continuous operation in critical applications.

  • Explosion-Proof: Suitable for Class I, Division 2 hazardous locations, compliant with major certifications including CE, UL, CSA, TUV, and FM.

  • External Power Monitoring: External power supplies are monitored to ensure safe operation, especially in safety-critical environments.

  • Modular Design: Easily mountable on standard DIN EN rails, simplifying installation and maintenance.


Technical Specifications:

Specification Details
Input Channels 16 (2 groups of 8 with common 0V)
Signal Types 0-20 mA, 4-20 mA
Output Voltage 0-4 V DC
Accuracy ±0.10%
Fuse Rating 315 mA
Voltage Rating AC 125 V
Power Requirements 30 V DC external, 3 mA (without input loop loads)
Maximum Input Current 0-25 mA
Input Resistance 250 Ω ±1%
Module Dimensions (L×W×H) 210 × 70 × 60 mm (8.26 × 2.76 × 2.36 in)
Weight 0.5 kg
DIN Rail Compatibility TS32 / TS35 × 7.5
Screw Terminal Max Wire Size 2.5 mm² (AWG 14)

Product Advantages:

  • Enhanced Accuracy: The FC-TSAI-1620M provides high precision with an accuracy of ±0.10%, which is essential for critical process monitoring.

  • Built-in Protection: The module includes comprehensive fault detection and short-circuit protection, ensuring the system remains safe during operation.

  • Redundancy for Critical Systems: With support for redundant power supplies, the module ensures uninterrupted operation in environments where downtime is not an option.

  • Compact and Flexible: Its compact size and DIN rail mounting options make the module ideal for space-limited environments.

  • Reliable in Hazardous Areas: The module is rated for Class I, Division 2 environments, ensuring it is safe for use in potentially explosive atmospheres.


Applications:

The Honeywell FC-TSAI-1620M Analog Input Module is ideal for:

  • Industrial Automation: Used in factories and processing plants for precise analog signal conversion.

  • Hazardous Locations: Ideal for use in Class I, Division 2 hazardous environments, such as chemical plants, oil and gas refineries, and more.

  • Safety Systems: Works effectively in safety-related and non-safety-related applications where reliable analog measurements are essential.

  • Monitoring and Control Systems: Utilized in monitoring systems for controlling pressure, temperature, or other process variables.


Latest Product News:

  • “Honeywell Introduces FC-TSAI-1620M for Safer and More Efficient Process Monitoring” – A recent report covering the release of this new module, focusing on its features and use in hazardous environments.

  • “FC-TSAI-1620M Module Gains UL and CSA Certification for Explosion-Proof Use” – News about the module’s certification, emphasizing its compliance with industry safety standards for hazardous locations.


Recommended Related Models:

Model Channels Signal Type Key Features
FC-TSAI-1648 16 0-20 mA, 4-20 mA Supports up to 48 V DC inputs, ideal for large systems.
FC-TSAI-1620M-EX 16 0-20 mA, 4-20 mA Explosion-proof version for Class I, Division 1 environments.
FC-TSAI-1610 10 0-20 mA, 4-20 mA Compact design, optimized for smaller applications.
FC-TSAO-0220M 2 0-20 mA, 4-20 mA Analog output module, suitable for monitoring applications.
FC-TSAI-1624 24 0-20 mA, 4-20 mA Offers additional channels for larger systems.
FC-TSAO-0210M 2 0-20 mA, 4-20 mA For high-precision analog output requirements.

Popular Honeywell Models:

Model Channels Signal Type Key Features
FC-SDI-1624 16 Digital (24 V DC) Supports redundant configurations, ideal for safety-critical systems.
FC-PSU-2450 Power Supply Redundant power supply unit for critical control systems.
FC-SAI-1620 16 0-20 mA, 4-20 mA High-density analog input for hazardous locations.
FC-TSDO-1624 8 Digital (24 V DC) Safe digital output module with robust protection features.
FC-TSRO-1620 8 Digital (24 V DC) Field termination assembly module for I/O connections.
FC-SAI-1640 8 0-20 mA, 4-20 mA Compact analog input module for space-constrained environments.
FAQ

Frequently Asked Questions (FAQ):

Q1: What is the maximum input current for the FC-TSAI-1620M?
A1: The module supports input currents ranging from 0 to 25 mA.

Q2: How many input channels does the FC-TSAI-1620M module have?
A2: The module provides 16 input channels, divided into two groups of 8 with a common 0V.

Q3: Can this module be used in hazardous environments?
A3: Yes, it is rated for use in Class I, Division 2 hazardous locations, making it suitable for explosive atmospheres.

Q4: What is the external power requirement for the module?
A4: The module requires an external 30 V DC supply, with a current draw of 3 mA when no input loop loads are connected.

Q5: What is the weight of the module?
A5: The weight of the FC-TSAI-1620M module is 0.5 kg.

Q6: Can the module support redundant power supplies?
A6: Yes, it supports redundant external power supplies for enhanced reliability in critical systems.

Q7: What is the accuracy of the output voltage?
A7: The output voltage has an accuracy of ±0.1%, ensuring high-precision readings.

Q8: How can the module be mounted?
A8: The module can be mounted on standard DIN EN rails, making installation simple and secure in industrial setups.
