Technical Specifications
| Parameter | Description |
|---|---|

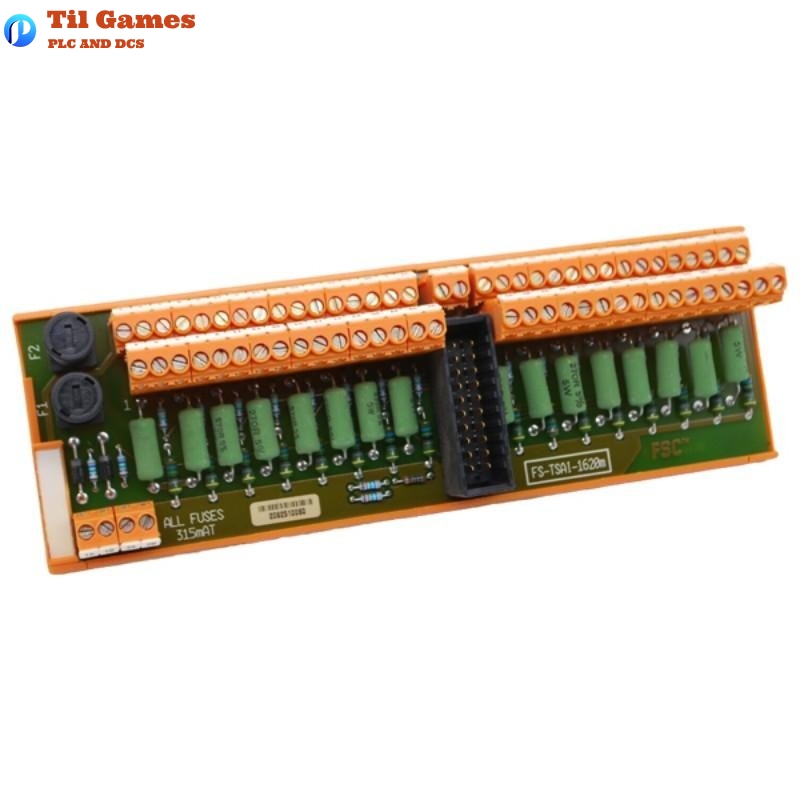

| Model | FC-TSAI-1620m |
| Number of Input Channels | 16 (2 groups of 8 channels with common 0 V) |
| Power Requirements | 30 Vdc external, 3 mA (without input loop loads) |
| Input Current | 0—25 mA |
| Input Resistance | 250 Ω (± 1%) |
| Output Resistance | 270 Ω (± 5%) |
| Igniting Current per Channel | < 120 mA at 30 Vdc |
| Output Voltage (to SAI-1620 module) | 0—4 Vdc |
| Accuracy | 0.1% |
| Fuses Rating | 315 mAT (slow-acting) |
| Dimensions | 210 × 70 × 60 mm (L × W × H) |
| DIN Rails | TS32 / TS35 × 7.5 |
| Termination | Max wire diameter: 2.5 mm² (AWG 14); Strip length: 7 mm |
| Tightening Torque | 0.5 Nm (0.37 ft-lb) |
FAQ
Frequently Asked Questions (FAQ)
-
What are the main functions of the FC-TSAI-1620m module?
Answer: The main functions of the FC-TSAI-1620m module include linear direct conversion of 0—20 mA field signals to the signal levels required by the SAI-1620m module, providing power to each transmitter, and enabling external power monitoring. -
What input current range does the FC-TSAI-1620m module support?
Answer: The module supports an input current range of 0 to 25 mA. -
How many input channels does the FC-TSAI-1620m module have?
Answer: The FC-TSAI-1620m module has 16 input channels, divided into two groups of eight channels with a common 0 V. -
How is the FC-TSAI-1620m module powered?
Answer: The module is powered by an external 30 Vdc supply, with a current of 3 mA when there is no load on the input loops. -
What type of DIN rail does the FC-TSAI-1620m module support?
Answer: The module supports TS32 / TS35 × 7.5 DIN rails. -
Is the FC-TSAI-1620m module suitable for use in Class I Division 2 hazardous areas?
Answer: Yes, the FC-TSAI-1620m module can be used in non-incendiary field circuits for Class I Division 2 applications. -
What is the output voltage of this module?
Answer: The output voltage of the module is 0—4 Vdc, with an accuracy of 0.1%. -
What are the dimensions and weight of the FC-TSAI-1620m module?
Answer: The dimensions are 210 × 70 × 60 mm, and the weight is 0.5 kg.
