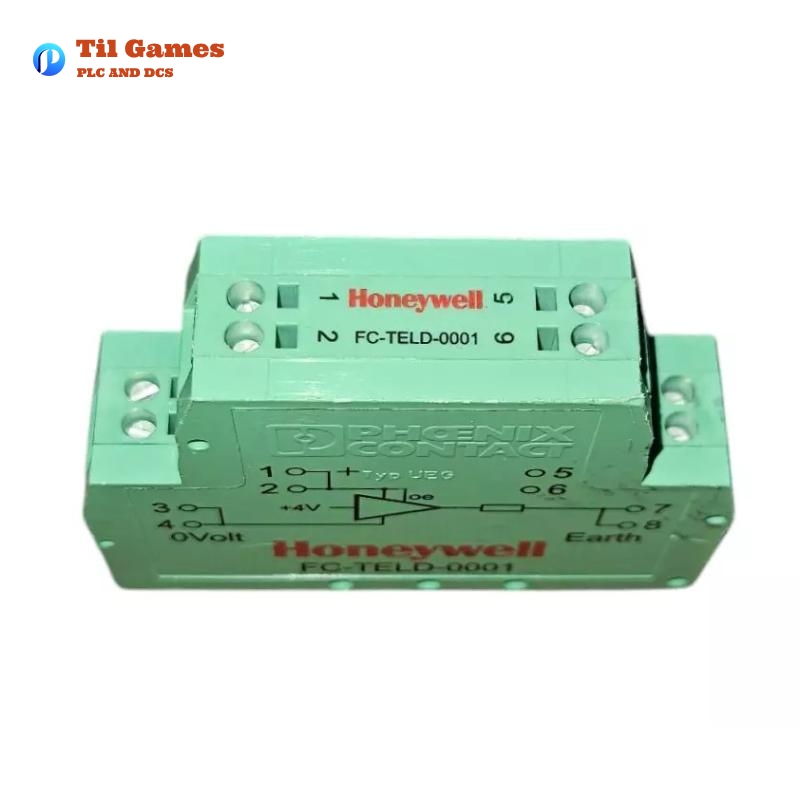

Honeywell FC-TELD-0001 UIO Earth Leakage Detector
Introduction
The Honeywell FC-TELD-0001 UIO Earth Leakage Detector is a vital module for monitoring earth faults in industrial control systems. It is designed to detect any potential leakage current or earth fault, providing real-time diagnostics to help maintain system integrity. This device is a critical part of a safety system that ensures the stability of electrical systems by monitoring for faults in grounded circuits. The module is ideal for use in systems requiring high reliability and safety, ensuring that any earth faults can be detected and isolated promptly.
Product Features
-
Earth Leakage Detection: The module detects earth leakage currents, indicating whether an earth fault is present in the system.
-
SIL 3 Compliance: Designed to meet the stringent requirements for Safety Integrity Level 3 (SIL 3) as defined by IEC 61508, ensuring high system safety.
-
Analog Input: It uses a 0-20mA loop-powered analog input to detect leakage currents, providing a clear indication of fault conditions.
-
Compact Design: Its small form factor (80 x 20 x 70 mm) allows easy integration into existing systems without requiring a lot of space.
-
Earth Fault Threshold: The detection threshold is set to approximately 0.6 mA, allowing for sensitive fault detection in systems where precision is critical.
-
Temperature Range: The module operates in extreme environments with an operational temperature range from -40°C to +75°C, making it suitable for a variety of industrial settings.
-
DIN Rail Mounting: It features a snap-in provision for mounting on standard DIN rails (TS32 / TS35 x 7.5), making installation fast and simple.
Technical Specifications
Parameter | Value |
---|---|
Model Number | FC-TELD-0001 |
Input Voltage | 24 V DC ±15% |
Input Current | 10 mA (no earth fault) |
Earth Fault Detection Threshold | 0.6 mA |
Earth Voltage | +4.1 V DC |
Earth Fault Resistor | 2.8 kOhm |
Operating Temperature | -40°C to +75°C |
Dimensions | 80 x 20 x 70 mm (L x W x H) |
Weight | 0.34 kg |
Mounting | DIN EN rails TS32 / TS35 x 7.5 |
Input Signal | 0-20 mA analog |
Earth Fault Current | 25 mA max (limited by power source) |
Product Advantages
-
Highly Sensitive Fault Detection: The module provides precise earth fault detection, capable of identifying very small leakage currents, ensuring early intervention.
-
Redundancy Support: Designed for use in redundant configurations, ensuring continued operation in safety-critical systems.
-
Versatile Mounting: Can be mounted on DIN rails, facilitating easy installation and integration into existing systems.
-
Wide Operating Range: With an extended temperature range of -40°C to +75°C, the module is suitable for harsh industrial environments.
-
Robust Diagnostics: Integrated diagnostic capabilities allow for quick fault identification, minimizing downtime and improving maintenance efficiency.
-
Compliance with SIL 3: Meets stringent SIL 3 safety standards, ensuring the highest level of safety for critical industrial applications.
Applications
-
Industrial Control Systems: The FC-TELD-0001 is used in systems requiring reliable monitoring of earth leakage currents, such as in power plants, factories, and large-scale industrial operations.
-
Safety Instrumented Systems (SIS): Essential in systems where safety is paramount, such as emergency shutdown systems and fire detection systems.
-
Power Supply Groups: Ideal for monitoring earth faults in circuits that are part of a power supply group, ensuring the safety of electrical systems.
-
Hazardous Locations: Can be used in hazardous environments where detecting earth faults is critical to maintaining safety.
Latest News
-
“Honeywell FC-TELD-0001 Enhances Safety and Reliability in Critical Systems” – A recent article discusses how the FC-TELD-0001 is helping prevent earth fault-related incidents in industrial systems, ensuring higher safety standards.
-
“The Role of Earth Leakage Detection in Industrial Safety Systems” – An exploration of the critical role of devices like the FC-TELD-0001 in improving safety and uptime in industrial automation and power systems.
Recommended Related Models
Model | Channels | Input Type | Power Supply | Dimensions | Weight |
---|---|---|---|---|---|
FC-TELD-0002 | 2 | Earth Leakage Detection | 24 V DC | 80 x 20 x 70 mm | 0.34 kg |
FC-TELD-0003 | 3 | Earth Leakage Detection | 24 V DC | 80 x 20 x 70 mm | 0.34 kg |
FC-SDI-1624 | 16 | Digital Input | 24 V DC | 100 x 160 mm | 0.5 kg |
FC-SDO-0824 | 8 | Digital Output | 24 V DC | 100 x 160 mm | 0.5 kg |
FC-TCNT11 | Varies | Redundant I/O Controller | 24 V DC | 145 x 223 x 32 mm | 0.85 kg |
FC-TCNT12 | Varies | Redundant I/O Controller | 24 V DC | 145 x 223 x 32 mm | 0.85 kg |
Popular Honeywell Models
Model | Channels | Input Type | Power Supply | Dimensions | Weight |
---|---|---|---|---|---|
Honeywell 900RSM-0200 | 16 | Digital Input | 24 V DC | 100 x 160 mm | 0.5 kg |
Honeywell 900CSM-0200 | 16 | Digital Input | 24 V DC | 100 x 160 mm | 0.5 kg |
Honeywell 900RSM-0300 | 8 | Digital Input | 24 V DC | 100 x 160 mm | 0.5 kg |
Honeywell FTA-1630 | 8 | Digital Input | 24 V DC | 100 x 160 mm | 0.5 kg |
Honeywell RUSIO-3224 | 32 | Digital I/O | 24 V DC | 145 x 222 mm | 0.66 kg |
Honeywell 3000RSM | 24 | Digital Input | 24 V DC | 100 x 160 mm | 0.6 kg |
FAQ
FAQ
-
What is the primary function of the FC-TELD-0001?
-
The FC-TELD-0001 detects earth leakage currents, providing early warnings of earth faults in electrical systems.
-
-
What is the earth fault threshold for the FC-TELD-0001?
-
The detection threshold is approximately 0.6 mA.
-
-
What is the operating temperature range of the FC-TELD-0001?
-
The module operates between -40°C and +75°C.
-
-
What is the size of the FC-TELD-0001 module?
-
The dimensions of the module are 80 x 20 x 70 mm.
-
-
Can the FC-TELD-0001 be mounted on a DIN rail?
-
Yes, it features a snap-in provision for DIN EN rails TS32 / TS35 x 7.5.
-
-
What is the maximum weight of the FC-TELD-0001?
-
The module weighs 0.34 kg.
-
-
What type of input does the FC-TELD-0001 use?
-
The module uses a loop-powered analog input signal of 0-20mA.
-
-
What is the voltage range for the FC-TELD-0001?
-
It operates with a 24 V DC power supply, with a tolerance of ±15%.
-
