Product Introduction

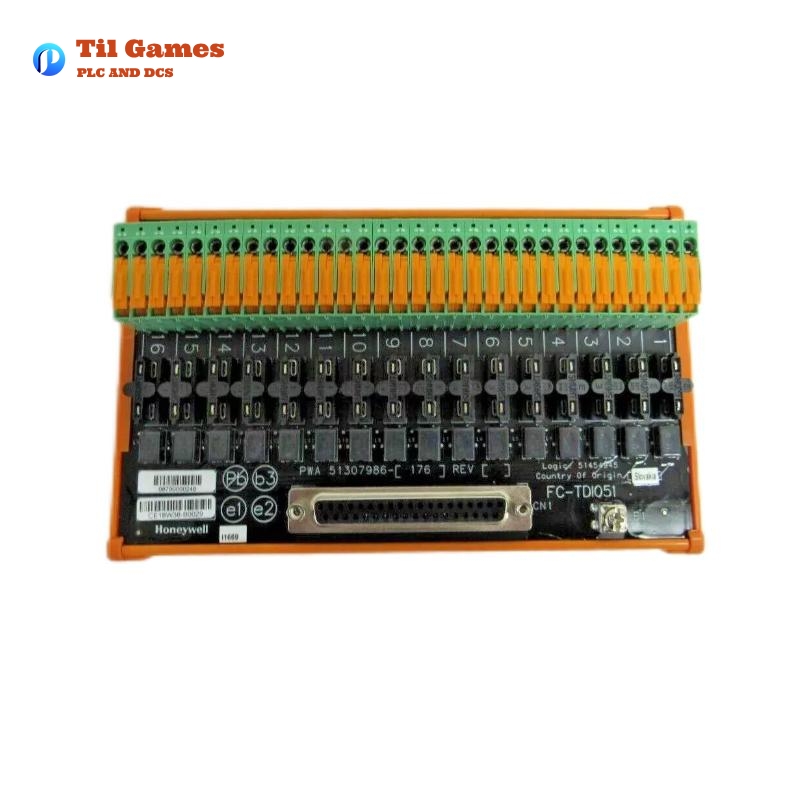

The Honeywell FC-TDIO51 is a Safety Digital Input/Output (I/O) module designed for the Safety Manager SC (Safety Controller) system. It is part of Honeywell’s high-integrity safety solutions, certified for Safety Integrity Level 3 (SIL3) applications. This module provides reliable and fault-tolerant digital I/O connectivity for critical safety systems in industrial environments.
The FC-TDIO51 is compatible with the Universal Safety I/O architecture and supports redundant configurations for enhanced availability. It is engineered to meet stringent safety standards, ensuring robust performance in emergency shutdown (ESD), fire and gas detection, and other safety-critical applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | FC-TDIO51 51307986-176 |
| Type | Safety Digital I/O Module |
| Input Channels | 16 channels (configurable as DI or DO) |
| Voltage Range | 24V DC |
| Safety Certification | SIL3 (TÜV Rheinland certified) |
| Dimensions | 368 x 120 x 50 mm |
| Weight | 0.45 kg |
| Operating Temperature | -40°C to +70°C |
| Redundancy Support | Yes (with FC-TDIO52 for redundant pairing) |
| Communication | Via FC-TDIO11 IOTA (Termination Assembly) |
| Compatibility | Safety Manager SC R210.6 and later |
Product Features
- High Reliability: Designed for SIL3 applications, ensuring fail-safe operation.
- Redundant Configuration: Supports pairing with FC-TDIO52 for redundancy.
- Modular Design: Easy integration with Safety Manager SC systems.
- Wide Temperature Range: Operates in harsh industrial environments (-40°C to +70°C).
- Line Monitoring: Detects open/short circuits on digital input channels.
- Hot-Swappable: Allows maintenance without system shutdown.
Product Advantages
- Safety-Critical Performance: Meets SIL3 standards for high-integrity applications.
- Scalability: Compatible with Universal Safety I/O architecture for flexible system expansion.
- Diagnostics: Advanced fault detection and reporting for quick troubleshooting.
- Robust Construction: Durable design for industrial environments.
- Seamless Integration: Works with Honeywell’s Experion® PKS for unified control.
Product Applications
- Emergency Shutdown Systems (ESD): Ensures safe process shutdown in critical scenarios.
- Fire & Gas Detection: Monitors safety sensors for hazardous conditions.
- Burner Management: Controls and safeguards combustion systems.
- Turbine/Compressor Protection: Prevents equipment damage in power plants.
- Pipeline Monitoring: Detects leaks or pressure anomalies.
Latest News Headline
“Honeywell Enhances Safety Manager SC with FC-TDIO51 for SIL3-Critical Applications”
The latest firmware updates (R210.6) improve diagnostics and HART communication for FC-TDIO51 modules in hazardous environments.
Recommended Related Models
6 Related Models in the Safety Manager SC Series
| Model | Type | Channels | Voltage | Dimensions | Weight |
|---|---|---|---|---|---|
| FC-TDIO52 | Safety Digital I/O | 16 | 24V DC | 368 x 120 x 50 mm | 0.45 kg |
| FC-PDIO01 | Safety Digital I/O | 32 | 24V DC | 368 x 120 x 50 mm | 0.5 kg |
| FC-PUIO01 | Safety Universal I/O | 32 | 24V DC | 368 x 120 x 50 mm | 0.55 kg |
| FC-RUSIO-3224 | Universal Safety I/O | 32 | 24V DC | 180 x 120 x 50 mm | 0.6 kg |
| FC-SCNT01 | Safety Controller | N/A | 24V DC | 200 x 150 x 80 mm | 1.2 kg |
| FC-TCNT11 | Redundant Controller | N/A | 24V DC | 200 x 150 x 80 mm | 1.3 kg |
6 Popular Honeywell Models
| Model | Type | Key Features | Dimensions | Weight |
|---|---|---|---|---|
| HC900 | Process Controller | Modular, scalable control | 200 x 100 x 60 mm | 0.8 kg |
| XYR 6000 | Wireless Transmitter | Battery-powered, IoT-ready | 120 x 80 x 40 mm | 0.3 kg |
| TDC 3000 | DCS System | Legacy distributed control | Varies by module | N/A |
| Experion PKS | SCADA System | Integrated safety and process control | Server-based | N/A |
| Quantum PLC | Programmable Controller | High-speed automation | 150 x 90 x 70 mm | 1.0 kg |
| XSeries | I/O Modules | Modular, field-configurable | 120 x 60 x 30 mm | 0.2 kg |
FAQ
FAQ
Q1: What is the SIL rating of the FC-TDIO51?
A1: It is certified for SIL3 applications by TÜV Rheinland.
Q2: Can the FC-TDIO51 be used in redundant configurations?
A2: Yes, it pairs with FC-TDIO52 for redundancy.
Q3: What is the operating temperature range?
A3: -40°C to +70°C.
Q4: How many digital channels does it support?
A4: 16 configurable DI/DO channels.
Q5: Is hot-swapping supported?
A5: Yes, for maintenance without downtime.
Q6: What systems is it compatible with?
A6: Safety Manager SC R210.6 and later, plus Experion PKS.
Q7: Does it support line monitoring?
A7: Yes, for detecting open/short circuits.
Q8: What is the module’s weight?
A8: 0.45 kg.
