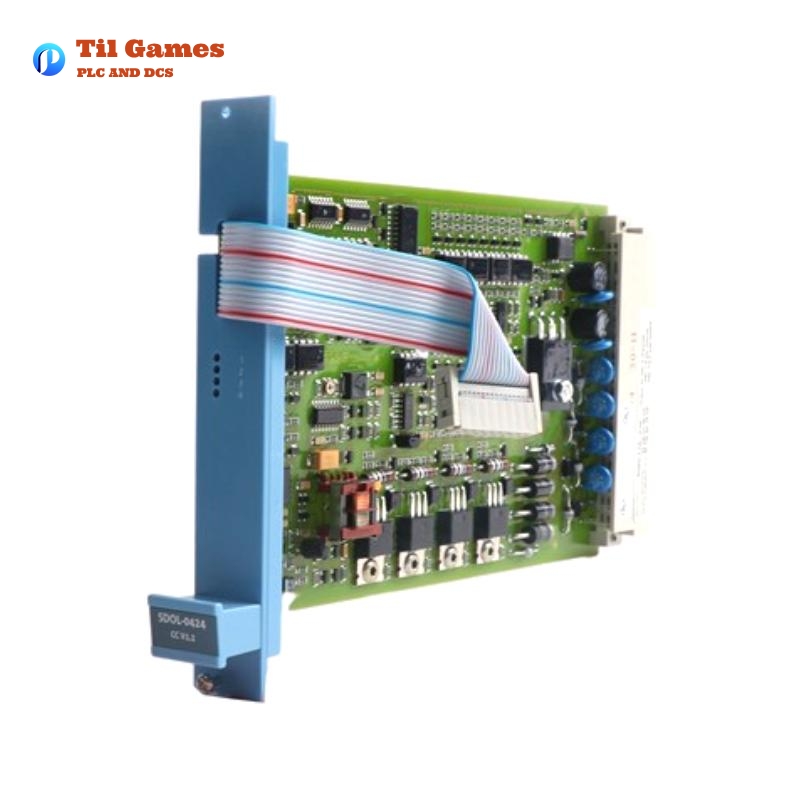

Honeywell FC-SDOL-0424 Digital Output Module

Honeywell FC-SDOL-0424 Digital Output Module

Manufacturer:Honeywell

Product Number:FC-SDOL-0424

Product Type:Digital Output Module

Origin:USA

Dimensions:100 × 160 × 20.32 mm

Weight:0.5 kg

Views:10

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/FC-SDOL-0424-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/FC-SDOL-0424-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/FC-SDOL-0424-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/FC-SDOL-0424.jpg
Company Information
E-mail sales@xmjzjsgs.com
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction:

The Honeywell FC-SDOL-0424 Digital Output Module is designed for use in advanced control systems that require high reliability in driving digital output signals. The module features four 24 V DC output channels capable of driving resistive and inductive loads with a maximum current of 1 A per channel. This module integrates seamlessly into Honeywell’s Safety Manager systems and is certified for use in safety-critical environments, such as those that comply with CE, UL, and FM standards.


Product Features:

  • Number of Channels: Four independent output channels.

  • Power Supply: The module supports both internal and external 24 V DC power supplies, with a 5 V DC input for control and a 24 V DC input for output circuitry.

  • Current Rating: Each channel can handle up to 1 A of current, making it suitable for demanding applications that require substantial load driving.

  • Solid-State Design: The module uses solid-state outputs which are short-circuit proof and capable of withstanding overloads.

  • Fault Detection: Includes lead breakage detection and overload detection to ensure reliability in the output circuit.

  • Compliant with Safety Standards: The module meets global safety certifications, including CE, UL, CSA, and FM, ensuring suitability for use in hazardous locations.

  • Modular Design: Designed to fit in a standard 4 TE (4 HP) slot in a 19-inch IO chassis for easy integration.


Technical Specifications:

Specification Details
Output Channels 4 channels
Output Voltage 24 V DC
Maximum Output Current 1 A per channel (max total load: 3.6 A)
Maximum Load Capacitance 1 μF
Maximum Load Inductance 0.5 H
Voltage Drop at Max Current < 1.3 V at 1 A
Off Current < 0.1 mA
Power Requirements 5 V DC, 15 mA (internal) + 24 V DC, 50 mA (external)
Module Dimensions (L×W×H) 100 × 160 × 20.32 mm (3.94 × 6.3 × 0.8 inches)
Weight 0.5 kg

Product Advantages:

  • High Power Output: The FC-SDOL-0424 module is capable of driving higher currents (up to 1 A per channel), which is essential for controlling large loads such as motors and solenoids.

  • Enhanced Safety: Built-in fault detection (e.g., short circuit and overload protection) ensures the module is reliable and safe to use in critical systems.

  • Durability: The solid-state output design ensures long-lasting performance and durability, even in harsh operating conditions.

  • Flexible Integration: The module’s design allows for easy integration into Honeywell’s modular control systems, making it ideal for both new installations and system upgrades.

  • Fail-Safe Operation: In case of a fault, the module’s outputs can be safely de-energized, preventing damage to the system or field equipment.


Applications:

The Honeywell FC-SDOL-0424 Digital Output Module is ideal for use in:

  • Industrial Automation: For controlling devices such as valves, relays, and motors in complex automation processes.

  • Safety Systems: In safety-critical applications that require dependable and fail-safe operation, such as oil and gas, power generation, and chemical plants.

  • Hazardous Locations: Suitable for use in explosive or hazardous environments, complying with relevant safety standards (Class I, Division 2, FM, UL).


Latest Product News:

  • “Honeywell FC-SDOL-0424 Digital Output Module Receives New Safety Certifications” – This article highlights the new safety certifications received by the FC-SDOL-0424 module, making it suitable for deployment in more stringent industrial environments.

  • “Improved Reliability and Integration with Honeywell’s FC-SDOL-0424 Module” – A report discussing the improvements in operational reliability and easier integration of the FC-SDOL-0424 in automation systems.


Recommended Related Models:

Model Channels Output Voltage Key Features
FC-SDOL-0448 4 48 V DC Suitable for driving higher voltage outputs, with enhanced fault protection.
FC-SDOL-0424B 4 24 V DC A variant with advanced diagnostic features for safety-critical applications.
FC-SDOL-04110 4 110 V DC For applications requiring high-voltage digital outputs.
FC-SDO-0424 4 24 V DC Non-safe version with solid-state outputs for general industrial use.
FC-SDO-0448 4 48 V DC Suitable for industrial applications that need higher current outputs.
FC-SDO-1624 16 24 V DC A high-density solution offering more channels for larger systems.

Popular Honeywell Models:

Model Channels Output Voltage Key Features
FC-SDI-1624 16 24 V DC High-density digital input module for critical applications.
FC-TSAI-1620M 16 4-20 mA Analog input module ideal for process control systems.
FC-TSDO-0824 8 24 V DC Digital output module for driving field devices with safety features.
FC-SAI-1624 16 0-20 mA Analog input module designed for high-accuracy measurements in industrial settings.
FC-PSU-2450 24 V DC Power supply module for supporting redundancy and reliability.
FC-TSDI-16115 16 0-20 mA Safe digital input module for applications with high reliability.
FAQ

Frequently Asked Questions (FAQ):

Q1: What is the maximum current per channel for the FC-SDOL-0424?
A1: Each output channel can handle up to 1 A.

Q2: How many output channels does the FC-SDOL-0424 module provide?
A2: The module provides 4 independent output channels.

Q3: Can the FC-SDOL-0424 be used in hazardous environments?
A3: Yes, it is suitable for use in hazardous locations and complies with safety certifications such as UL, CSA, and FM.

Q4: What is the weight of the FC-SDOL-0424 module?
A4: The weight of the module is 0.5 kg.

Q5: Does the FC-SDOL-0424 module support redundant power configurations?
A5: Yes, the module supports both internal and external redundant power supplies.

Q6: What type of protection does the FC-SDOL-0424 module offer?
A6: The module offers short-circuit protection, overload protection, and lead breakage detection.

Q7: What is the maximum total module load for the FC-SDOL-0424?
A7: The maximum total module load is 3.6 A.

Q8: How can the module be integrated into a control system?
A8: The module is designed to fit in a standard 4 TE slot in a 19-inch IO chassis, making integration straightforward.
