Technical Specifications
| Parameter | Details |
|---|---|

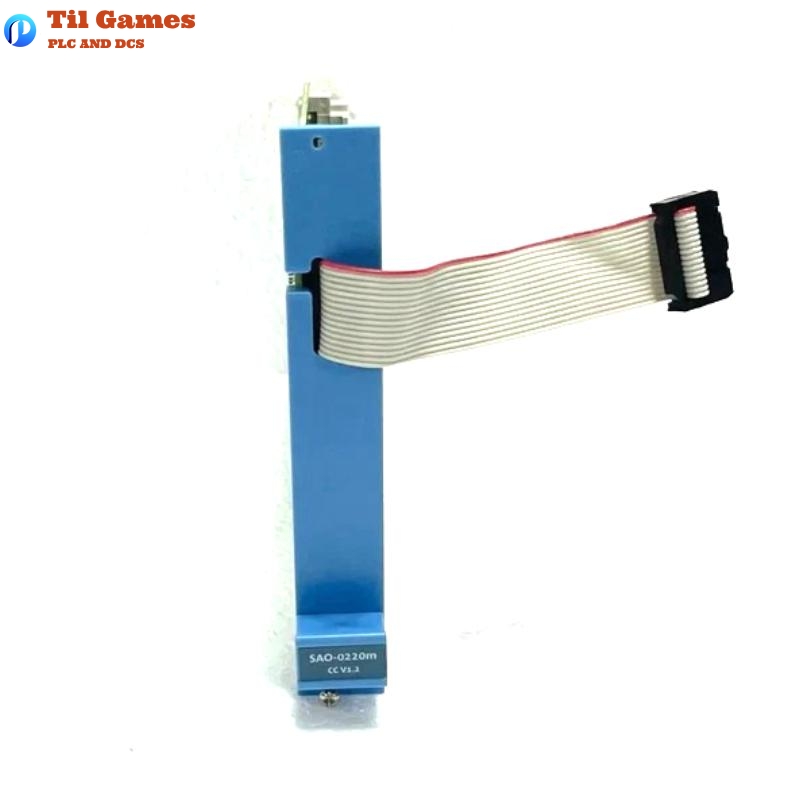

| Product Type | Safe Analog Output Module |
| Model Number | FC-SAO-0220M |
| Number of Channels | 2 (Galvanically isolated, 0(4)–20 mA) |
| Output Type | Active or Passive Analog Current Output |
| Output Range | 0–20 mA or 4–20 mA |
| D/A Converter Resolution | 12-bit |
| Off Current | < 0.05 mA |
| Loop Powering (Active) | Max Resistance: 600 Ω, Max Output Voltage: 30 Vdc |
| External Powering (Passive) | Max Input: 40 Vdc, Voltage Drop: ≤ 7.5 V |
| Power Requirements | 5 Vdc, 30 mA; 24 Vdc, 65 mA + 30 mA per active output |
| Watchdog Input Current | 0.5 mA |
| Diagnostics | Self-test for output correctness, de-energization, cross-talk detection |
| Safety Function | SMOD (Secondary Means of De-energizing) per channel |
| Approvals | CE, TÜV, UL, CSA, FM |
| Operating Conditions | Only resistive/capacitive loads (inductive loads trigger fault condition) |
| Dimensions (W x H x D) | 110 × 53 × 30 mm |
| Weight | 0.9 kg |
| Mounting | 4 TE, 3 HE (4 HP, 3U) |
| Chassis Key Coding | Holes A9, C5 |
FAQ
Frequently Asked Questions (FAQs)
Q1: How many output channels does the FC-SAO-0220M module provide?
A1: The module provides two galvanically isolated analog output channels, each capable of 0–20 mA or 4–20 mA operation.
Q2: Can the module be used with inductive loads?
A2: No. Only resistive or capacitive loads are allowed. Inductive loads can result in fault detection.
Q3: What is the resolution of the D/A converter used in each channel?
A3: Each analog output channel uses a 12-bit digital-to-analog converter.
Q4: How does the module ensure safety in case of signal faults?
A4: The module includes diagnostic tests and a secondary means of de-energizing (SMOD) per channel, allowing outputs to be forced off by the processor or watchdog.
Q5: What is the maximum loop resistance allowed for active output configuration?
A5: The maximum allowable loop resistance in active mode is 600 ohms.
Q6: What certifications does the FC-SAO-0220M module comply with?
A6: It complies with CE, TÜV, UL, CSA, and FM standards.
Q7: Is it possible to configure redundant analog outputs using this module?
A7: Yes, starting from Safety Builder release 120, the module supports redundant analog output configurations.
Q8: What should be done with unused outputs to avoid fault detection during self-test?
A8: Unused outputs must be shorted during self-tests to prevent false fault detection.
