Technical Specifications
| Parameter | Specification |
|---|---|

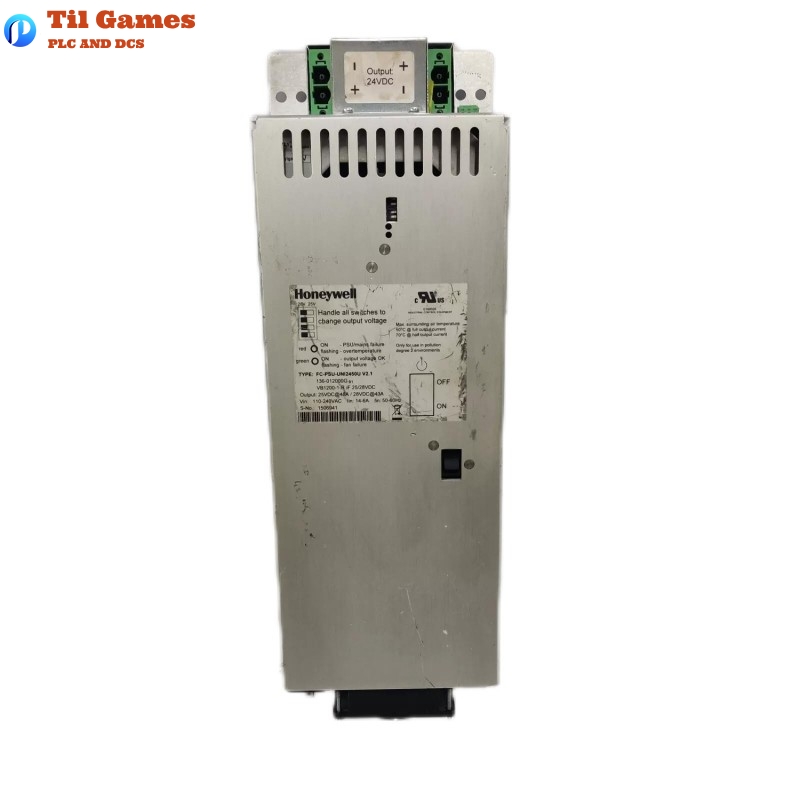

| Model Number | FC-PSU-UNI2450U |
| Input Voltage Range | 93 – 253 V AC |
| Rated Input Voltage | 110 – 240 V AC |
| Input Frequency | 47 – 63 Hz |
| Power Consumption (no load) | 13 W |
| Input Current | < 7.5 A (220–240 V AC), < 16 A (110–120 V AC) |
| Inrush Current | < 15 A |
| Output Voltage Options | 25 V DC / 28 V DC (selectable) |
| Output Current (25 V) | 48 A (at -40°C to +50°C) |
| Output Current (28 V) | 43 A (at -40°C to +50°C) |
| Output Ripple and Noise | < 40 mVpp |
| Efficiency | > 87% at 230 V AC |
| Hold-up Time | 100 ms (at full load) |
| Output Power Limitation | 1200 W |
| Voltage Derating | Starts at 50 °C, 30 W/°C |
| Protection Features | Over-voltage (dual), under-voltage alarm (<22 V), output diode, short-circuit, thermal switch |
| Status Indicators | Green LED (normal), Red LED (faults), Fan Alarm |
| Alarm Contact | 100 mA / 30 V |
| Connectors – AC Input | IEC 60320 C20 socket, 16 A with retaining clip |
| Connectors – DC Output | 2 x Phoenix PCV6-16/2-G1F-10,16 with locking screws |
| Output Voltage Adjustment | Via front DIP switch |
| Storage Temperature | -25 °C to +85 °C |
| Operating Temperature | -40 °C to +70 °C |
| Isolation Voltage | Input-Output: 3750 Vrms; Input-Case: 2500 Vrms; Output-Case: 500 V DC |
| Dimensions (W × H × D) | 420.5 × 140 × 90 mm |
| Weight | 5.7 kg |
| Approvals | UL 508, EN 61558-2-16, TUV, CSA (for FA version), ATEX, IECEx (FA version) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the output voltage range supported by the FC-PSU-UNI2450?
A1: The power supply supports selectable output voltages of 25 V DC or 28 V DC.
Q2: Can this power supply operate in extreme temperatures?
A2: Yes, the FC variant operates from -40 °C to +70 °C, making it suitable for harsh industrial environments.
Q3: Is the unit protected against overvoltage conditions?
A3: Yes, it has built-in dual overvoltage protection circuits for safety compliance.
Q4: What is the maximum continuous output current supported at 25 V DC?
A4: It can deliver up to 48 A at 25 V DC within the ambient temperature range of -40 °C to +50 °C.
Q5: How is the output voltage adjusted?
A5: The output voltage is adjusted using a DIP switch located on the front panel of the unit.
Q6: What type of input connector does it use?
A6: The AC input is a standard IEC 60320 C20 inlet socket rated at 16 A, with a retaining clip for secure connection.
Q7: What indicators are available for power supply status?
A7: Front panel LEDs indicate operational status, faults, and fan issues using green and red indicators.
Q8: Does the power supply support parallel operation?
A8: Yes, it includes an output diode that allows for parallel operation of multiple units.
