Technical Specifications
| Category | Specification Item | Description |
|---|---|---|

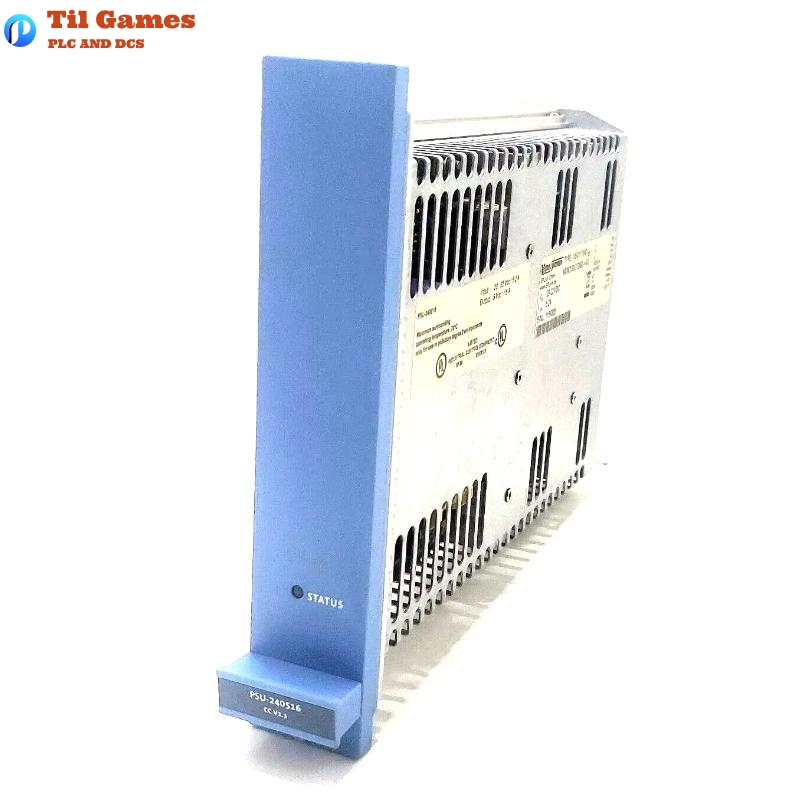

| Product Model | Type | FC-PSU-240516 |
| Input Voltage | Input Range | 24 V DC (acceptable range: -15% to +30%) |
| Input Terminals | Terminal Connections | d6 (+24V DC In), z8 (0V DC In) |
| Output Voltage | Nominal Output | 5 V DC (two outputs: 5Vx and 5VR) |
| Output Current | Total Output | Max. 16 A shared across local and redundant 5 V outputs |
| LED Indicators | Status Indicators | Green: Normal; Red: Low voltage; Off: No input voltage |
| Isolation Voltage | Galvanic Isolation | ≥2.5 kVdc (input-output), ≥1.0 kVdc (input-ground), ≥1.5 kVdc (output-ground) |
| Operating Temp. | Ambient Temperature Range | -5°C to +70°C |
| Storage Temp. | Storage Temperature Range | -40°C to +85°C |
| Humidity | Relative Humidity | 10% to 95% non-condensing |
| Certifications | Approvals | CE, TUV, UL, CSA, FM |
| Installation | Mounting Location | Controller chassis (e.g., CPCHAS-0001, CPCHAS-0002) |
| Dimensions (H×W×D) | Mechanical Size | 176 × 35.2 × 212 mm |
| Weight | Module Weight | 0.85 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input voltage requirement for the FC-PSU-240516 module?
A1: The module requires a 24 V DC input with an operating range from -15% to +30%.
Q2: How many output channels does the module provide, and what are they used for?
A2: It provides two independent 5 V DC outputs—5Vx (local) and 5VR (redundant)—for powering control processors and I/O modules.
Q3: What is the electrical isolation rating of the module?
A3: The module offers ≥2.5 kVdc isolation between input and output, ≥1.0 kVdc between input and ground, and ≥1.5 kVdc between output and ground.
Q4: What do the LED indicators on the module signify?
A4: Green indicates normal output, Red indicates a low 5 V output, and Off means no input power or undervoltage.
Q5: Is the module designed for maintenance-free operation?
A5: Yes, it includes dual overvoltage protection circuits and is suitable for safety applications with minimal maintenance needs.
Q6: Where is this power module typically installed?
A6: It is mounted in controller chassis systems such as CPCHAS-0001, CPCHAS-0002, or CPCHAS-0003.
Q7: What is the operational temperature range for this unit?
A7: The operational temperature is -5°C to +70°C, with a storage temperature range of -40°C to +85°C.
Q8: Has the FC-PSU-240516 been certified for industrial use?
A8: Yes, it is certified under CE, TUV, UL, CSA, and FM standards for industrial-grade safety and reliability.
