Technical Specifications

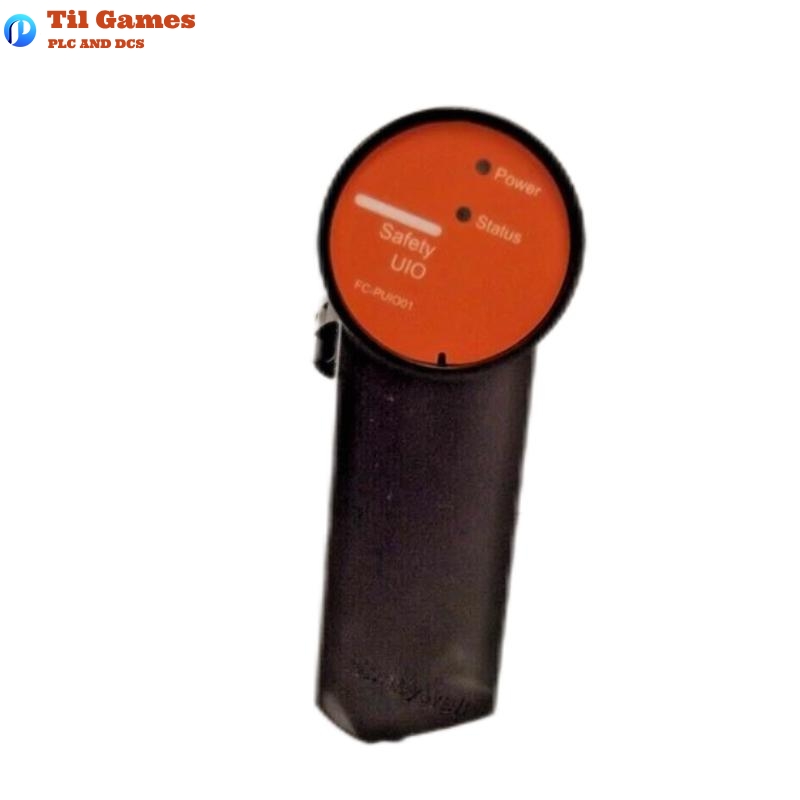

| Parameter | Specification |
|---|---|
| Product Name | FC-PDIO01 Safety Digital I/O Module |
| Part Number | 51454927-176 |
| Function | Safety-rated digital I/O interface module |
| Interface | 37-pin DSUB connector (for SIC cable) |
| Mounting | DIN rail via baseplate, screwless backplane mount |
| Power Supply | 24 VDC nominal |
| Max Input Current | ≤ 66 mA (Digital Output mode) / ≤ 25 mA (Digital Input mode) |
| Power Consumption | 1.6 W (DO mode) / 600 mW (DI mode) |
| Voltage Ranges | Input/Output: 24 VDC nominal |
| Input Type | NAMUR sensor, Dry contact (DI) |
| Output Type | Solenoid, Relay, Alarm (DO) |
| Field Current Output (DO) | 12V/40mA at 300 Ω, max 48mA |
| Digital Input Current Ranges | ON >3.2mA…<6mA, OFF <1.2mA, Open wire <350 µA |
| Output Voltage Thresholds | ON: 18–30 V, OFF: 0–5 V |
| Isolation | 1500 VAC RMS between power/DCS and field |
| Ambient Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Vibration | 0.5 g (operational), 1 g (non-operational) at 10–150 Hz |
| Shock | 5 g (operational), 15 g (non-operational) |
| Ingress Protection | IP20 |
| SIL Rating | SIL 2 (IEC 61508) |
| Compliance | UL94 V-0, ATEX, IECEx, EMC 2014/30/EU, RoHS |
| Dimensions | 96 mm x 63 mm x 26 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the FC-PDIO01 module?
A1: The FC-PDIO01 module is a Safety Digital I/O module designed for interfacing field devices with Safety Manager SC systems. It supports both digital input and output configurations in safety-critical applications.
Q2: Can the FC-PDIO01 handle both digital input and digital output operations?
A2: Yes, the module is self-configurable and supports both digital input and output modes, including NAMUR-compliant digital inputs and outputs for solenoids, alarms, and relay coils.
Q3: What is the isolation rating for the FC-PDIO01?
A3: The module provides galvanic isolation of 1500 VAC RMS between the control system and the field wiring, ensuring electrical safety and signal integrity.
Q4: Is the module compliant with safety and hazardous location standards?
A4: Yes, it meets SIL2 per IEC 61508, and is certified for use in hazardous areas according to ATEX, IECEx, and North American standards (Class I, Division 2, Groups A–D).
Q5: What is the power consumption of the FC-PDIO01 module?
A5: Power consumption depends on the mode. In digital output mode, it consumes up to 1.6 W. In digital input mode, it consumes approximately 600 mW.
Q6: What type of signal wiring does the module support?
A6: It supports 2-wire and 3-wire configurations for both input and output. The terminal blocks on the CC-UGIA01 backplane accommodate typical field wiring standards.
Q7: What diagnostics are available on the FC-PDIO01?
A7: The module includes status indication LEDs for DI and DO functions, as well as fault transparency features for open and short circuit detection on the field wiring.
Q8: What are the environmental conditions under which the FC-PDIO01 can operate?
A8: The module operates reliably in ambient temperatures ranging from -40°C to +70°C, with up to 95% non-condensing humidity, and is resistant to vibration and shock as per industrial standards.
