Product Description

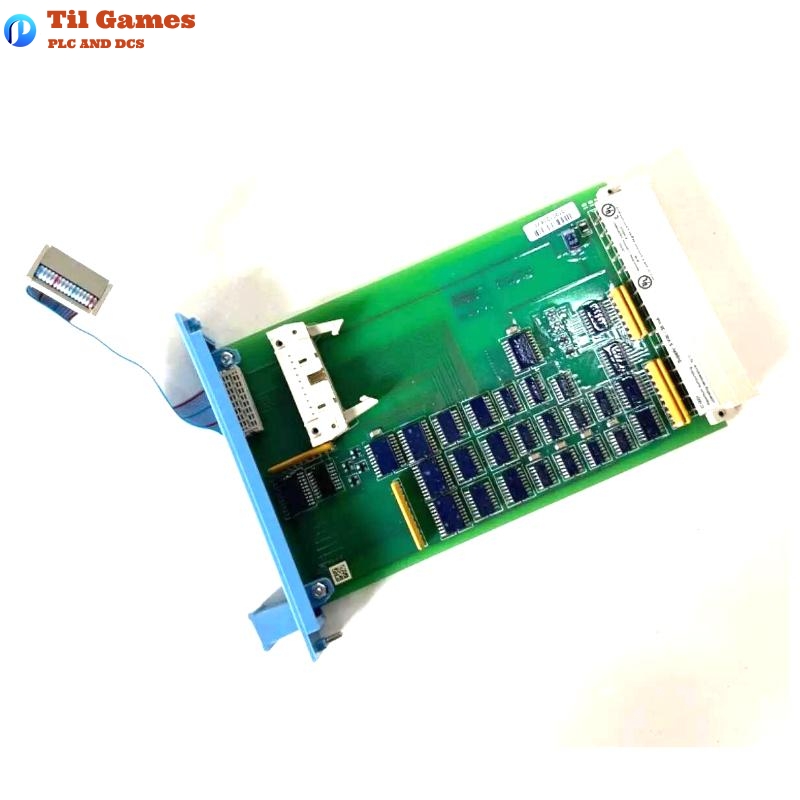

The Honeywell FC-IO-0001 I/O Extended Module is a critical component within the Honeywell Safety Manager system. Installed within I/O chassis at designated slots, it acts as a bridge facilitating seamless communication between the control processor and I/O modules. The module is designed to deliver watchdog signals, power distribution, and synchronization data to ensure reliable operation of input/output processes, both in redundant and non-redundant architectures.
It connects via a flat cable to the horizontal I/O bus and integrates through male DIN 41612 type F connectors. Designed with system availability and modularity in mind, the FC-IO-0001 supports hot-swap functionality for high availability systems and includes address configuration via jumpers for flexible chassis setup.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | FC-IO-0001 |
| Coating Type | Conformal coated |
| Compatible Systems | Honeywell Safety Manager |
| Power Requirement | 5 VDC, 35 mA |
| Ripple Content | < 50 mV p-p |
| Key Coding | Holes A5, A7 |
| Module Connector Code | Holes A5, A7 |
| Chassis Connector Code | Large pins A5, A7 |
| Address Settings | Configurable via jumpers (CA0–CA3) |
| Status Indication | LED (OFF / GREEN / RED) |
| Space Requirements | 4 TE, 3 HE (4 HP, 3U) |
| Dimensions | 133.4 × 20.3 × 280 mm |
| Weight | 0.61 kg |
| Certifications | CE, TÜV, UL, CSA, FM |
Key Features
-
Dual Redundancy Support: Compatible with both redundant and non-redundant IO chassis
-
Independent Power Grouping: Distributes 5V power into two isolated groups for fault isolation
-
Hot-Swappable Design: Can be replaced under power (with caution in safety-related configurations)
-
Status LED Indicator: Real-time status monitoring with tri-color LED
-
Flatcable Bus Connection: Easy integration with horizontal I/O bus
Advantages
-
Enhanced Reliability: Distributes watchdog signals to individual I/O slots for isolation during failures
-
System Flexibility: Jumper-based address setting allows easy system expansion and configuration
-
Maintenance-Friendly: Hot-swap capable, reducing downtime during replacements
-
Safety-Ready: Complies with international safety standards for industrial applications
-
Efficient Power Distribution: Auto shut-off for shorted groups ensures operational continuity
Applications
-
Safety Instrumented Systems (SIS)
-
Process Automation in Oil & Gas
-
Petrochemical and Refining Plants
-
Power Generation Facilities
-
Pharmaceutical Manufacturing
-
Water Treatment and Distribution Systems
Latest Product News Title
“Honeywell FC-IO-0001 Empowers Safety Manager with Enhanced Modular I/O Communication Reliability”
Related Models (Same Series or Functional Category)
| Model | Description | Power Supply | Coating Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| FS-IO-0001 | Non-conformal coated version | 5 VDC | Non-coated | 133.4 × 20.3 × 280 | 0.61 kg |
| IO-0002 | I/O Extender Module for Safety Manager A.R.T. | 5 VDC | Conformal | Similar format | ~0.65 kg |
| TERM-0001 | Bus terminator for non-redundant I/O | 5 VDC | Conformal | 19.7 × 38.1 × 7.8 | 4.5 g |
| TERM-0002 | Bus terminator for redundant I/O | 5 VDC | Conformal | 19.7 × 38.1 × 7.8 | 4.5 g |
| IOBUS-CPIO | IO bus connection cable | N/A | N/A | Various lengths | Varies |
| IOBUS-CPIOX | IO bus extension cable for cabinet setups | N/A | N/A | Various lengths | Varies |
Popular Honeywell Models
| Model | Description | Type | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 8C-PCNT02 51454363-275 | Series 8 C300 Controller Module | Controller | 215 × 25 × 310 | 1.15 kg |
| 8C-PAON01 51454357-175 | Analog Output Module | Output I/O | 133.4 × 20.3 × 280 | 0.58 kg |
| 8C-PDILA1 51454471-175 | Digital Input Module | Input I/O | 133.4 × 20.3 × 280 | 0.60 kg |
| 8C-TAIDA1 51307131-175 | Analog Input IOTA | IOTA | 125 × 20 × 280 | 0.54 kg |
| 8C-PAOHA1 51454469-275 | Analog Output with HART – Single Ended | Output I/O | 133.4 × 20.3 × 280 | 0.63 kg |
| 8C-TAIX51 51306979-175 | Analog Input I/O Termination Assembly | IOTA | 125 × 20 × 280 | 0.54 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the Honeywell FC-IO-0001 I/O Extended Module?
A1: It extends communication between the Safety Manager’s control processor and the I/O modules, distributing signals and power.
Q2: Can the FC-IO-0001 be used in a redundant I/O setup?
A2: Yes, it is compatible with both redundant and non-redundant IO chassis.
Q3: What does the module’s status LED indicate?
A3: The LED indicates the operational status: OFF (inactive), GREEN (normal), RED (fault detected).
Q4: Is the module hot-swappable?
A4: Yes, but caution is required during replacement in safety-related systems, as Safety Manager may shut down.
Q5: How is the chassis address of the module configured?
A5: Through jumper settings (CA0 to CA3) on the I/O backplane.
Q6: What is the significance of the conformal coating on FC-type modules?
A6: It protects the circuitry from humidity, dust, and chemicals, enhancing reliability in harsh environments.
Q7: What power source does the module require?
A7: A 5 VDC power supply drawing 35 mA with low ripple content (<50 mV p-p).
Q8: What approvals does the FC-IO-0001 comply with?
A8: It is certified by CE, TUV, UL, CSA, and FM for industrial automation and safety compliance.
