Product Description

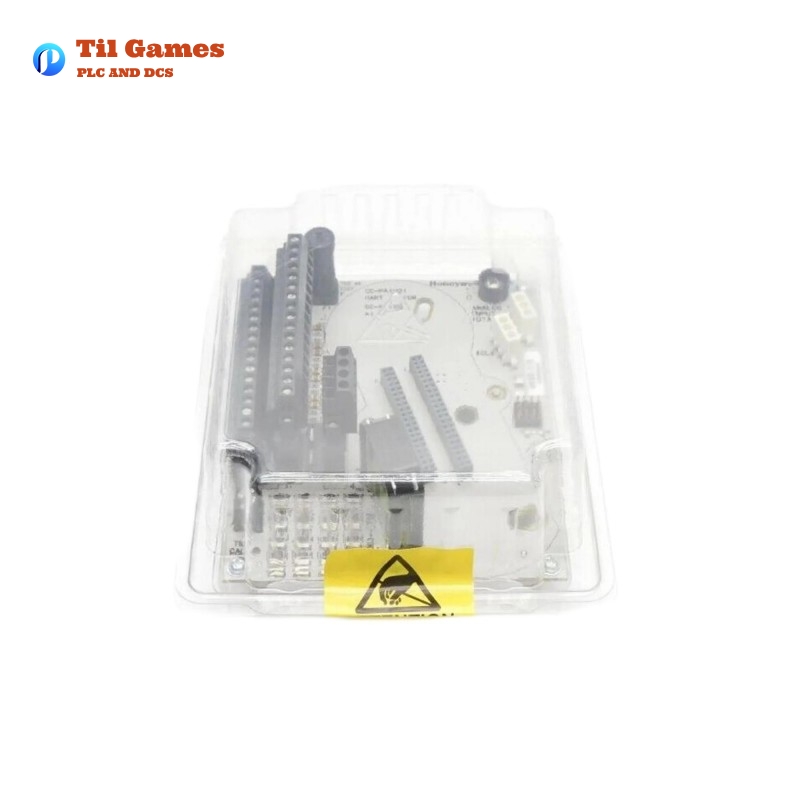

The Honeywell CC-TAIX61 51307077-175 Analog Input Module is a high-performance, redundant analog input module designed for use in Experion Series-C I/O systems. It provides reliable and accurate measurement of 4-20mA DC signals, making it an essential component in industrial process control applications. The module is engineered to deliver redundant data acquisition, ensuring enhanced reliability and safety for critical automation systems.
With a compact 12-inch (304mm) footprint, the CC-TAIX61 is designed for seamless integration into Honeywell’s control architecture, providing on-board termination, signal conditioning, and network connectivity. It offers 16 single-ended input channels and supports HART communication, allowing for enhanced device diagnostics and remote configuration.
Product Specifications
The technical specifications of the CC-TAIX61 Analog Input Module are summarized in the table below:
| Parameter | Specification |
|---|---|
| Model Number | CC-TAIX61 51307077-175 |
| Input Type | 4-20mA DC Analog Input |
| Input Channels | 16 (Single-Ended) |
| HART Compatibility | Yes |
| Redundancy Support | Yes |
| Common Mode Rejection Ratio | 70 dB |
| A/D Converter Resolution | 16-bit |
| Normal Mode Rejection Ratio | 19 dB |
| Max Normal Mode Input | ±30V |
| Input Scan Rate | 50 ms |
| Accuracy (23.5°±2°C) | ±0.075% of full-scale |
| Accuracy (0-60°C) | ±0.15% of full-scale |
| Power Supply | 24V DC (via IOTA) |
| Physical Dimensions | 12-inch |
| Weight | 0.8 kg |
| Operating Temperature | -40°C to +70°C |
| Mounting | Vertical on IOTA |
Key Features
-
High-Precision Analog Input: Supports 16 channels of 4-20mA input signals, ensuring reliable and accurate data acquisition.
-
HART Protocol Support: Enables real-time diagnostics and remote device configuration for improved monitoring and control.
-
Redundant Configuration: Ensures uninterrupted operation in critical applications by providing a backup input path.
-
Fast Response Time: Input signals are processed with a 50ms scan rate, making it ideal for real-time process control.
-
Compact and Space-Saving Design: 12-inch (304mm) IOTA footprint allows for easy installation within Honeywell Experion control cabinets.
-
On-Board Termination and Signal Conditioning: Reduces wiring complexity and enhances signal integrity.
-
Industrial-Grade Reliability: Designed for harsh environments, operating in temperatures ranging from -40°C to +70°C.
-
Common Mode Voltage Tolerance: Can handle voltage variations up to ±30V, ensuring robust performance in noisy industrial settings.
Advantages
-
Enhanced System Reliability: The redundant architecture significantly reduces the risk of signal loss and data errors.
-
Optimized Process Control: HART communication enables real-time device diagnostics and remote configuration, reducing maintenance time.
-
Reduced Wiring and Installation Costs: On-board terminations eliminate the need for additional external marshalling, saving time and space.
-
Seamless Integration with Experion Series-C: Fully compatible with Honeywell’s Experion control systems, ensuring plug-and-play functionality.
-
High-Resolution Data Acquisition: The 16-bit A/D converter ensures precise measurement, even in demanding industrial environments.
-
Improved Noise Immunity: 70dB common mode rejection ratio ensures accurate readings in electrically noisy environments.
Applications
The Honeywell CC-TAIX61 Analog Input Module is widely used in industries requiring precise and reliable analog signal processing:
- Oil & Gas: Process monitoring, flow measurement, and control in refineries and drilling platforms.
- Chemical Processing: Monitoring of liquid levels, temperatures, and pressures in chemical plants.
- Power Generation: Data acquisition in turbine control systems and boiler management.
- Pharmaceuticals: Precise monitoring of critical environmental conditions in drug manufacturing.
- Water & Wastewater Treatment: Remote monitoring of pH levels, flow rates, and chemical dosages.
- Manufacturing & Automation: Real-time machine health monitoring and process optimization.
Related Models in the Same Series
Here are six related or similar models in the Experion Series-C I/O system:
| Model | Description |
|---|---|
| CC-TAIX51 | Non-redundant Analog Input Module, 16 channels |
| CC-PAIH01 | High-Level Analog Input Module with HART |
| CC-PAIH51 | High-Level Analog Input Module with HART, redundant |
| CC-PAIX01 | High-Level Analog Input Module without HART |
| CC-TAID01 | Analog Input IOTA – 16 Channel Differential |
| CC-TAID11 | Analog Input IOTA Redundant – 16 Channel Differential |
Popular Honeywell Models
Here are six popular Honeywell industrial control models:
| Model | Description |
|---|---|
| CC-PUIO31 | Universal Input/Output Module, 32 channels |
| CC-PAOH01 | Analog Output Module with HART, 16 channels |
| CC-PAON01 | Analog Output Module without HART, 16 channels |
| CC-PDIL01 | Digital Input Module, 24VDC, 32 channels |
| CC-PDOB01 | Digital Output Module, 24VDC, 32 channels |
| CC-PPIX01 | Pulse Input Module, 8 channels |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input type supported by the CC-TAIX61 module?
A1: The module supports 4-20mA DC analog input signals with 16 single-ended input channels.
Q2: Does the CC-TAIX61 support redundancy?
A2: Yes, this module supports redundant configurations for increased reliability.
Q3: What is the resolution of the A/D converter?
A3: The module has a 16-bit resolution for accurate signal measurement.
Q4: Can the CC-TAIX61 be used in hazardous environments?
A4: Yes, it is designed for industrial environments and can tolerate extreme temperatures and electrical noise.
Q5: What is the maximum voltage the module can handle?
A5: The module can tolerate a common mode voltage of ±30V.
Q6: Is HART communication supported?
A6: Yes, the CC-TAIX61 supports HART protocol for enhanced diagnostics and configuration.
Q7: How does the CC-TAIX61 connect to the system?
A7: It connects via Honeywell IOTA (Input/Output Termination Assembly).
Q8: What is the operating temperature range?
A8: The module operates in temperatures from -40°C to +70°C, making it suitable for extreme environments.
