Technical Specifications
| Parameter | Specification |
|---|---|

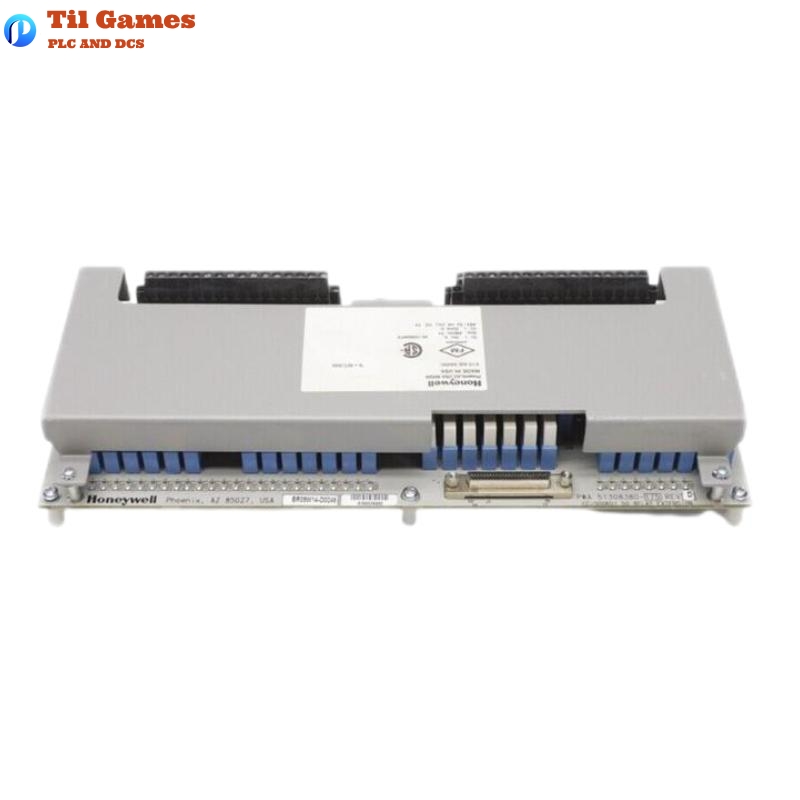

| Model | CC-SDOR01 |
| Dimensions (L × W × H) | 192 × 140 × 45 mm |
| Weight | 0.32 kg |
| Output Channels | 32 isolated Form A (SPST/NO) or Form B (SPST/NC) contacts (jumper selectable per output) |
| Contact Type | AgSnO2 |
| Maximum Load Voltage | 250 VAC (RMS)/125 VDC |
| Maximum Steady State Load Current per Output | 3 A → 125/250 VAC (resistive), 3 A → 30 VDC (resistive), 1 A → 48 VDC (resistive), 0.2 A → 125 VDC (resistive) |
| Minimum Load Voltage | 12 VDC |
| Minimum Load Current | 100 mA |
| Inrush Current (Max) | 10 A for 4s at a 10% duty cycle |
| Isolation (Channel-to-channel, and channel-to-logic common) | 1500 VAC RMS or ±1500 VDC |
| Turn On Time | 20 ms maximum |
| Turn Off Time | 20 ms maximum |
| Contact Life (Mechanical) | 5,000,000 cycles (@ 180 cycles/min) |
| Contact Life (Electrical) | 50,000 cycles @ 6 A (6 cycles/min) |
| Surge Absorber for Coil | 120Ω + 0.033uF for each channel |
FAQ
FAQ
Q1: What is the purpose of the Honeywell CC-SDOR01 Digital Output Relay?
A1: The CC-SDOR01 is used to provide a dry contact for isolated low voltage/low current or high voltage/high current discrete output applications, suitable for various control processes in industrial settings.
Q2: What is the maximum load voltage that the CC-SDOR01 can handle?
A2: The maximum load voltage for the CC-SDOR01 is 250 VAC (RMS) or 125 VDC.
Q3: How many output channels does the CC-SDOR01 relay support?
A3: The CC-SDOR01 relay supports 32 isolated output channels.
Q4: What is the contact type of the CC-SDOR01?
A4: The contact type of the CC-SDOR01 is AgSnO2, which is suitable for reliable switching.
Q5: Can the CC-SDOR01 support both Form A and Form B contacts?
A5: Yes, the relay supports both Form A (SPST/NO) and Form B (SPST/NC) contacts, and the selection can be made via jumper configuration.
Q6: What is the maximum steady state load current for the output of the CC-SDOR01?
A6: The maximum steady state load current per output is 3 A for resistive loads at 125/250 VAC, 3 A for 30 VDC resistive, and 1 A for 48 VDC resistive loads.
Q7: Does the CC-SDOR01 provide galvanic isolation?
A7: Yes, the CC-SDOR01 provides galvanic isolation between channels and between channels and the logic common, with a maximum of 1500 VAC RMS or ±1500 VDC.
Q8: How long is the contact life of the CC-SDOR01?
A8: The mechanical contact life is 5,000,000 cycles, while the electrical contact life is 50,000 cycles at 6 A.
