Technical Specifications
| Parameter | Specification |
|---|---|

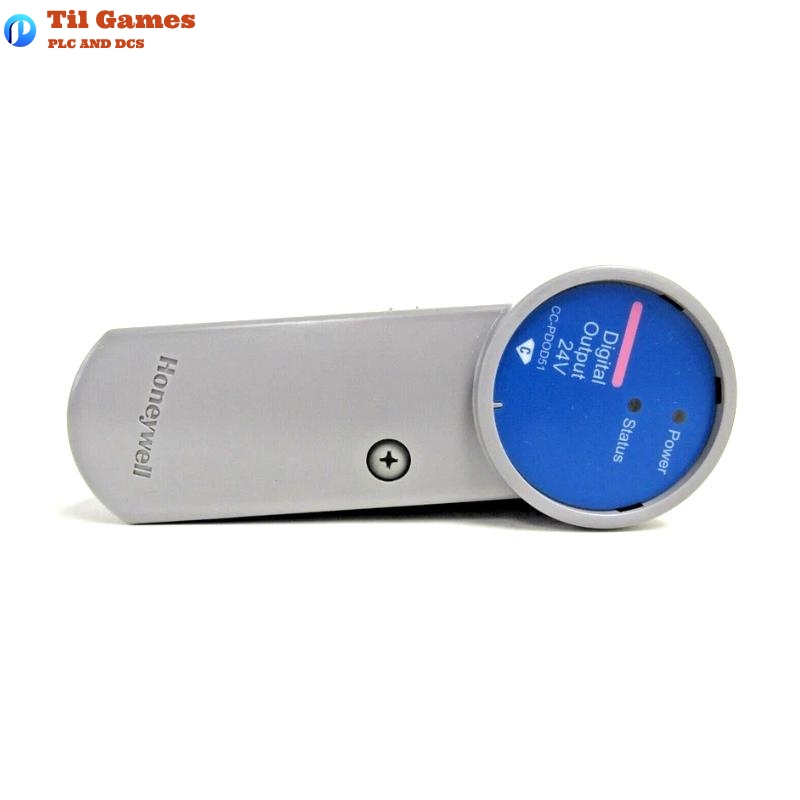

| Model | CC-PDOD51 |
| Output Channels | 32 Channels |
| Output Type | SINK (Open Drain) |
| Load Voltage | 15 – 30 VDC Maximum |
| Load Current | 0.1 A per channel (Max) |
| Galvanic Isolation | 1000 VAC RMS for System-to-Field isolation (user-supplied field power) |
| On-State Voltage | 0 VDC (load current @ 0.1 A max) |
| Off-State Voltage | 24 VDC (typical) |
| Off-State Leak Current | 100 µA (max) |
| Turn-On/Turn-Off Time | 10 ms (max) |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.299 kg |
FAQ
FAQ
-
Q: What is the maximum load current for each channel?
A: The maximum load current is 0.1 A per channel. -
Q: What is the voltage range for the load?
A: The load voltage can range from 15 VDC to 30 VDC. -
Q: What type of output does the CC-PDOD51 module support?
A: The CC-PDOD51 module supports a SINK (Open Drain) output type. -
Q: How many output channels are available on this module?
A: This module has 32 output channels. -
Q: What is the galvanic isolation rating for this module?
A: The module offers 1000 VAC RMS for system-to-field isolation when user-supplied field power is used. -
Q: What is the typical off-state voltage for this module?
A: The typical off-state voltage is 24 VDC. -
Q: How long does it take for the output to turn on or off?
A: The turn-on and turn-off time is a maximum of 10 ms. -
Q: What is the weight and size of the CC-PDOD51 module?
A: The module weighs 0.299 kg and its dimensions are 63.5 x 124.46 x 307.34 mm.
