Technical Specifications
| Parameter | Specification |
|---|---|

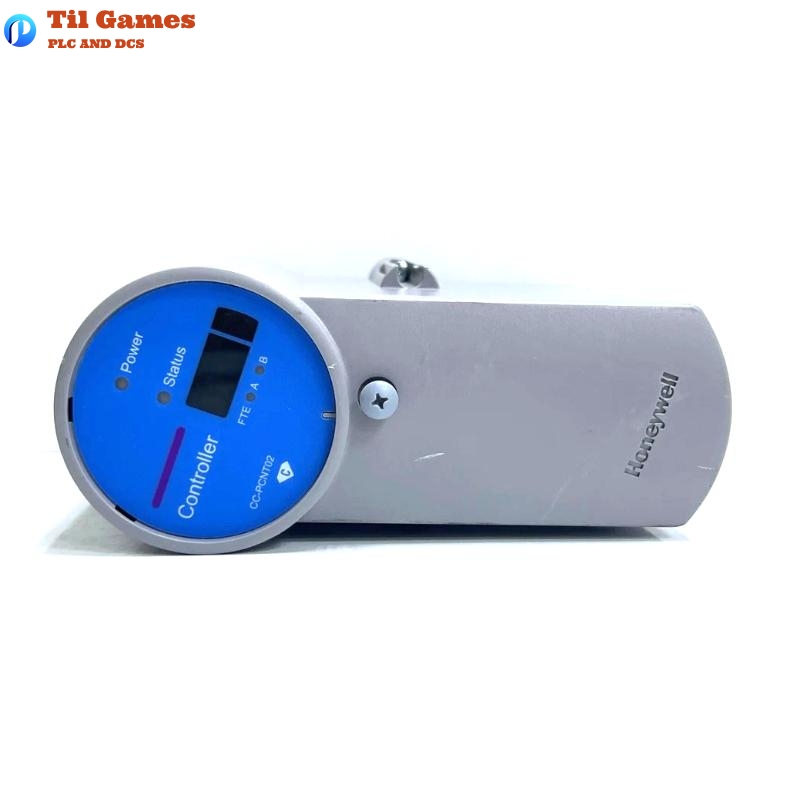

| Product Name | Honeywell CC-PCNT02 ExperionPKS C300 Controller |
| Dimensions | 120 x 165 x 81 mm |
| Weight | 0.34 kg |
| Execution Period | 50 ms (Optional 20 ms CEE) |
| Redundancy Supported | Yes |
| Supported I/O Types | Series C I/O |
| Control Networks Supported | FTE only |
| I/O Links Supported | 2 (750 Kbaud for Series C I/O Link) |
| Time Source | SNTP, PTPv2 |
| Maximum Number of Controllers per Server | 60 (Redundant or Non-Redundant) |
| Communication Performance | 2500 PPS max (for total parameter access) |
| Peer-to-Peer Performance | 1000 PPS max (for pull/get subscription rate) |
| Redundancy Cable Medium | Ethernet STP |
| Redundancy Cable Length | 36, 48, 60, 84 inches |
| Control Processing Switchover Time | 500 ms (for 50 ms CEE) 200 ms (for 20 ms CEE) |
| Initial Synchronization Time | 240 seconds |
| Maximum Elapsed Time (Power Cycle) | 500 seconds |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum execution period supported by the CC-PCNT02?
A1: The C300 supports a 50 ms execution period, with an optional 20 ms configuration available for specific use cases.
Q2: Can the CC-PCNT02 controller be used with redundant configurations?
A2: Yes, the CC-PCNT02 supports redundancy for enhanced system reliability.
Q3: What types of I/O modules are compatible with the CC-PCNT02?
A3: The CC-PCNT02 is compatible with Series C I/O modules, ensuring robust performance and flexibility.
Q4: How many I/O links can the CC-PCNT02 support?
A4: The controller supports up to 2 I/O links, with speeds of 750 Kbaud for Series C I/O.
Q5: What is the communication performance of the CC-PCNT02 controller?
A5: The controller offers up to 2500 PPS for total parameter access and supports peer-to-peer communication with a maximum rate of 1000 PPS.
Q6: What redundancy features are supported by the CC-PCNT02?
A6: The CC-PCNT02 supports Ethernet STP redundancy cables with configurable lengths ranging from 36 to 84 inches for reliable system operation.
Q7: What is the maximum number of controllers that can be connected per server?
A7: A maximum of 60 controllers (either redundant or non-redundant) can be connected to a single server.
Q8: Does the CC-PCNT02 controller support GPS time synchronization?
A8: No, the CC-PCNT02 does not currently support GPS time synchronization, but it does support SNTP and PTPv2 for time synchronization.
