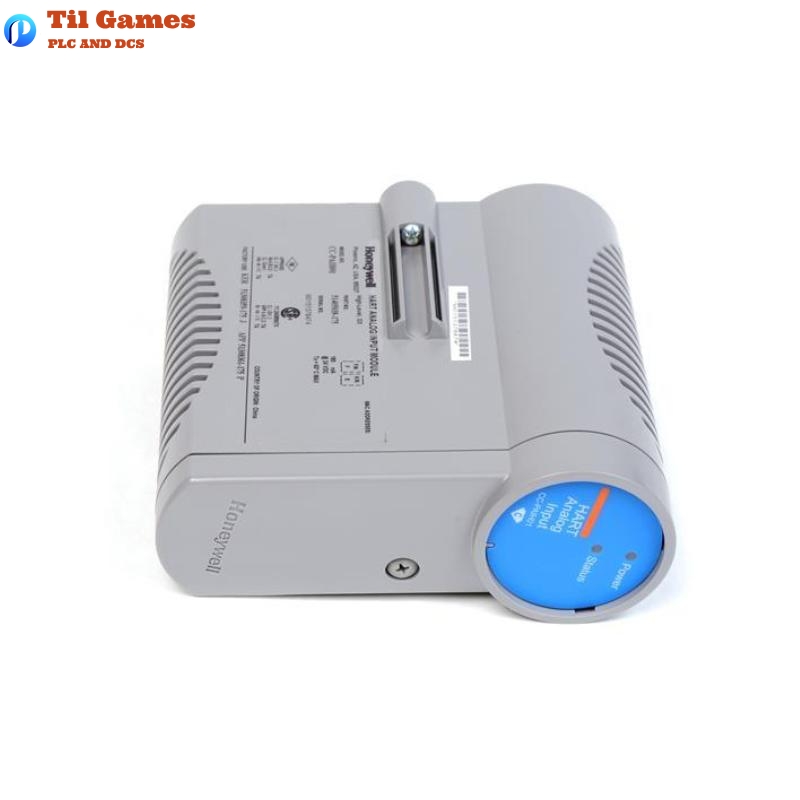

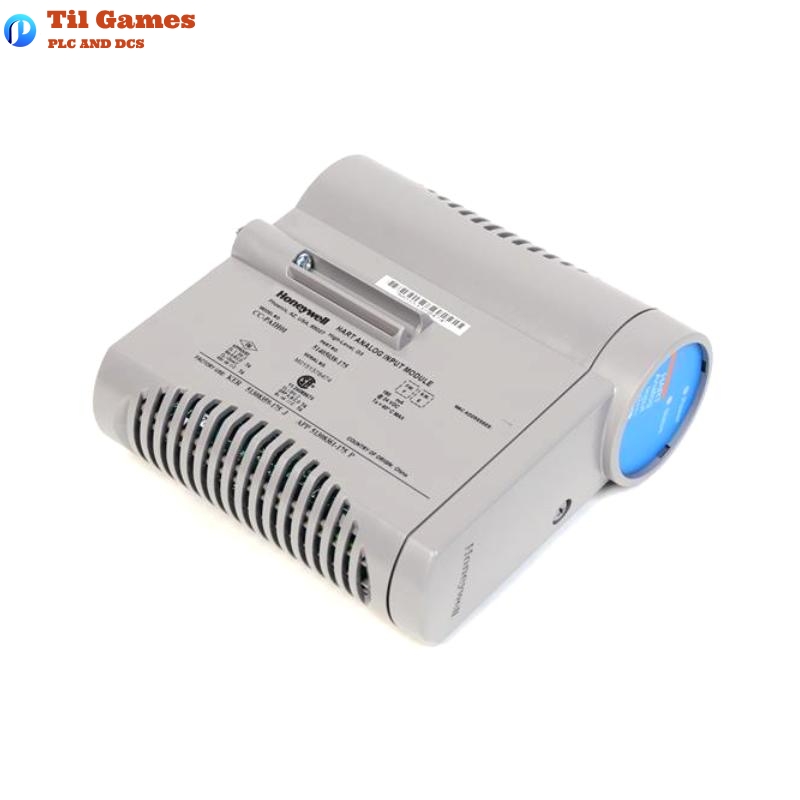

Technical Specifications – Honeywell CC-PAIH01 51405038-175
| Parameter | Specification |
|---|---|
| Product Model | CC-PAIH01 |
| Description | High-Level Analog Input Module with HART support |
| Supported Input Types | Voltage, Current (2-wire or self-powered transmitters) |
| Input Channels | 16 total (12 Single-Ended / 4 Differential) |
| Input Ranges | 0–5 V, 1–5 V, 0.4–2 V, 4–20 mA (via 250 Ω resistor) |
| A/D Converter Resolution | 16 bits |
| Normal Mode Rejection Ratio (60 Hz) | 19 dB |
| Common Mode Rejection Ratio | 70 dB |
| Common Mode Voltage Range | –6 V to +5 V peak |
| Max Input Voltage (Normal Mode) | ±30 V (no damage) |
| Crosstalk (Channel-to-Channel) | –60 dB |
| Input Impedance (Voltage Inputs) | > 10 MΩ |
| Input Scan Rate | 50 ms |
| Hardware Accuracy (23.5°C ±2°C) | ±0.075% of full scale |
| Accuracy (0 to 60°C) | ±0.15% of full scale |
| Transmitter Power Conditioning | Individually current-limited for Class 1, Div 2 non-incendive use (no fusing) |
| HART Capability | Supported on all channels |
| Open Wire Detection | Yes (diagnostics for Bad PV due to open wire) |
| Normal Mode Filter | Single-pole RC, –3 dB @ 6.5 Hz |
| Dimensions | 120 x 90 x 35 mm |
| Weight | 0.25 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of input signals are supported by the CC-PAIH01 module?
A1: The module supports both voltage and current inputs, including 0–5 V, 1–5 V, 0.4–2 V, and 4–20 mA signals.
Q2: How many input channels are available on the CC-PAIH01?
A2: It offers 16 input channels—12 are single-ended, and 4 are differential.
Q3: Is the CC-PAIH01 compatible with HART devices?
A3: Yes, the module fully supports HART communication and can work with multivariable HART instruments.
Q4: What is the resolution of the analog-to-digital converter in the CC-PAIH01?
A4: The module uses a 16-bit A/D converter for precise analog input measurement.
Q5: Does the module provide diagnostics for open wire conditions?
A5: Yes, the CC-PAIH01 includes open wire detection with diagnostic indication of bad PV values.
Q6: What is the input scan rate of the CC-PAIH01?
A6: The module performs a scan every 50 milliseconds.
Q7: Can this module operate in hazardous environments?
A7: Yes, it includes current-limiting circuits for Class 1, Division 2 non-incendive interfacing, requiring no fuses.
Q8: What is the common mode rejection capability of the CC-PAIH01?
A8: It offers 70 dB common mode rejection from DC to 60 Hz, ensuring stable and accurate readings even in noisy environments.
