Technical Specifications
| Parameter | Specification |
|---|---|

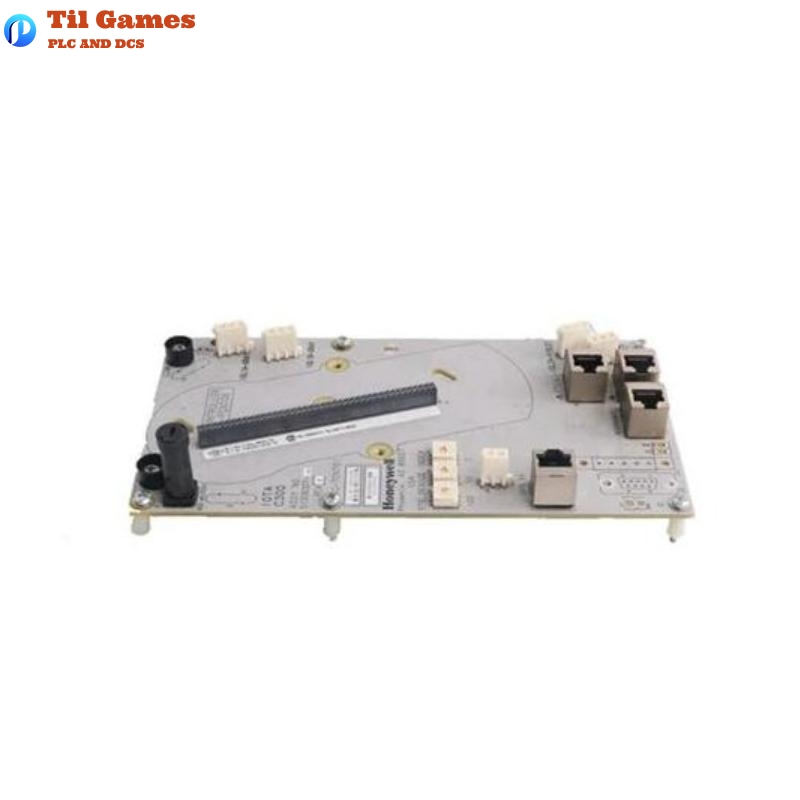

| Model Number | CC-GAIX21 |
| Description | Series-C Analog Input GI/IS IOTA |
| Input Channels | 16 channels total (12 Single-Ended, 4 Differential) |
| Input Type | Voltage and current (2-wire or self-powered transmitters) |
| Input Ranges | 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4–20 mA (via 250 Ω resistor) |
| Input Impedance (Voltage Input) | >10 MΩ (powered) |
| A/D Converter Resolution | 16-bit |
| Input Scan Rate | 50 ms |
| Common Mode Rejection (CMRR) | 70 dB (DC to 60 Hz with 500 Ω source imbalance) |
| Common Mode Voltage Range | –6 V to +5 V peak |
| Normal Mode Rejection (60 Hz) | 19 dB |
| Normal Mode Filter Response | Single-pole RC, –3 dB @ 6.5 Hz |
| Max Normal Mode Input (Differential) | ±30 V (no damage) |
| Channel Crosstalk | –60 dB (DC to 60 Hz) |
| Accuracy (23.5 ±2°C) | ±0.075% of full scale |
| Accuracy (0 to 60°C) | ±0.15% of full scale |
| Field Power Conditioning | Individually protected, current-limited circuits for Class 1 Div 2 (non-incendive) |
| Supported IOMs | CC-PAIH02, CC-PAIX02 |
| Supported IOTA Configuration | With TAIDx1 IOTA or TAIX01/11, GAIX21/11 |
| Dimensions (W x H x D) | 63.5 mm x 124.46 mm x 307.34 mm |
| Weight | 1 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of signals are supported by the CC-GAIX21 IOTA?
A1: It supports both voltage and current input signals. Current inputs (4–20 mA) are handled through an internal 250-ohm resistor, while voltage inputs include ranges such as 0–5 V, 1–5 V, and 0.4–2 V.
Q2: Can I use differential input mode with the CC-GAIX21?
A2: Yes, up to four channels support differential input configuration. This mode is enabled by modifying jumpers on the associated IOTA.
Q3: What is the input scan rate for this module?
A3: The standard input scan rate is 50 milliseconds, suitable for most industrial analog signal applications.
Q4: How is the analog signal accuracy affected by temperature?
A4: Accuracy is ±0.075% of full scale at 23.5 ±2°C, and degrades slightly to ±0.15% over the full 0 to 60°C temperature range.
Q5: What safety features are integrated for field power supply?
A5: Each channel includes current-limited circuits that are certified for Class 1, Division 2 non-incendive operation. No external fusing is required.
Q6: What is the isolation specification for input signals?
A6: The input channels provide high common mode rejection and isolation, with a CMRR of 70 dB and protection from up to ±30 V differential input.
Q7: Is the CC-GAIX21 compatible with redundant IOM configurations?
A7: Yes, it can be used in both non-redundant and redundant configurations when combined with compatible IOMs and IOTAs like CC-PAIH02 or CC-PAIX02 and CC-GAIX11.
Q8: How should I configure voltage inputs instead of current inputs?
A8: For voltage input use, the 250-ohm resistors connected to the input terminals on the IOTA must be disabled by cutting the respective jumpers, as per installation guidelines.
