Product Description

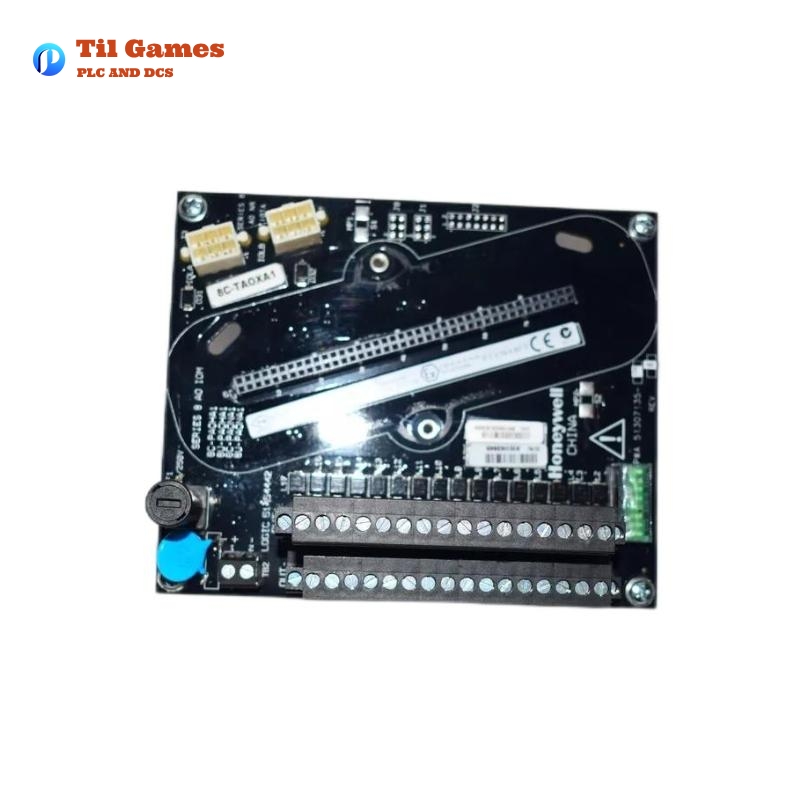

The Honeywell 8C-TAOXA1 (Part Number: 51307135-175) is a non-redundant Analog Output I/O Termination Assembly (IOTA) designed for Series 8 systems within the Honeywell Experion Process Knowledge System (PKS). This module serves as the connection interface between the analog output IOM (such as 8C-PAONA1 or 8C-PAOHA1) and the field wiring, supporting 4–20 mA signal transmissions for controlling final elements such as actuators and valve positioners. Its compact form factor and plug-and-play connectivity with IOMs ensure efficient installation, maintenance, and robust operation in industrial control systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8C-TAOXA1 |
| Part Number | 51307135-175 |
| Product Type | Analog Output I/O Termination Assembly (IOTA) |
| Compatibility | Supports 8C-PAONA1 (AO) and 8C-PAOHA1 (AO with HART) |
| Channels | 16 analog output channels |
| Output Signal | 4–20 mA |
| Mounting | Vertical |
| Module Removal Under Power | Supported |
| Dimensions (W x H x D) | 220 x 120 x 152.4 mm |
| Weight | 0.3 kg |
| Redundancy Support | No (Non-redundant module) |
| Coating | Conformal coated (for harsh environments) |
| Voltage Rating | 24 VDC |
| Material | Industrial-grade PCB and housing |
| Field Power Distribution | Supported through IOTA |
Product Features
-
Integrates field wiring with the analog output module in a compact form.
-
Facilitates 4–20 mA analog output signal transmission.
-
Supports hot-swap capability with module removal and insertion under power.
-
Provides conformal coating protection for operations in harsh environments.
-
Enables direct plug-in for analog output modules.
-
Simplifies wiring with detachable terminals.
-
Reduces cabinet space and complexity with vertical mounting design.
Product Advantages
-
Space Efficiency: Vertical mounting and integrated design reduce control cabinet footprint.
-
Ease of Installation: Detachable terminals simplify field wiring and replacement.
-
Operational Continuity: Hot-swappable under power, minimizing process downtime.
-
Environmental Protection: Conformal coating ensures long-term reliability in corrosive or humid conditions.
-
Reduced Infrastructure Needs: Eliminates the requirement for marshalling panels by enabling field power distribution through the IOTA.
Applications
-
Oil & Gas refineries – valve control, actuator interface.
-
Chemical processing plants – analog signal output to final control elements.
-
Power generation facilities – turbine actuator control.
-
Water and wastewater treatment – dosing pump control.
-
Pharmaceutical industries – precise analog control for process automation.
-
Food and beverage – temperature and level control actuators.
Related Series 8 or Compatible Models
| Model Number | Description | Signal Type | Channels | Coated | Redundant |
|---|---|---|---|---|---|
| 8C-TAOXB1 | Analog Output IOTA (Redundant) | 4–20 mA | 16 | Yes | Yes |
| 8C-PAONA1 | Analog Output Module (Non-HART) | 4–20 mA | 16 | Yes | No |
| 8C-PAOHA1 | Analog Output with HART | 4–20 mA + HART | 16 | Yes | Yes |
| 8C-TAIDB1 | Analog Input IOTA (Redundant) | Input | 16 | Yes | Yes |
| 8C-TAIXA1 | Analog Input IOTA (Non-Redundant) | Input | 16 | Yes | No |
| 8C-TAIMA1 | Low Level Analog Input IOTA | RTD/TC | 16 | Yes | No |
Popular Honeywell Models
| Model Number | Description | Type | Channels | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 8C-PCNT01 | C300 Controller Module | Controller | N/A | 220 x 120 x 152.4 | 0.5 kg |
| 8C-PAIHA1 | Analog Input with HART | Analog Input | 16 | 220 x 120 x 152.4 | 0.3 kg |
| 8C-PDILA1 | Digital Input Module 24VDC | Digital Input | 32 | 220 x 120 x 152.4 | 0.3 kg |
| 8C-PAOHA1 | Analog Output with HART | Analog Output | 16 | 220 x 120 x 152.4 | 0.3 kg |
| 8C-PDODA1 | Digital Output Module 24VDC | Digital Output | 32 | 220 x 120 x 152.4 | 0.3 kg |
| 8C-PDIPA1 | Digital Input with Pulse Accumulation | Digital Input (Pulse) | 32 | 220 x 120 x 152.4 | 0.3 kg |
Recent Report Title
“Honeywell Expands Series 8 I/O Portfolio for Enhanced Control and Diagnostics in Harsh Environments”
March 2022 – Experion R520 Release Overview
FAQ
FAQ – Honeywell 8C-TAOXA1
Q1: What modules are compatible with 8C-TAOXA1?
A1: It supports 8C-PAONA1 (Analog Output) and 8C-PAOHA1 (Analog Output with HART).
Q2: Is the 8C-TAOXA1 suitable for redundant applications?
A2: No, for redundant configurations, use the 8C-TAOXB1 model.
Q3: Can the module be hot-swapped under power?
A3: Yes, it supports removal and insertion while powered.
Q4: What is the primary function of this IOTA?
A4: To terminate field wiring and interface it with analog output modules.
Q5: Does the 8C-TAOXA1 provide galvanic isolation?
A5: Galvanic isolation is provided through the IOM, not directly via the IOTA.
Q6: What environmental protection is included?
A6: It features a conformal coating that protects against dust, moisture, and corrosives.
Q7: What are the dimensions and weight of the module?
A7: Dimensions: 220 x 120 x 152.4 mm; Weight: 0.3 kg.
Q8: Is additional power wiring required for field devices?
A8: No, field power can be distributed directly through the IOTA, minimizing external wiring needs.
