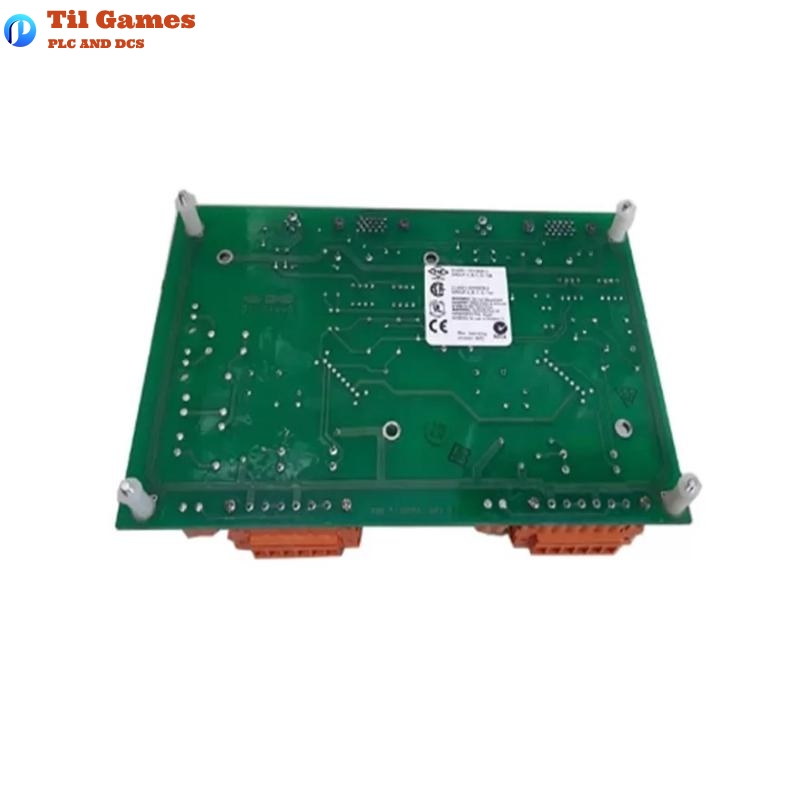

Technical Specifications – Honeywell 8C-TAOX51 51306983-175 Analog Output Module
| Parameter | Specification |
|---|---|
| Model Number | 8C-TAOX51 |
| Type | Analog Output IOTA (Coated, Non-Redundant) |
| Compatible Output Module | 8C-PAON01 (Analog Output Module, Coated) |
| Number of Channels | 16 |
| Output Type | 4–20 mA Current Output |
| Output Ripple | < 100 mV peak-to-peak @ 250 Ω load |
| Resolution | ±0.05% of Full Scale |
| Calibrated Accuracy | ±0.35% of Full Scale (at 25°C) |
| Directly Settable Range | 0 mA, 2.9 mA to 21.1 mA |
| Maximum Open Circuit Voltage | 22 V |
| Response Time | ≤ 80 ms (settling within 1% of final value) |
| Safe State Behavior | Configurable per channel (HOLD LAST VALUE / SAFE VALUE) |
| Open-wire Detection | Yes (Channel Soft Failure Indication) |
| Dimensions (W x H x D) | 51 x 267 x 178 mm |
| Weight | 0.5 kg |
FAQ
FAQ – Honeywell 8C-TAOX51 Analog Output Module
Q1: What type of output signal does the 8C-TAOX51 support?
A1: It supports 4–20 mA current loop output per channel.
Q2: How many channels does the module provide?
A2: The module provides 16 analog output channels.
Q3: Is open-wire detection supported?
A3: Yes, it includes open-wire detection with channel soft failure indication.
Q4: Can the output behavior be configured upon failure?
A4: Yes, the FAILOPT setting allows each channel to either hold the last value or shed to a safe value.
Q5: What is the module’s response time?
A5: The output settles within 80 milliseconds to within 1% of the final value.
Q6: What is the resolution and accuracy of the output?
A6: The resolution is ±0.05% of full scale and calibrated accuracy is ±0.35% at 25°C.
Q7: Does it require an external power supply for field devices?
A7: No external user-supplied power is required for non-incendive output.
Q8: What is the physical size and weight of the 8C-TAOX51?
A8: Dimensions are 51 x 267 x 178 mm and it weighs 0.5 kg.
