Product Introduction

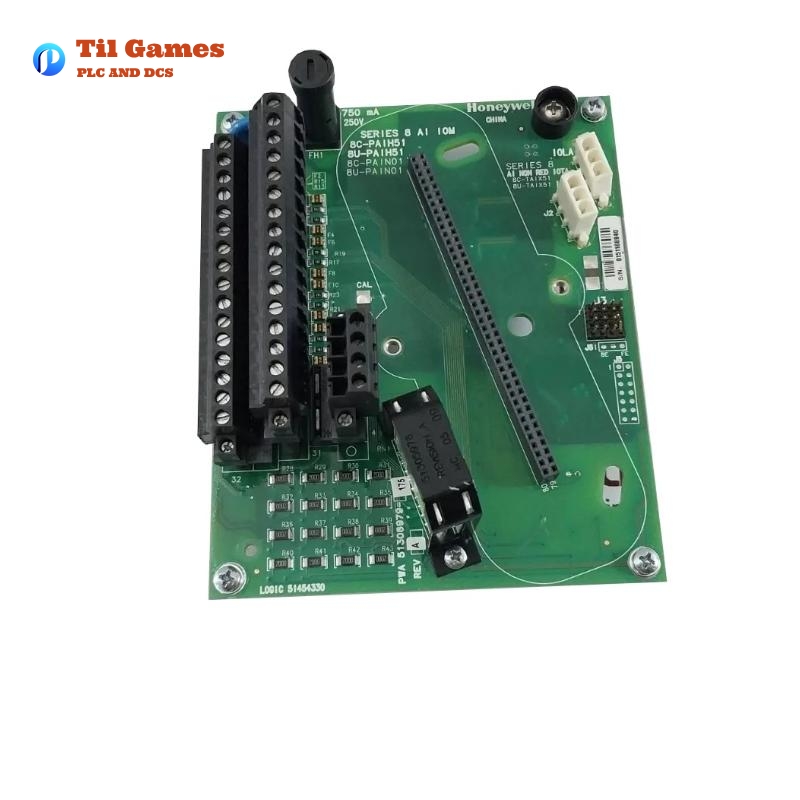

The Honeywell 8C-TAIX51 51306979-175 is a coated I/O Termination Assembly (IOTA) tailored for non-redundant analog input configurations within the Series 8 I/O product range. It is part of the PlantCruise by Experion system, engineered for modular scalability and reliability. This module supports high-level analog input signals and is used in conjunction with compatible I/O modules (IOMs) such as the 8C-PAIN01 (standard analog input) and 8C-PAIH51 (HART-enabled analog input). The 8C-TAIX51 provides on-board termination, signal conditioning, and reliable connectivity for process automation.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 8C-TAIX51 |
| Description | Coated Analog Input IOTA – Non-Redundant |
| I/O Type | Analog Input |
| Supported IOMs | 8C-PAIN01, 8C-PAIH51 |
| Number of Channels | 16 Channels |
| Mounting Type | Vertical installation |
| Connection Type | Detachable terminal block |
| Power Supply | From IOTA carrier bus (24 VDC) |
| Redundancy Support | No (non-redundant configuration) |
| Conformal Coating | Yes (coated for harsh environments) |
| Dimensions | 220 x 120 x 152.4 mm |
| Weight | 0.3 kg |
| Environmental Protection | Conformal coating for moisture/dust/chemical/temperature resistance |
| System Compatibility | Honeywell C300 controller, Series 8 I/O system |
Product Features
-
Integrated I/O Design: Combines field terminations and I/O module electronics into a single, compact assembly.
-
Ease of Installation: Tool-less, two-level detachable terminals simplify installation and maintenance.
-
Efficient Cabinet Use: Vertical mounting and tilted layout optimize heat management and wiring efficiency.
-
Modular Scalability: Supports both HART and standard analog inputs via plug-in compatible IOMs.
-
Conformal Coating Protection: Enhances durability in chemically aggressive or high-humidity environments.
-
Field Power Distribution: Internal field power routing reduces the need for additional marshalling or fusing.
-
Direct Plug-in Architecture: Simplifies module replacement without disturbing field wiring.
Product Advantages
-
High Reliability: Designed for mission-critical industrial automation environments.
-
Cost-Efficient Engineering: Reduces overall footprint and marshalling costs.
-
Rapid Maintenance: Module swaps without field wiring disturbance accelerate system recovery.
-
Adaptable Design: Supports both analog and HART inputs with a single termination base.
-
Environment-Ready: Conformal coating adds resilience against dust, temperature, and moisture extremes.
Application Areas
-
Petrochemical Plants
-
Oil & Gas Refineries
-
Water and Wastewater Treatment
-
Power Generation Facilities
-
Pharmaceutical Processing
-
Food and Beverage Manufacturing
-
Pulp and Paper Industries
Latest News Headlines (Relevant to Series 8 or IOTA Systems)
-
“Honeywell Enhances Experion with Scalable Series 8 I/O Capabilities for Remote Monitoring”
-
“Series 8 Modules Improve Installation Time by 30% in Industrial Applications, Reports Show”
-
“Honeywell’s Conformally Coated IOTAs Pass Harsh Environment Qualification Standards”
-
“C300 Controller and Series 8 I/O Revolutionize Control Cabinet Layout in New Installations”
-
“Honeywell’s Modular I/O Expands Digital Transformation in Process Control Systems”
Recommended Related Models (Same Series or Function Group)
| Model Number | Description | Type | Redundant | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-PAIN01 | Analog Input Module (Coated) | Analog Input Module | No | 220 x 120 x 152.4 | 0.3 |
| 8C-PAIH51 | Analog Input with HART (Coated) | Analog Input + HART | No | 220 x 120 x 152.4 | 0.3 |
| 8C-TAIX61 | Analog Input IOTA (Redundant, Coated) | Analog Input IOTA | Yes | 304 x 120 x 152.4 | 0.45 |
| 8C-TAOX51 | Analog Output IOTA (Coated) | Analog Output IOTA | No | 220 x 120 x 152.4 | 0.3 |
| 8C-TAOX61 | Analog Output IOTA (Redundant, Coated) | Analog Output IOTA | Yes | 304 x 120 x 152.4 | 0.45 |
| 8C-PAOH51 | Analog Output with HART Module (Coated) | Analog Output + HART | No | 220 x 120 x 152.4 | 0.3 |
Popular Honeywell Models Recommended
| Model Number | Description | Type | Application | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-PCNT01 | C300 Controller Module | Controller Module | PlantCruise by Experion | 220 x 120 x 152.4 | 0.4 |
| 8C-PDODA1 | Digital Output Module (24VDC) | Digital Output | Discrete Control | 228 x 120 x 152.4 | 0.35 |
| 8C-PDILA1 | Digital Input Module (24VDC) | Digital Input | Discrete Input Monitoring | 228 x 120 x 152.4 | 0.35 |
| 8C-PAONA1 | Analog Output Module | Analog Output | Analog Actuation | 220 x 120 x 152.4 | 0.3 |
| 8C-PAOHA1 | Analog Output with HART Module | Analog Output + HART | Analog/HART Control | 220 x 120 x 152.4 | 0.3 |
| 8C-TAIM01 | Low-Level Multiplexer IOTA (Coated) | Thermocouple/RTD Input IOTA | Temperature Monitoring | 220 x 120 x 152.4 | 0.3 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 8C-TAIX51 module?
A1: It serves as a termination assembly for high-level analog input modules, enabling signal conditioning and field wiring connectivity.
Q2: Is the 8C-TAIX51 designed for redundant configurations?
A2: No, it is a non-redundant model. For redundancy, the 8C-TAIX61 should be used.
Q3: Can this IOTA be used in hazardous environments?
A3: Yes, the conformal coating provides enhanced protection against dust, humidity, and corrosive chemicals.
Q4: Which IOMs are compatible with 8C-TAIX51?
A4: It supports 8C-PAIN01 (standard analog input) and 8C-PAIH51 (analog input with HART).
Q5: Does this IOTA require external power supplies for field devices?
A5: No, it routes field power internally via the IOTA carrier’s 24VDC bus.
Q6: What maintenance advantages does this design offer?
A6: Tool-less terminal blocks and modularity allow for fast replacement without disturbing field wiring.
Q7: What is the benefit of the vertical mounting design?
A7: It improves cabinet space utilization and enhances cooling through efficient heat dissipation.
Q8: Are there versions available for uncoated environments?
A8: Yes, the equivalent uncoated model is 8U-TAIX51, intended for controlled environments.
