Product Description

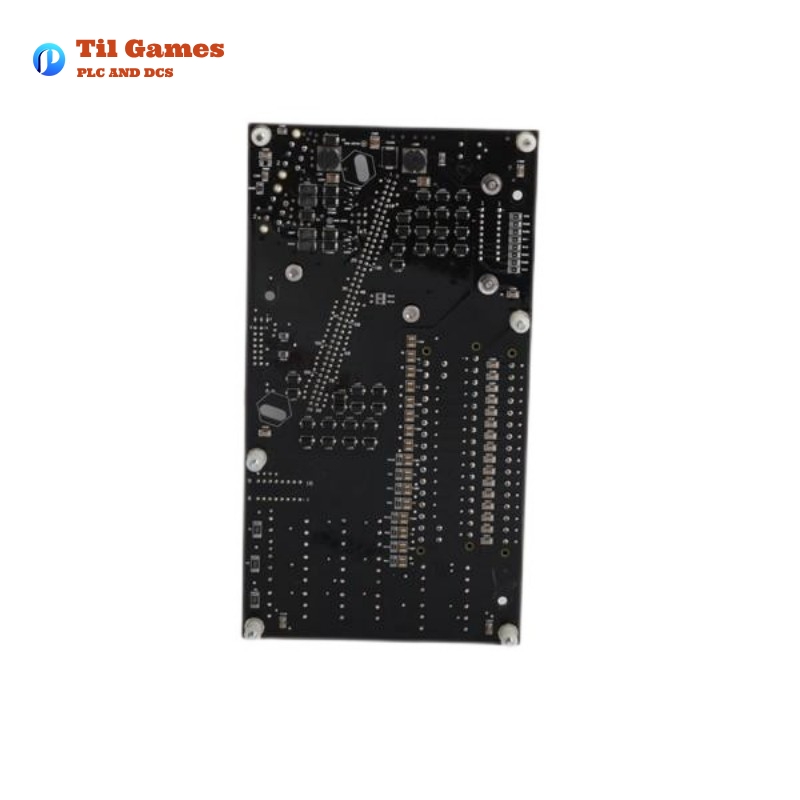

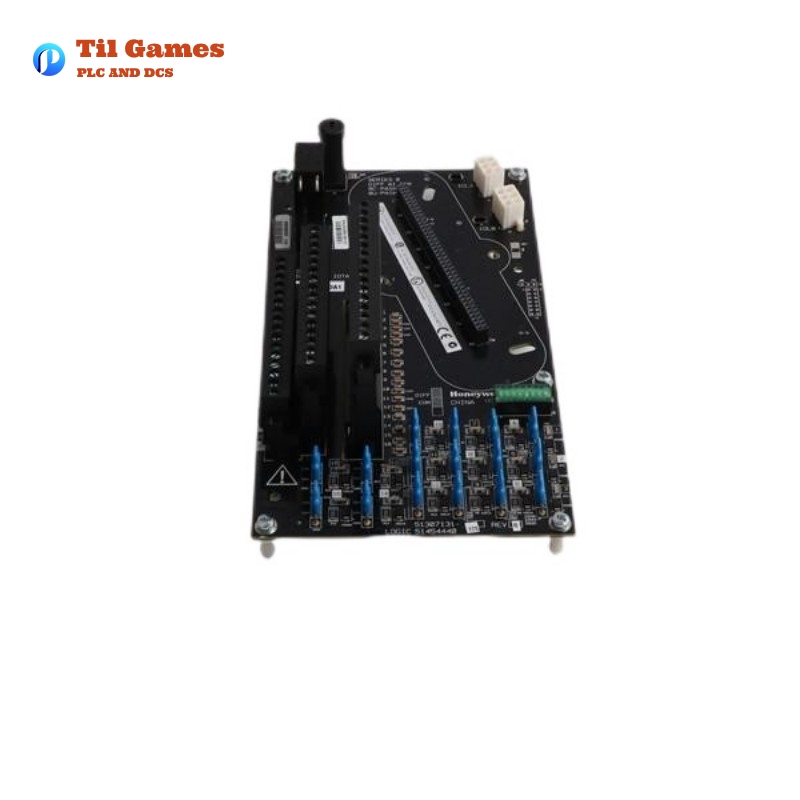

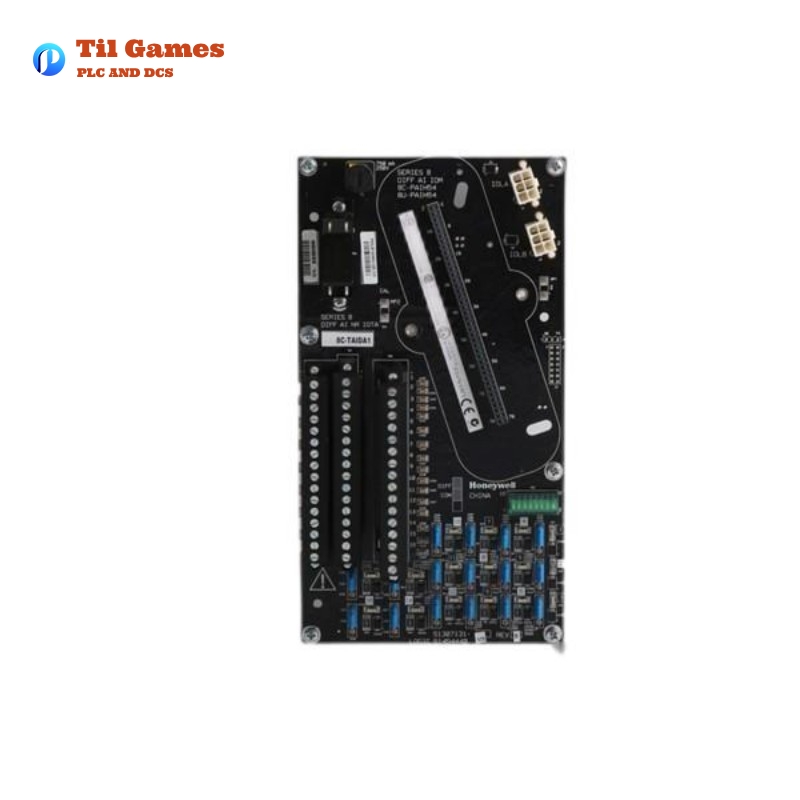

The Honeywell 8C-TAIDA1 51307131-175 is a coated, non-redundant analog input IOTA (Input Output Termination Assembly) module belonging to the Series 8 I/O suite for the Experion Process Knowledge System (PKS). It is specifically designed to support differential analog inputs including both current and voltage signals with HART capability when paired with compatible IOMs like 8C-PAIH54.
This IOTA provides field wiring connections and supports both signal conditioning and power distribution without the need for external marshalling. The 8C-TAIDA1 integrates seamlessly with the Series 8 form factor and supports vertical cabinet mounting to optimize cabinet space and heat dissipation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8C-TAIDA1 |
| Description | Analog Input IOTA, Differential, Coated, Non-redundant |
| Compatible IOM | 8C-PAIH54 (Analog Input with HART, Differential) |
| Input Channels Supported | 16 Differential / Single-ended |
| Voltage Rating | 24 VDC |
| Module Current Rating | 310 mA |
| Input Type | Voltage or Current (4–20 mA or 1–5 V typical) |
| Dimensions | 220 mm x 120 mm x 304.8 mm |
| Weight | 0.7 kg |
| Mounting | Vertical (cabinet mounting) |
| Module Removal/Insertion Under Power | Supported |
| Environmental Protection | Coated for G3-level harsh environment (ISA S71.04) |
| Redundancy | No (use 8C-TAIDB1 for redundancy) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Certification | Class I, Div 2, Groups A-D; Class I, Zone 2, AEx nA IIC T4 |
Product Features
-
Supports differential and single-ended analog signal input
-
Compatible with HART-capable IOM (8C-PAIH54)
-
G3 level environmental protection (coated variant)
-
No need for external marshalling or additional power supplies
-
Modular and compact design with vertical cabinet mounting
-
Allows hot-swapping under power conditions
-
Designed for seamless integration with Experion PKS C300 controllers
Product Advantages
-
Modular Integration: Easily pairs with Series 8 IOMs like 8C-PAIH54 for streamlined configuration.
-
HART Compatibility: Enables advanced device diagnostics and configuration with multivariable data.
-
Compact Footprint: Reduces space requirements with vertical mount design.
-
Maintenance Friendly: Plug-and-play field wiring and tool-free terminal access.
-
Environmental Resilience: Coated to withstand moisture, dust, and temperature extremes.
Typical Applications
-
Distributed Control Systems (DCS)
-
Oil and Gas field instrumentation
-
Chemical process control
-
Power generation instrumentation
-
Pharmaceutical manufacturing environments
-
Water and wastewater management facilities
Recent Report Title
“Honeywell Expands Experion Series 8 I/O Capabilities with Enhanced Diagnostics and Field Integration for Smart Manufacturing” – March 2024
Recommended Related or Same Series Models
| Model Number | Description | Channels | Redundant Option | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-TAIDB1 | Analog Input IOTA Differential, Coated | 16 | Yes | 220 x 120 x 304.8 | 0.7 |
| 8C-TAIXA1 | Analog Input IOTA Single-ended, Coated | 16 | No | 220 x 120 x 152 | 0.6 |
| 8C-TAIXB1 | Analog Input IOTA Single-ended, Coated | 16 | Yes | 220 x 120 x 304.8 | 0.7 |
| 8C-TAOXA1 | Analog Output IOTA, Coated | 16 | No | 220 x 120 x 152 | 0.6 |
| 8C-PAIH54 | Analog Input with HART (Differential), Coated | 16 | No | Module for TAIDA1 | 0.35 |
| 8C-PAIHA1 | Analog Input with HART (Single-ended), Coated | 16 | No | Module for TAIXA1/B1 | 0.35 |
Popular Honeywell Series 8 Models
| Model Number | Description | Channels | Redundancy | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-PCNT03 | Series 8 C300 Controller, Coated | N/A | Yes | 220 x 120 x 304.8 | 1.0 |
| 8C-PAOHA1 | Analog Output with HART, Coated | 16 | Yes | 220 x 120 x 304.8 | 0.7 |
| 8C-PDILA1 | Digital Input 24VDC, Coated | 32 | Yes | 220 x 120 x 228 | 0.65 |
| 8C-PDODA1 | Digital Output, Coated | 32 | Yes | 220 x 120 x 228 | 0.65 |
| 8C-PDISA1 | Digital Input Sequence of Events, Coated | 32 | Yes | 220 x 120 x 228 | 0.65 |
| 8C-PAONA1 | Analog Output without HART, Coated | 16 | Yes | 220 x 120 x 304.8 | 0.7 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the 8C-TAIDA1 module?
A1: It serves as the IOTA for differential analog input processing and field wiring termination in Honeywell Series 8 systems.
Q2: Which IOM is compatible with 8C-TAIDA1?
A2: The 8C-PAIH54 is the corresponding Analog Input Module designed to be plugged into the 8C-TAIDA1.
Q3: Does the 8C-TAIDA1 support HART communication?
A3: Yes, when used with the HART-compatible 8C-PAIH54 module, it supports HART protocol.
Q4: Can this module be used in redundant applications?
A4: No, 8C-TAIDA1 is non-redundant. Use the 8C-TAIDB1 model for redundant configurations.
Q5: Is the module hot-swappable?
A5: Yes, the module supports insertion and removal under power.
Q6: What environments is it suitable for?
A6: It is coated for harsh industrial environments (G3 level protection) and certified for use in Class I, Div 2 and Zone 2 hazardous areas.
Q7: What types of input signals are supported?
A7: It supports both differential and single-ended analog signals including 1-5V and 4-20mA.
Q8: What is the physical size and weight of the module?
A8: Dimensions are 220 x 120 x 304.8 mm and weight is 0.7 kg.
