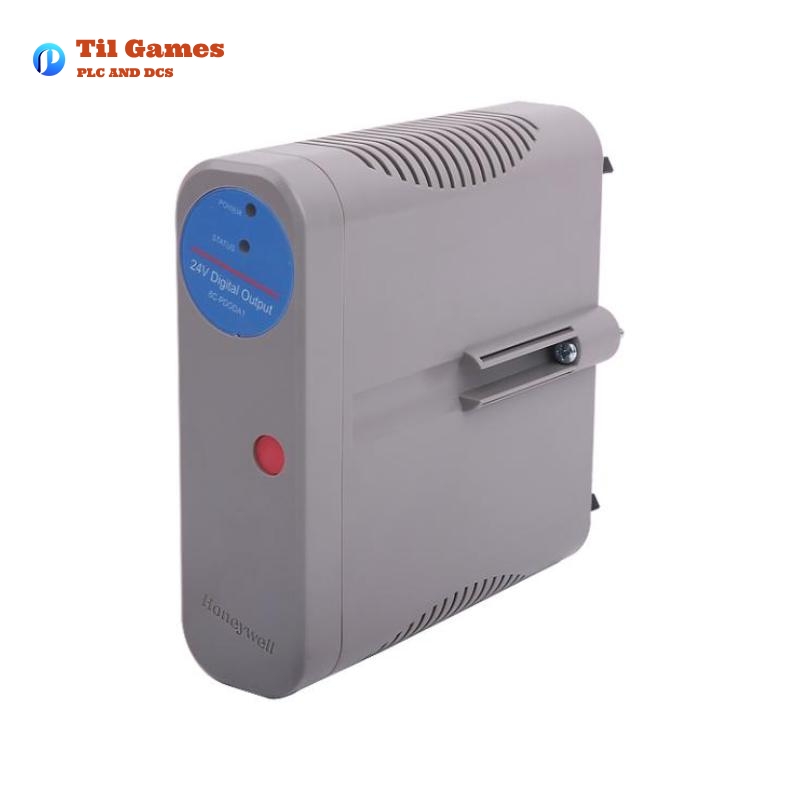

Product Overview: Honeywell 8C-PDODA1 51454472-175 Digital Output Module
The Honeywell 8C-PDODA1 51454472-175 is a high-performance Digital Output (DO) module within the Honeywell Series 8 I/O family, tailored for process automation and control in industrial environments. Designed to deliver reliable digital control, it features 32 current-sinking outputs and is typically paired with the 8C-TDODA1 IOTA for non-redundant configurations. Its G3 conformal coating makes it suitable for harsh industrial settings where dust, humidity, and corrosive environments are present.
The 8C-PDODA1 supports vertical installation with innovative heat management and robust field wiring practices, minimizing footprint and simplifying maintenance operations.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8C-PDODA1 |
| Description | Digital Output Module – 24 VDC Current Sinking |
| Output Type | Digital, Current Sinking |
| Number of Channels | 32 |
| Voltage Rating | 24 VDC |
| Output Voltage Range | 10.8 to 26.4 VDC |
| Output Current per Channel | 0.5 A max |
| Total Output Current | 8 A max per module |
| Short Circuit Protection | Yes, electronic |
| Redundancy Support | Yes (via 8C-TDODB1 IOTA) |
| Coating Type | Conformal coated (G3 Level) |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 61 x 153 x 144 mm |
| Weight | 0.3 kg |
| Insertion/Removal Under Power | Supported |
| Agency Certifications | CSA, CE, ATEX, IECEx (Class I Div 2, Zone 2, T4) |
| Mounting Orientation | Vertical |
| IOTA Compatibility | 8C-TDODA1 (Non-Redundant), 8C-TDODB1 (Redundant) |
Key Features
-
32-point current-sinking output for 24 VDC applications
-
Conformal coating for protection in G3 harsh environments
-
Short-circuit and overload protection on each output
-
Simple plug-in connection to IOTA base
-
Suitable for both single and redundant configurations
-
Easy field wiring using detachable terminal blocks
-
Maintenance-friendly design supporting hot-swapping
Advantages
-
Reduced cabinet footprint due to vertical mounting and compact design
-
High system availability through built-in redundancy support
-
Lower installation and lifecycle costs due to integrated IOTA features
-
Enhanced system safety with built-in electronic protection
-
Simplified wiring, commissioning, and diagnostics
-
Reliable performance even in harsh industrial conditions
Applications
-
Distributed Control Systems (DCS) for process industries
-
Actuator control in power plants and refineries
-
Solenoid valve control in chemical plants
-
Remote digital signal actuation in SCADA systems
-
Batch automation in pharmaceutical manufacturing
-
Machine control in discrete and hybrid manufacturing environments
Recent Technical Publication Title
-
“Honeywell Enhances Series 8 I/O with Advanced Protection Features in Experion R520 Release” (March 2022)
Related Models from the Same or Similar Series
| Model Number | Description | Channels | Function | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-PDILB1 | Digital Input Module, 24VDC, Redundant | 32 | Digital Input | 61 x 153 x 144 | 0.3 |
| 8C-PDILA1 | Digital Input Module, 24VDC, Coated | 32 | Digital Input | 61 x 153 x 144 | 0.3 |
| 8C-PAOHA1 | Analog Output Module with HART, Coated | 16 | Analog Output | 61 x 153 x 144 | 0.3 |
| 8C-PAONA1 | Analog Output Module, No HART, Coated | 16 | Analog Output | 61 x 153 x 144 | 0.3 |
| 8C-PDISA1 | Digital Input – Sequence of Events | 32 | Digital Input SOE | 61 x 153 x 144 | 0.3 |
| 8C-PDIPA1 | Digital Input – Pulse Accumulation | 32 | Pulse Accumulation Input | 61 x 153 x 144 | 0.3 |
Popular Honeywell Models
| Model Number | Description | Channels | Function | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 8C-PCNT03 | Series 8 C300 Controller | N/A | Controller Module | 61 x 153 x 144 | 0.35 |
| 8C-PAIHA1 | Analog Input with HART, Coated | 16 | Analog Input | 61 x 153 x 144 | 0.3 |
| 8C-PAIH54 | Differential Analog Input with HART | 16 | Analog Input | 61 x 153 x 144 | 0.3 |
| 8C-PAIMA1 | Low Level Analog Input (RTD/TC) | 16 | Temperature Input | 61 x 153 x 144 | 0.3 |
| 8C-PAINA1 | Analog Input (No HART) | 16 | Analog Input | 61 x 153 x 144 | 0.3 |
| 8C-TDODA1 | IOTA for Digital Output (paired with PDODA1) | 32 | Digital Output IOTA | 61 x 153 x 144 | 0.25 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the output type of the 8C-PDODA1 module?
A1: The 8C-PDODA1 provides 32 current-sinking digital outputs at 24 VDC.
Q2: Is the 8C-PDODA1 module hot-swappable?
A2: Yes, it supports insertion and removal under power, simplifying maintenance.
Q3: Can the 8C-PDODA1 module be used in redundant configurations?
A3: Yes, by pairing with the 8C-TDODB1 IOTA for redundant digital output support.
Q4: Does the module have built-in protection?
A4: Yes, it includes electronic short-circuit protection on all outputs.
Q5: What are the environmental certifications for this module?
A5: It is certified for use in Class I, Division 2, Zone 2 hazardous areas and complies with CE, ATEX, and IECEx standards.
Q6: What IOTA module is compatible with 8C-PDODA1?
A6: It is designed to be used with the 8C-TDODA1 (non-redundant) or 8C-TDODB1 (redundant) IOTAs.
Q7: What industries commonly use this module?
A7: It is widely used in oil and gas, chemicals, power generation, pharmaceuticals, and water treatment industries.
Q8: What are the physical dimensions and weight of the 8C-PDODA1 module?
A8: The module measures 61 x 153 x 144 mm and weighs approximately 0.3 kg.
