Product Description

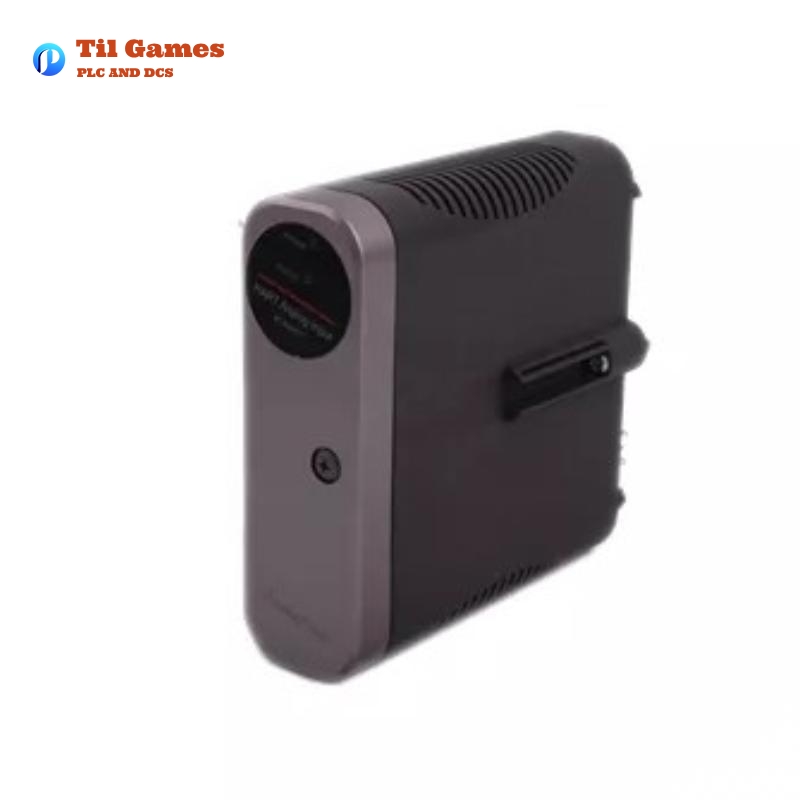

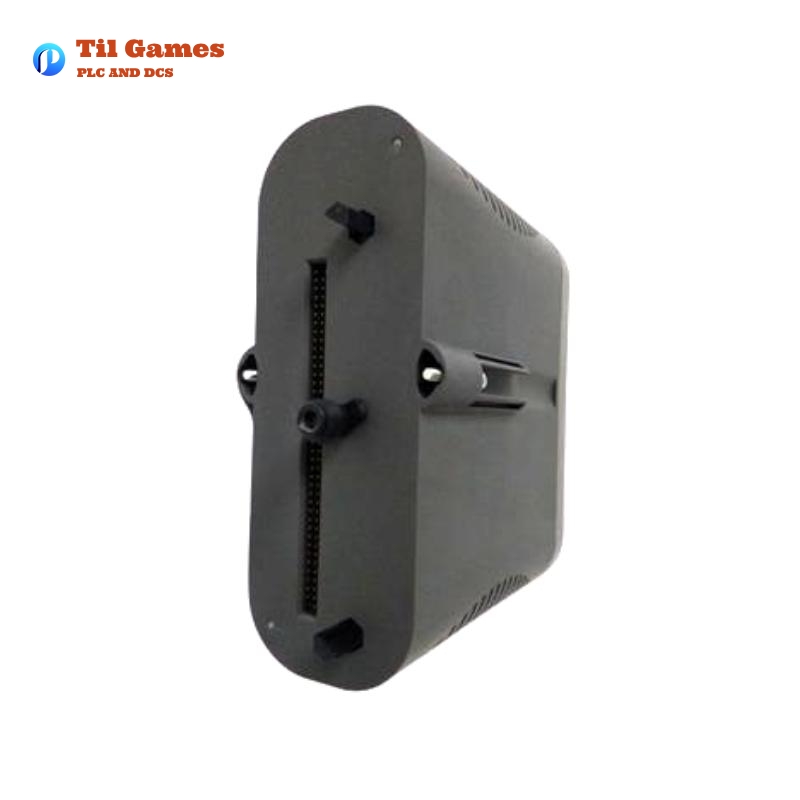

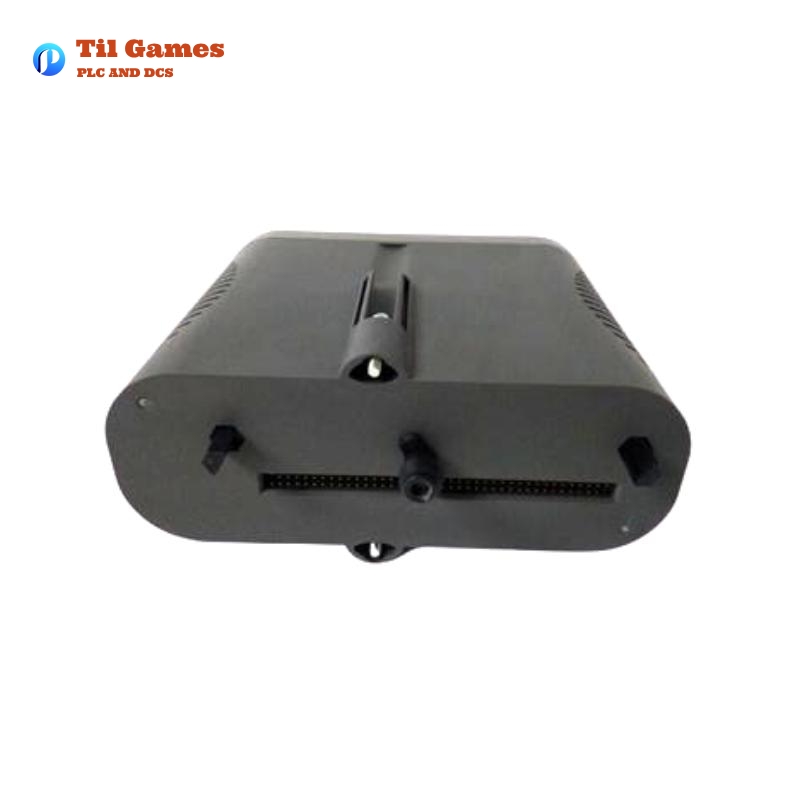

The Honeywell 8C-PCNT03 is part of the Experion Series 8 C300 controller family and represents an advanced and compact controller solution designed for process control applications within distributed control systems (DCS). This model integrates control execution, communication interfaces, and redundancy capabilities directly within the module, eliminating the need for additional interface cards or communication units.
Engineered with Honeywell’s deterministic Control Execution Environment (CEE), the C300 controller ensures high-performance control processing, robust communication across networks, and seamless integration with Series 8 I/O modules. It supports peer-to-peer communication and high availability features essential for critical infrastructure in industries such as oil and gas, refining, chemicals, and power generation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8C-PCNT03 |
| Function | Series 8 C300 Controller |
| Processor | PowerPC 8270, 400 MHz, 32-bit |
| Program Memory | 16 MB |
| Execution Rate | 50 ms to 2000 ms (configurable) |
| Control Capacity | 5500 Execution Units / 4095 Tagged Objects / 16000 Memory Units |
| Max I/O Modules | 80 modules (redundant/non-redundant) |
| Max I/O Points | 2560 |
| Supported I/O Links | 2 redundant links (750 kbps) |
| Communication Interfaces | Dual FTE (Fault Tolerant Ethernet) 100 Mbps uplinks |
| Supported Protocols | Modbus TCP/IP, Ethernet/IP, Foundation Fieldbus, Profibus via Gateways |
| Power Supply | 24 VDC |
| Mounting Type | Vertical with IOTA assembly |
| Redundancy | Yes (via second identical controller and cable 51305980-836) |
| Conformal Coating | G3 Level (ANSI/ISA S71.04) |
| Programming | Function Block Design (FBD) via Control Builder |
| Dimensions | 51 x 267 x 178 mm |
| Weight | 0.5 kg |
Key Features
-
Integrated control execution and communication module
-
Compact design compatible with Series 8 form factor and IOTA assembly
-
Supports redundant configurations for high availability
-
Peer-to-peer communication across multiple protocols
-
Native support for 80 I/O modules and 2560 I/O points
-
Function Block Programming via Experion Control Builder
-
G3-level conformal coating for harsh environment resilience
-
Module hot-swappable without system downtime
Product Advantages
-
High Performance: Fast execution cycles down to 50ms ensure real-time responsiveness.
-
Robust Networking: Dual Fault Tolerant Ethernet (FTE) uplinks offer reliable supervisory communication.
-
Scalability: Accommodates extensive I/O expansion with support for 80 I/O modules.
-
Ease of Engineering: Control Builder provides a graphical, drag-and-drop engineering environment.
-
Redundancy Ready: Built-in redundancy architecture eliminates single points of failure.
-
Harsh Environment Durability: Conformal coating protects against dust, humidity, and corrosion.
Typical Applications
-
Oil and Gas Processing Facilities
-
Chemical and Petrochemical Plants
-
Power Generation Stations
-
Pharmaceutical Manufacturing
-
Pulp and Paper Mills
-
Food and Beverage Automation Systems
-
Water and Wastewater Treatment Plants
Latest Product Report Headline
“Honeywell Expands C300 Controller Line with Enhanced Redundancy and Performance Features in 8C-PCNT03” – Technical Update Newsletter, Q4 2023
Related Honeywell Series 8 or Compatible Models
| Model Number | Description | I/O Support | Redundancy | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 8C-PCNT02 | Legacy C300 Controller | Up to 80 Modules | Yes | 51 x 267 x 178 | 0.5 kg |
| 8C-PCNT05 | C300 v5 Enhanced Controller (Non-Redundant) | Enhanced RAM | No | 51 x 267 x 178 | 0.5 kg |
| 8C-TCNTA1 | C300 I/O Termination Assembly (IOTA) | I/O Interface | N/A | Matches controller | N/A |
| 51454475-100 | RAM Charger Backup Module | Memory retention | N/A | Compact | < 0.5 kg |
| 51202330-300 | RAM Charger Cable 30” | For RAM Charger | N/A | 762 mm length | N/A |
| 51202330-200 | RAM Charger Cable 84” | For RAM Charger | N/A | 2133 mm length | N/A |
Popular Honeywell Models Across Product Lines
| Model Number | Product Type | Description | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 8C-PAOHA1 | Analog Output Module | 16 ch AO with HART, Coated | 51 x 267 x 178 | 0.5 kg |
| 8C-PAINA1 | Analog Input Module | 16 ch AI w/o HART, Single Ended, Coated | 51 x 267 x 178 | 0.5 kg |
| 8C-PAIMA1 | Low Level Analog Input Module | 16 ch RTD/TC Temp Input | 51 x 267 x 178 | 0.5 kg |
| 8C-PDILA1 | Digital Input Module | 32 ch DI, 24 VDC, Coated | 51 x 267 x 178 | 0.5 kg |
| 8C-PDODA1 | Digital Output Module | 32 ch DO, 24 VDC, Coated | 51 x 267 x 178 | 0.5 kg |
| 8C-PDISA1 | Sequence of Events Module | 32 ch DI with 1 ms SOE support | 51 x 267 x 178 | 0.5 kg |
FAQ
FAQ – Frequently Asked Questions
Q1: What communication protocols does the 8C-PCNT03 support?
A1: It supports Modbus TCP/IP, Ethernet/IP, Foundation Fieldbus (via FIM), and Profibus (via PGM), with native peer-to-peer over FTE.
Q2: Can the 8C-PCNT03 operate in a redundant configuration?
A2: Yes, by pairing two 8C-PCNT03 controllers with their IOTA and redundancy cable (part number 51305980-836).
Q3: What is the maximum number of I/O points supported?
A3: The controller supports up to 2560 I/O points using 80 I/O modules.
Q4: Is this model compatible with previous Experion releases?
A4: Yes, 8C-PCNT03 is backward-compatible with previous PC/LX releases and replaces the 8C-PCNT02.
Q5: What is the recommended power supply for the 8C-PCNT03?
A5: The module operates on 24 VDC, typically supplied via the Series 8 power system.
Q6: What tools are used to program this controller?
A6: Configuration and programming are done using Experion’s Control Builder with Function Block Diagram (FBD) logic.
Q7: Can the module be hot-swapped?
A7: Yes, the controller supports insertion and removal under power.
Q8: What are the environmental standards the product adheres to?
A8: It is compliant with ISA S71.04 G3 corrosion resistance and certified for Class I, Div 2 / Zone 2 hazardous areas.
