Series 8 C300 Controller – Product Overview

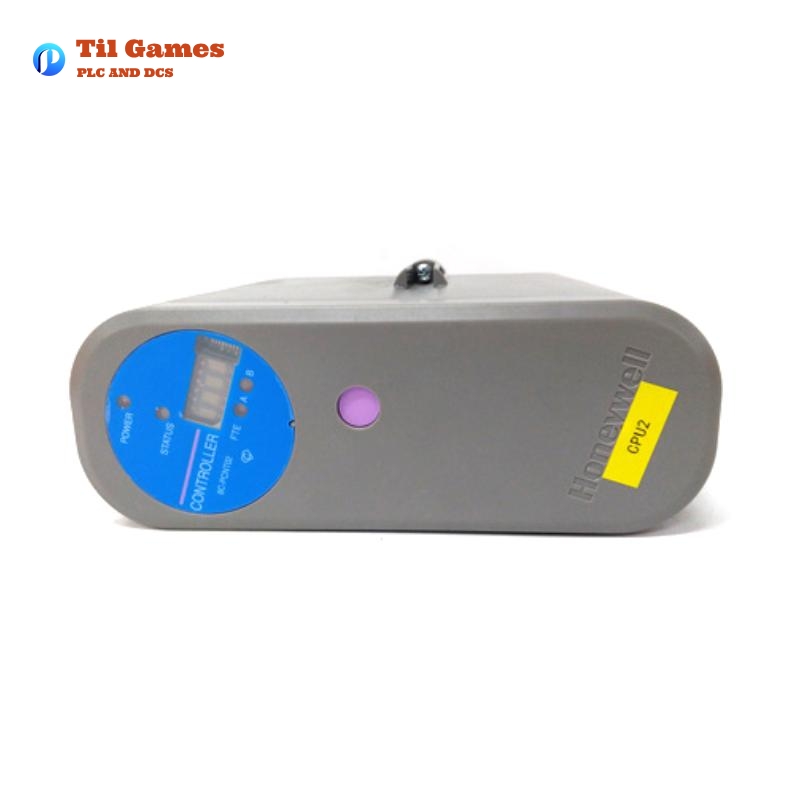

The Honeywell 8C-PCNT02 is part of the Series 8 C300 Controller family, designed to deliver robust and deterministic control in distributed control systems (DCS). It leverages the field-proven Control Execution Environment (CEE) to execute advanced control strategies, supports modular I/O connections, and offers high availability through optional redundancy.
The controller integrates seamlessly with Experion Process Knowledge Systems (PKS), enabling flexible, scalable control solutions with minimal footprint. It mounts directly onto a Series 8 I/O Termination Assembly (IOTA), offering simplified field wiring, reduced installation costs, and enhanced maintenance efficiency.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8C-PCNT02 |
| Description | Series 8 C300 Controller (Coated) |
| Processor | PowerPC 8270, 400 MHz, 32-bit |
| Program Memory | 16 MB |
| Execution Units | 5500 Execution Units |
| Tagged Objects | 4095 Objects |
| Memory Units | 16000 Memory Units |
| Execution Period | 50 ms to 2000 ms (adjustable per control strategy) |
| Supported I/O Modules | Up to 80 modules (Redundant or Non-redundant) |
| Max I/Os per Controller | 2560 points |
| Supported I/O Links | 2 (each supporting 40 I/O modules) |
| Uplink Communication | Dual Fault Tolerant Ethernet (FTE), 100 Mbps |
| Supported Protocols | Modbus TCP, Modbus RTU/ASCII (via gateway), Ethernet/IP, Foundation Fieldbus |
| RAM Retention | 50 hours (via optional rechargeable battery pack) |
| Coating | Conformal Coated (G3 standard, ANSI/ISA-S71.04) |
| Mounting Assembly | IOTA (8C-TCNTA1) |
| Power Requirement | 24 VDC |
| Current Rating | 320 mA |
| Dimensions (W x H x D) | 51 x 267 x 178 mm |
| Weight | 0.5 kg |
| Hot Swap | Supported |
| Redundancy Support | Yes (via dual modules and redundancy cable 51305980-836) |
| Certifications | Class I, Div 2, Group A-D; Zone 2, Ex nA IIC T4; CE, ATEX, CSA, IECEx |
Product Features
-
Compact Integration: Combines control and communication in a single unit without external interfaces.
-
Redundancy Ready: Supports hot standby redundancy through simple duplication and cabling.
-
Modular and Scalable: Interfaces directly with Series 8 I/O modules using two configurable I/O links.
-
Robust Execution: Field-proven Control Execution Environment (CEE) supports precise, deterministic control.
-
Advanced Engineering: Configured using the graphical Control Builder interface for intuitive design and management.
-
Enhanced Environmental Resistance: Coated with conformal material to resist harsh conditions (dust, moisture, chemicals).
-
Mountable on IOTA: Simplifies wiring and maintenance; integrates seamlessly with IOTA assemblies.
Product Advantages
-
Minimized Cabinet Space: Vertical mounting and reduced footprint compared to traditional controllers.
-
Cost Efficiency: Lower installation and maintenance costs with onboard termination and redundancy design.
-
Reliability: Engineered to operate in industrial environments with high availability.
-
High Performance: Supports high-speed peer-to-peer communication and flexible control strategies.
-
Environmental Durability: Operates within extended temperature and humidity ranges, compliant with G3 standards.
Product Applications
-
Oil & Gas Process Automation
-
Chemical and Petrochemical Plants
-
Power Generation and Utilities
-
Pulp & Paper Industries
-
Water and Wastewater Treatment Plants
-
Batch Process Control Systems
-
Safety-critical Applications in Hazardous Zones (Class I, Div 2, Zone 2)
Latest News and Reports
-
March 2022: Honeywell released the Experion R520 series update, officially replacing 8C-PCNT02 with 8C-PCNT03, providing full backward compatibility and extended support.
Related Models from Series 8
| Model | Description | Key Specs |
|---|---|---|
| 8C-PCNT03 | Newer revision of C300 Controller, Coated | Same specs with enhanced compatibility |
| 8C-TCNTA1 | IOTA for C300 Controller, Coated | Passive termination, I/O & FTE connectors |
| 51454475-100 | RAM Charger Module for Memory Backup | 50-hour retention |
| 51305980-836 | Redundancy Cable for C300 Controller | 1 per redundancy pair |
| 8C-PAOHA1 | Analog Output with HART (16pt), Coated | 4–20 mA, HART communication |
| 8C-PAINA1 | Analog Input, Single Ended (16pt), Coated | 4–20 mA, non-HART |
Popular Honeywell Models
| Model | Description | Key Specs |
|---|---|---|
| 8C-PAONA1 | Analog Output without HART (16pt), Coated | 4–20 mA output, 6” IOTA |
| 8C-PAIHA1 | Analog Input with HART, Single-Ended (16pt), Coated | 4–20 mA with HART |
| 8C-PAIH54 | Analog Input with HART, Differential (16pt), Coated | 1–5 V, 4–20 mA, Differential |
| 8C-PDILA1 | Digital Input 24VDC (32pt), Coated | 24V DC DI, 9” IOTA |
| 8C-PDODA1 | Digital Output 24VDC (32pt), Coated | Sinking DO, short circuit protection |
| 8C-PAIMA1 | Low-Level Analog Input (RTD/TC) (16pt), Coated | RTD/TC types supported |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the difference between 8C-PCNT02 and 8C-PCNT03?
A1: 8C-PCNT03 is the direct replacement for 8C-PCNT02 with the same functionality and backward compatibility.
Q2: Is the 8C-PCNT02 controller suitable for hazardous environments?
A2: Yes, it is certified for Class I, Division 2, and Zone 2 areas with T4 temperature rating.
Q3: Can the 8C-PCNT02 be used in redundant configurations?
A3: Yes, with the use of a second controller and a redundancy cable (51305980-836), full redundancy is supported.
Q4: How is the controller programmed and configured?
A4: Through the Control Builder engineering tool, which uses a graphical interface and function blocks.
Q5: What type of I/O modules are supported by the C300 controller?
A5: Series 8 I/O modules including analog, digital, HART, RTD/TC, and pulse input modules.
Q6: What is the power supply requirement for the controller?
A6: It requires a 24 VDC supply provided via the Series 8 power system.
Q7: Can the module be hot-swapped?
A7: Yes, the C300 controller supports removal and insertion under power.
Q8: What is the maximum number of I/Os supported?
A8: The controller supports up to 2560 I/O points across 80 I/O modules.
