Product Description

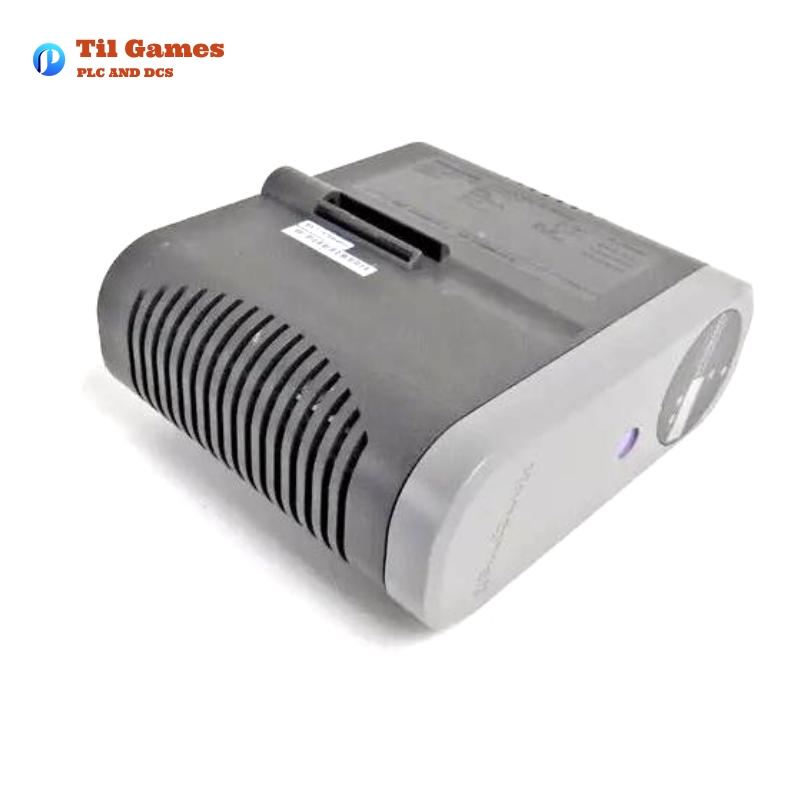

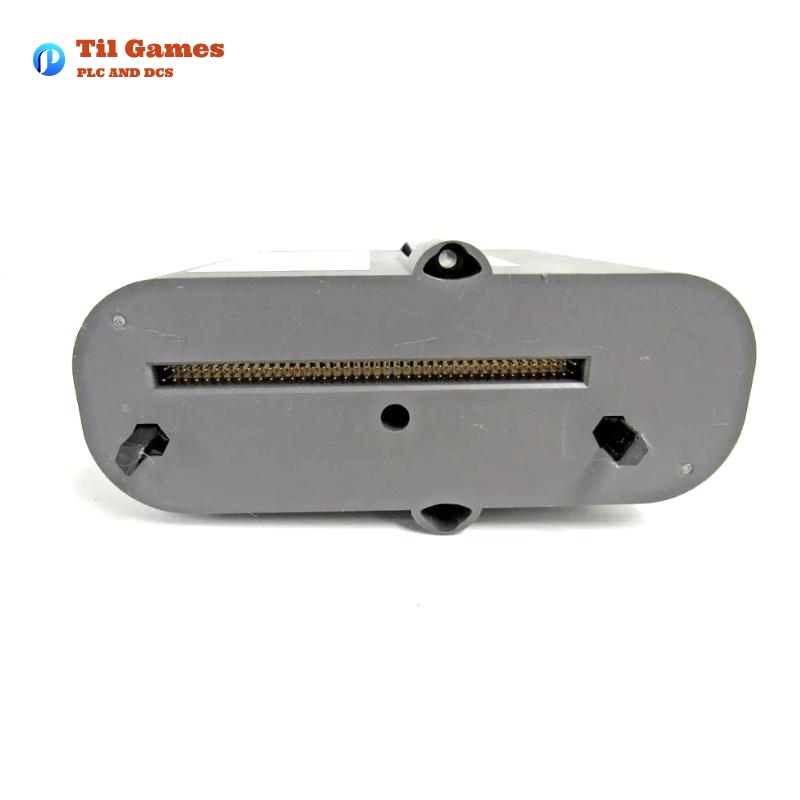

The Honeywell 8C-PCNT01 is a robust controller module forming a central component of Honeywell’s Experion® PKS C300 architecture. The C300 Controller operates on Honeywell’s deterministic Control Execution Environment (CEE), delivering precise control execution and deterministic scheduling.
Mounted on a passive Input/Output Termination Assembly (IOTA), the 8C-PCNT01 enables easy configuration via Control Builder—a unified engineering tool for strategy deployment. The unit seamlessly integrates with Series 8 I/O modules, emphasizing installation efficiency, cost reduction, and space optimization.
Redundancy support is standard through dual C300 modules with interconnecting redundancy cabling (part number 51305980-836). Custom Algorithm Blocks (CABs) allow user-defined logic for tailored applications.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 8C-PCNT01 |
| Alternate Model | CC-PCNT01 |
| Part Number | 51454363-175 |
| System | Experion PKS C300 Controller |
| Execution Environment | Control Execution Environment (CEE) |
| CEE Base Execution Period | 50 ms (standard), 20 ms (optional for TMCS only) |
| Number of I/O Links Supported | 2 |
| I/O Link Speed | 750 Kbaud (Series C I/O), 375 Kbaud (PMIO – only for 50ms) |
| Redundancy Supported | Yes (dual modules and IOTAs) |
| IOTA Address Switch | Passive FTE assignment switches |
| Supported Networks | FTE only |
| Supported IO Types | Series C (20ms), Series A and PM I/O (50ms only) |
| Execution Period Options (CM/SCM/RCM) | 50 to 60000 ms (50ms); 20 to 800 ms (20ms) |
| Peer Update Rate Options | 100, 200, 500, 1000 ms |
| Time Source | SNTP, PTPv2 |
| Redundancy Cable Options | 36, 48, 60, 84 inches |
| Sync Time (Redundancy) | 240 seconds |
| Dimensions (W x H x D) | 51 x 267 x 178 mm |
| Weight | 0.5 kg |
Key Features
-
Operates with Honeywell’s deterministic CEE
-
Supports CABs (Custom Algorithm Blocks)
-
Compatible with Series 8 I/O for space-saving architecture
-
Redundant module capability
-
Comprehensive integration with Experion engineering tools
-
Mounts on a passive IOTA for simplified installation
-
Configurable execution periods and I/O support
Advantages
-
Deterministic Control: Ensures consistent timing and performance for mission-critical applications.
-
Redundancy Support: Provides fail-safe operations via dual controller configuration.
-
Engineering Efficiency: Unified Control Builder environment simplifies strategy design and deployment.
-
Flexible Execution Options: Supports 50 ms and 20 ms cycles based on application need.
-
Cost Reduction: Integrated design minimizes wiring, cabinet space, and maintenance overhead.
-
CAB Support: Enables tailored control logic development beyond standard function blocks.
Applications
-
Oil and Gas process automation
-
Power generation and turbine control systems
-
Chemical and Petrochemical industries
-
Pharmaceutical and life sciences process control
-
Pulp and paper production control
-
Water and wastewater treatment plants
-
Complex manufacturing systems requiring deterministic control
Latest Product Report Title
Experion PKS C300 Controller Capacity | Technical Information | Document ID: EP03-300-511 | Version 1 | July 2019
Recommended Related Models (Same Series or Closely Related)
| Model | Part Number | Description | Execution Period | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| CC-PCNT02 | 51308386-175 | Enhanced C300 Controller (supports EIM) | 50 ms | 51 x 267 x 178 | 0.5 kg |
| 8C-TAIX51 | 51454352-175 | Analog Input Module (Series 8) | – | 36 x 230 x 130 | 0.4 kg |
| 8C-PAIMA1 | 51454473-175 | HART Analog Input Module | – | 36 x 230 x 130 | 0.4 kg |
| 8C-PAONA1 | 51454469-175 | Analog Output Module | – | 36 x 230 x 130 | 0.4 kg |
| 8C-PCNT02 | 51308386-175 | Advanced Control and Network Interface | 50 ms | 51 x 267 x 178 | 0.5 kg |
| 8C-PDODA1 | 51454470-175 | Digital Output Module | – | 36 x 230 x 130 | 0.4 kg |
Recommended Honeywell Popular Models
| Model | Part Number | Description | System | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| CC-TDIL01 | 51305900-175 | Digital Input Module | Safety Manager | 52 x 267 x 178 | 0.5 kg |
| CC-TDOR01 | 51305859-175 | Digital Output Module | Safety Manager | 52 x 267 x 178 | 0.5 kg |
| CC-PDOB01 | 51308386-175 | Digital Output for PMIO | C300 | 52 x 267 x 178 | 0.5 kg |
| CC-PAIH01 | 51405038-175 | Analog Input Module | C300 | 52 x 267 x 178 | 0.5 kg |
| CC-PAOH01 | 51405039-175 | Analog Output Module | C300 | 52 x 267 x 178 | 0.5 kg |
| CC-PCF901 | 51308301-175 | Control Firewall Module | Experion Network | 52 x 267 x 178 | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What control environments does the 8C-PCNT01 operate under?
A1: The 8C-PCNT01 functions within Honeywell’s Control Execution Environment (CEE), supporting 50 ms standard and optional 20 ms for high-speed control.
Q2: Does the 8C-PCNT01 support redundant configurations?
A2: Yes, it supports redundancy using dual modules and IOTAs connected by a redundancy cable.
Q3: Is the 8C-PCNT01 compatible with non-Series C I/O?
A3: It supports PM I/O and Series A I/O only under 50 ms configuration. The 20 ms mode is restricted to Series C I/O.
Q4: Can Custom Algorithm Blocks (CABs) be used on this controller?
A4: Yes, CABs are supported, allowing for user-defined logic and data structures.
Q5: What is the mounting configuration for this controller?
A5: It mounts on a passive C300 IOTA, which includes FTE address switches.
Q6: Is the 8C-PCNT01 suited for high-speed applications like turbine control?
A6: For turbine applications requiring 20 ms, the 8C-PCNT01 supports this configuration but must be licensed separately.
Q7: What are the communication protocols supported?
A7: The controller communicates over Fault Tolerant Ethernet (FTE) using SNTP or PTPv2 for time synchronization.
Q8: What is the maximum number of I/O Units supported?
A8: It supports up to 64 I/O Units under normal configuration or up to 80 when using only PMIOs or Series C IOMs.
